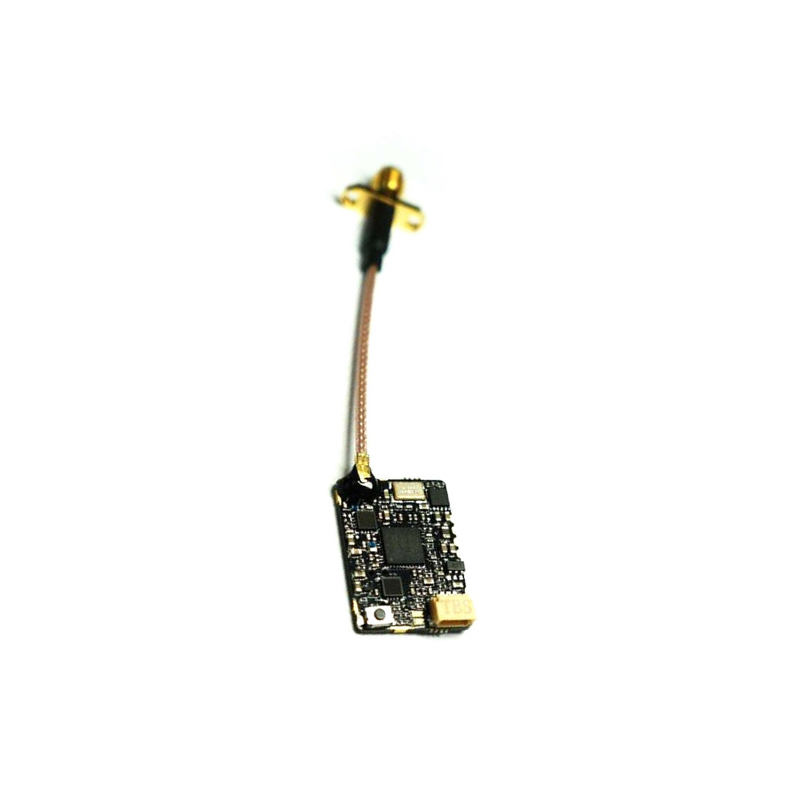

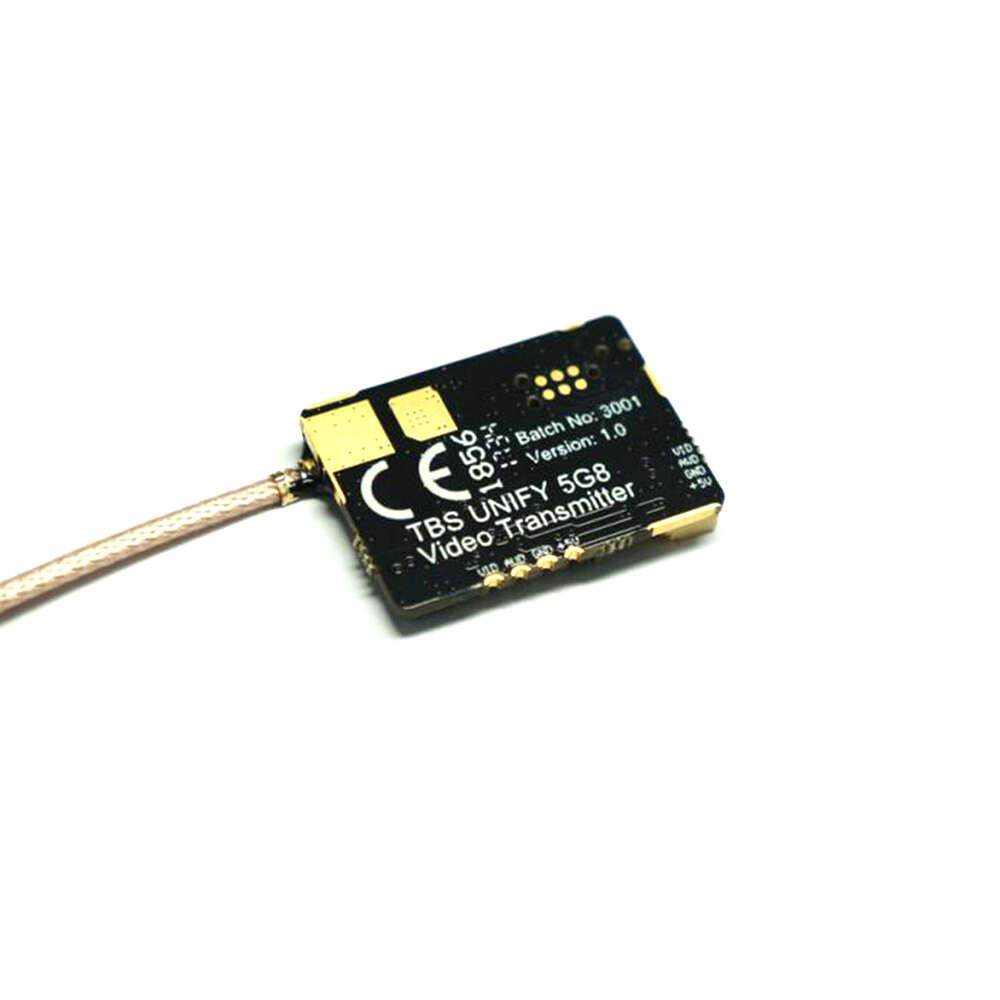

TBS TBS Unify Pro 5G8 V3 Video Transmitter - SMA
The TBS Unify Pro 5G8 V3 is a compact, high-power 5.8GHz video transmitter designed for FPV racing and freestyle drones, featuring up to 800mW output, PitMode, and clean power filtering for interference-free video feeds compatible with Betaflight and INAV flight controllers.
Features
- Ultra-compact and lightweight 5.8GHz video transmitter with SMA connector.
- Delivers up to 800mW of output power across multiple selectable levels (25mW, 200mW, 500mW, 800mW).
- Features PitMode for safe power-up in race environments and ultra-clean RF output for multi-pilot events.
- Operates on a filtered 5V supply (4.5-5.5V), ideal for integration with TBS CORE PRO or PowerCube.
- Supports NTSC/PAL video formats with 6.5MHz audio carrier and offers easy OSD/FC channel control.
Out of stock
The TBS Unify Pro 5G8 V3 sets a benchmark for performance-to-size ratio in the FPV video transmitter market. Its robust RF amplifier and advanced filtering ensure a stable, interference-free video link even in dense multi-pilot environments, supporting up to 16 pilots simultaneously. The unit is engineered for reliability, with a design that allows operation without an antenna for extended periods without damage.
Integration is streamlined through direct connectivity with flight controllers, enabling channel and power level changes via OSD or RC commands, with a physical button providing a manual fallback. The 5V filtered input makes it a perfect match for modern FPV power systems, minimizing video noise and ensuring consistent performance from 4S to 6S LiPo setups when used with a compatible 5V BEC.
Additional Information

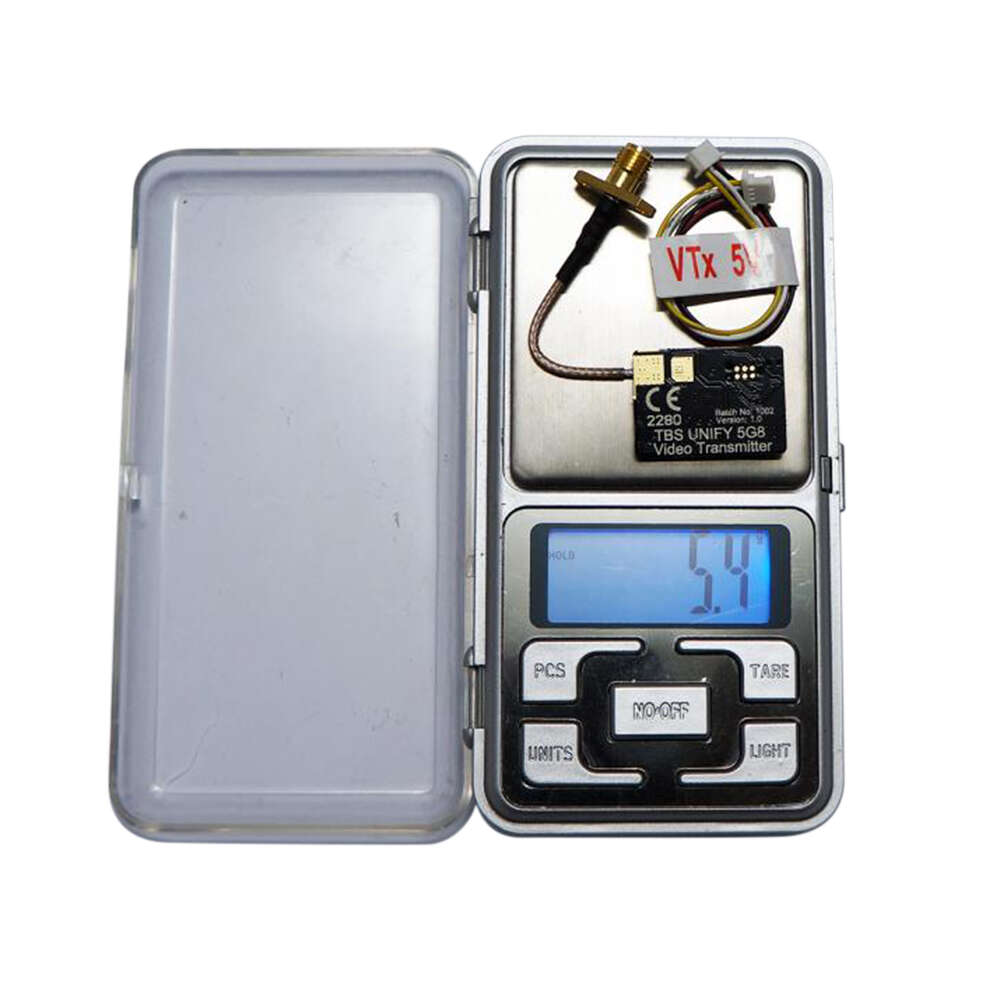

| Weight | 0.013 kg |
|---|---|
| Dimensions | 12 × 12 × 1 cm |
