T48 Universal Programmer (TL866-3G) Kit w/ 6 Adapters
T48 Universal Programmer (TL866-3G) Kit w/ 6 Adapters - Image 2
T48 Universal Programmer (TL866-3G) Kit w/ 6 Adapters - Image 3
SKU: SBCD-0797
📋 GST Invoice Available

T48 Universal Programmer (TL866-3G) Kit w/ 6 Adapters

₹6,129.00 (Inclusive of all taxes)
Out of Stock

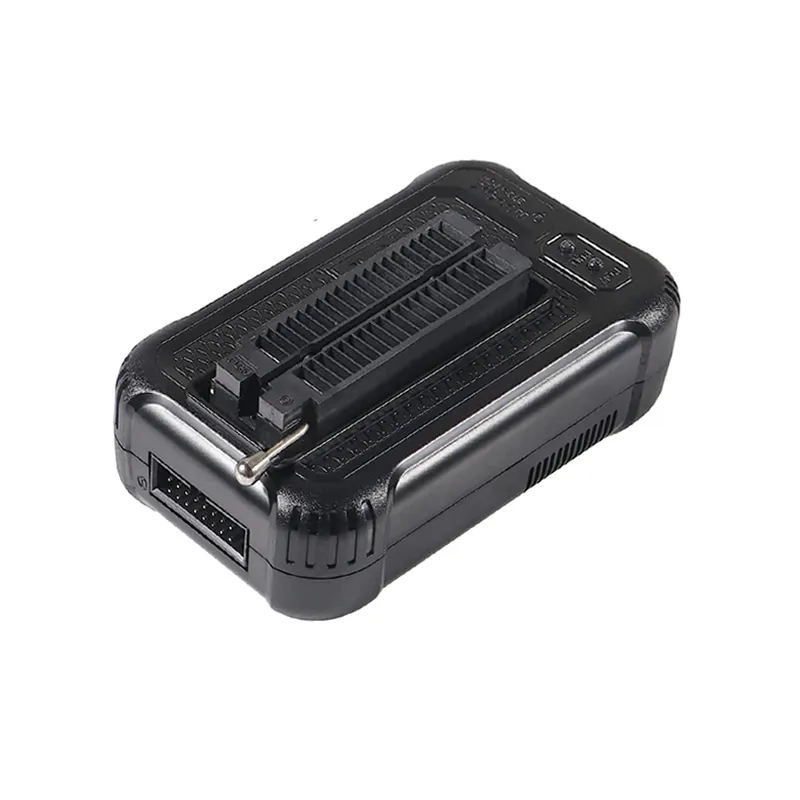

The T48 (TL866-3G) Universal Programmer is an advanced iteration of the TL866II Plus, featuring a 32-bit MCU, 4-layer PCB design, and USB2.0 HS for rapid programming. It supports a wide array of ICs, including high-capacity NAND EMMC up to 256GB, and offers adjustable VCC (1.8-6.5V) and VPP (9-25V) voltages for broad compatibility.

Features

  • Newest T48 (TL866-3G) model, enhanced over TL866II Plus for faster performance.
  • Equipped with a 32-bit MCU (120MHz) and 4-layer PCB for stable, high-speed operation.
  • Supports high-capacity NAND EMMC up to 256GB, EMMC/EMCP, P-NAND, and various MCUs.
  • Adjustable VCC (1.8-6.5V) and VPP (9-25V) voltages, ideal for high-voltage chip programming.
  • Features a 40-pin industrial high-quality ZIF socket for easy IC insertion and replacement.

Out of stock

Description

The T48 Universal Programmer, designated TL866-3G, represents a significant upgrade from the popular TL866II Plus, designed for professional use in embedded systems development and repair. This programmer is built around a robust 32-bit MCU clocked at 120MHz and features a 4-layer PCB, ensuring superior stability and high-speed data transfer via its USB2.0 HS (480MHz) interface. It is specifically engineered to handle the demands of modern IC programming, including large-capacity NAND EMMC devices up to 256GB, offering substantially faster programming speeds compared to its predecessor.

Featuring a durable 40-pin industrial high-quality ZIF (Zero Insertion Force) socket, the T48 allows for effortless insertion and removal of various chip packages. Its advanced voltage control capabilities enable VCC adjustments from 1.8V to 6.5V and VPP (programming voltage) from 9V to 25V, both with 64 levels of fine-tuning, making it compatible with a wide range of standard and high-voltage chips that previous models could not support. The comprehensive software interface offers multi-language support and automatic driver installation across a broad spectrum of Windows operating systems, providing a unified and user-friendly experience for all programming tasks.

Key Features

  • Advanced 32-bit MCU with 120MHz clock speed and 4-layer PCB design for optimal performance.
  • USB2.0 HS (480MHz) connectivity ensures fast and reliable data transfer during programming.
  • Supports a broad spectrum of devices including NAND EMMC (up to 256GB), EMMC/EMCP, P-NAND, SPI NAND FLASH, GAL PLD, and various 51/PIC/AVR/27/28/29/39/49/50 series MCUs.
  • 40-pin industrial high-quality ZIF socket (pluggable/replaceable) for easy and secure chip handling.
  • Adjustable VCC voltage from 1.8V to 6.5V (64 levels) and VPP voltage from 9V to 25V (64 levels) for wide chip compatibility, including high-voltage devices.
  • Integrated 16-channel ISP and 56-channel high-speed high-voltage isolation for robust operation.
  • Offers significantly faster programming speeds for various memory types, improving workflow efficiency.
  • User-friendly multi-language software interface with automatic updates and broad Windows OS compatibility.
  • Includes a logic IC visual test function for device verification.

Applications

  • Programming high-capacity NAND EMMC and EMCP devices.
  • Flashing P-NAND and SPI NAND FLASH memory chips.
  • Development and debugging for 51/PIC/AVR series microcontrollers.
  • Reprogramming GAL PLD (Generic Array Logic Programmable Logic Devices).
  • Data recovery and repair of embedded systems requiring IC reprogramming.

Technical Specifications

SoC/MCU32-bit MCU @ 120MHz
USB InterfaceUSB2.0 HS (480MHz)
Socket40-pin Industrial ZIF Socket
Supported MemoryNAND EMMC (up to 256GB), EMMC/EMCP, P-NAND, SPI NAND FLASH
Supported MCUs51/PIC/AVR, 27/28/29/39/49/50 series
VCC Voltage1.8V - 6.5V (64 levels adjustable)
VPP Voltage9V - 25V (64 levels adjustable)
ISP Channels16
Dedicated I/O56 channels
Isolation56-channel high-speed high-voltage isolation
Power Consumption5V < 500mA
Dimensions10 cm x 6.5 cm x 2.8 cm
Supported OSWindows XP, 2003, 2008, Vista, Win7, Win8, Win10, Win11

Frequently Asked Questions

What types of ICs can the T48 Universal Programmer program?

The T48 programmer supports a wide range of devices including high-capacity NAND EMMC up to 256GB, EMMC/EMCP, P-NAND, SPI NAND FLASH, GAL PLD, and various microcontroller series such as 51, PIC, and AVR. Its versatile voltage settings ensure broad compatibility with modern and legacy chips.

What are the key improvements of the T48 over the TL866II Plus?

The T48 (TL866-3G) features a more powerful 32-bit MCU at 120MHz, a 4-layer PCB design for enhanced stability, and significantly faster programming speeds. Crucially, it supports VPP voltages up to 25V, allowing it to program high-voltage chips that the TL866II Plus cannot handle.

What software and operating system compatibility does the T48 programmer offer?

The T48 programmer utilizes a unified, easy-to-use multi-language software interface. It automatically detects and installs software drivers for a broad range of Windows operating systems, including XP, 2003, 2008, Vista, Win7, Win8, Win10, and Win11, ensuring wide accessibility.

Can the T48 programmer handle chips requiring specific voltage levels?

Yes, the T48 offers highly adjustable voltage parameters. The VCC voltage can be set from 1.8V to 6.5V in 64 levels, and the VPP (programming voltage) from 9V to 25V, also with 64 levels. This fine-grained control ensures proper programming for various IC voltage requirements.

What kind of socket does the T48 use for IC insertion?

The T48 programmer is equipped with a high-quality 40-pin industrial ZIF (Zero Insertion Force) socket. This design allows for easy, safe, and repeated insertion and removal of various IC packages without causing damage to the chip leads, which is essential for frequent programming tasks.

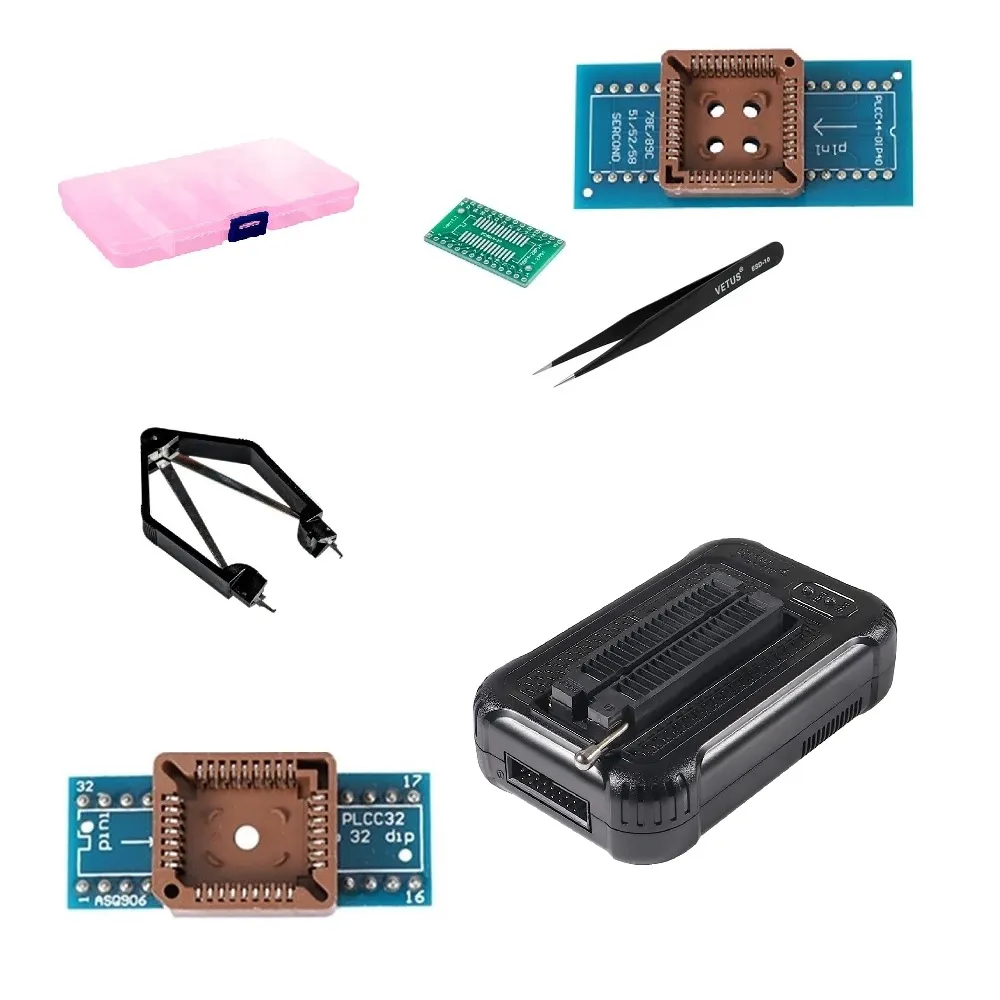

Package Includes

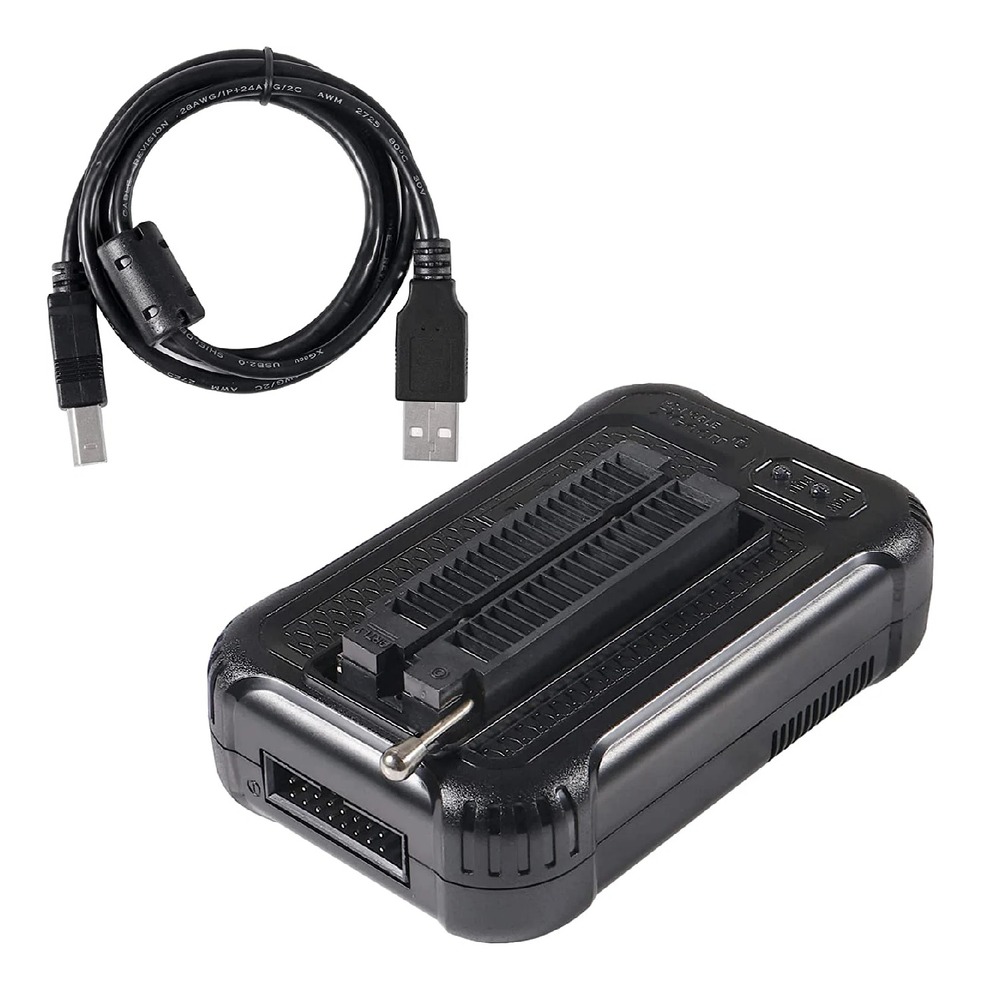

  • 1 x T48 Universal Programmer (TL866-3G)
  • 1 x USB cable (Type A to B)
  • 1 x TY-610 PLCC IC Chip Extractor/Puller
  • 1 x HRC-40 Adapter
  • 1 x Plastic transparent IC Storage Box (13cm x 6.5cm) with 10 adjustable Grids
  • 3 x Different IC Socket Adapters

Additional Information

Weight 0.446 kg
Dimensions 10 × 6.5 × 2.8 cm
