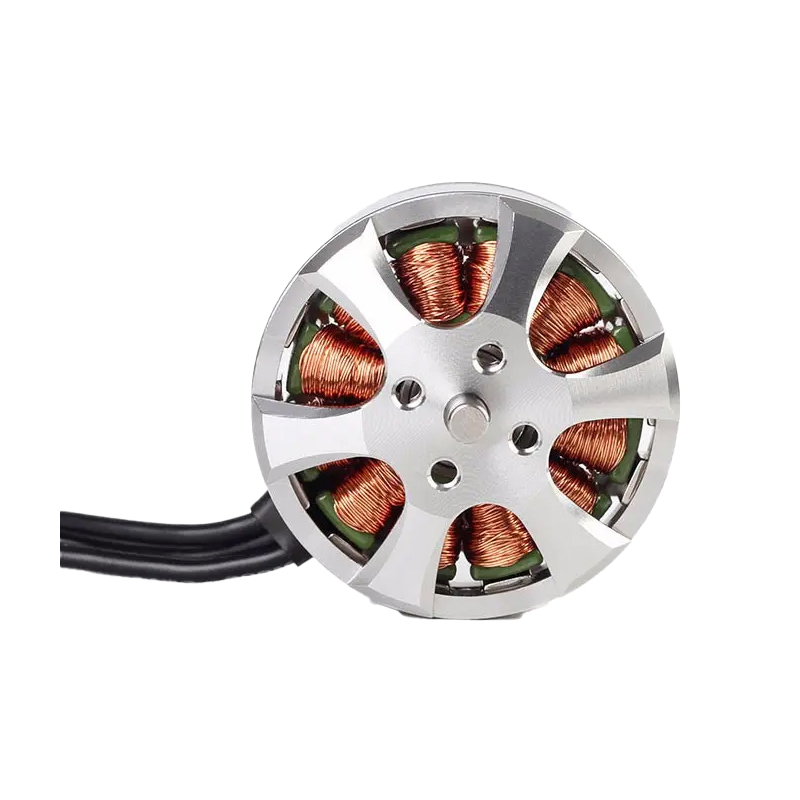

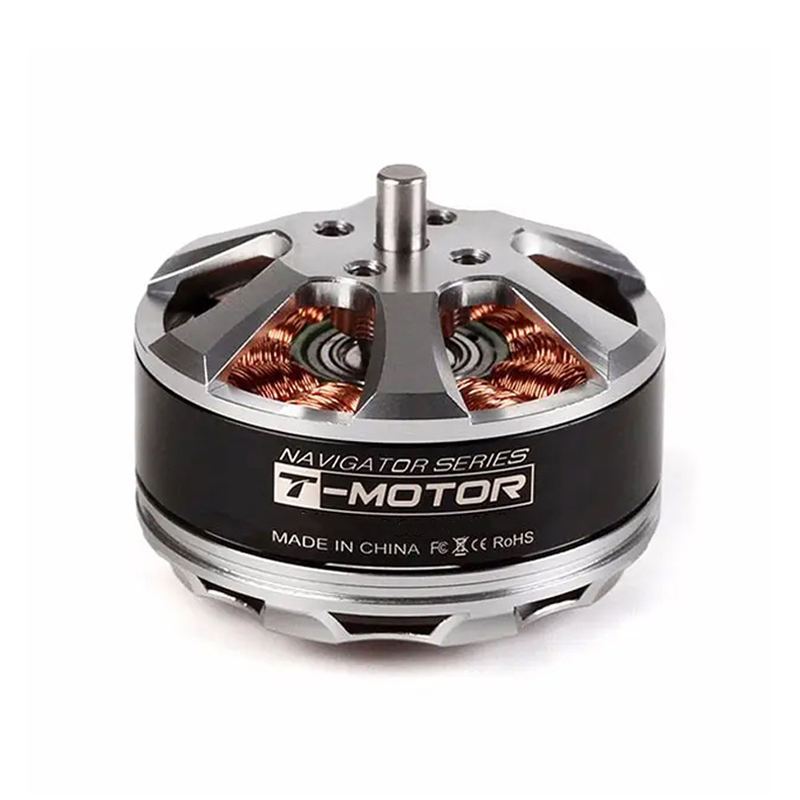

T-Motor Navigator MN3508 580KV Brushless Motor
The T-Motor Navigator MN3508 580KV brushless motor is engineered for industrial UAVs and heavy-lift multirotors, delivering high torque and stable operation on 3S to 4S LiPo battery systems.
Features
- 580KV rating optimized for 3S-4S LiPo voltage and high-torque propeller loads.
- High-strength construction with EZO bearings for smooth operation and extended lifespan (MTBF ~1000 hours).
- Delivers up to 1.8kg of thrust per motor, suitable for demanding aerial photography and payload applications.
- 12N14P magnetic design and 4mm shaft diameter ensure reliable power transmission and mechanical durability.
- Officially optimized for use with T-Motor P15*5 propellers for balanced flight performance.
Out of stock
The T-Motor Navigator MN3508 580KV motor is a precision-engineered component designed for reliability in commercial and industrial UAV platforms. Its 12N14P stator configuration and low internal resistance (110mΩ) provide efficient power conversion and thermal management, enabling continuous operation at up to 18A current draw. The motor’s robust construction prioritizes longevity, with high-grade EZO bearings contributing to a mean time between failures (MTBF) of approximately 1000 hours.
Engineered for stability at low RPMs, the MN3508 is ideal for applications requiring smooth, controlled flight, such as aerial mapping, inspection, and VTOL (Vertical Take-Off and Landing) systems. Its 41.8mm diameter and 103g weight offer a favorable power-to-weight ratio, making it a cornerstone for builders of heavy-lift hexacopters and octocopters where consistent, reliable thrust is paramount.
Additional Information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 4 × 4 × 3 cm |
