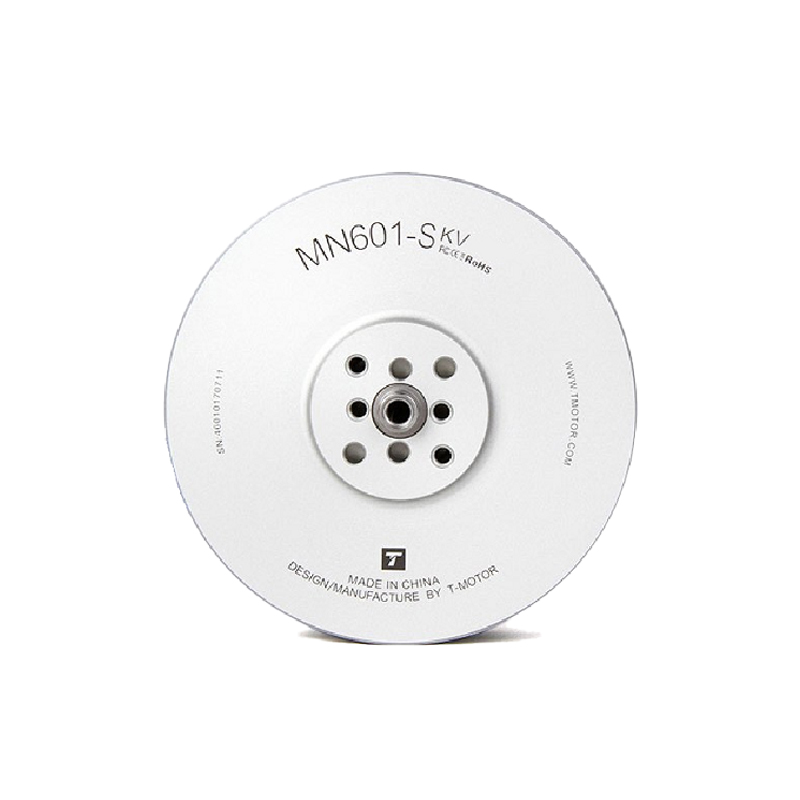

T-Motor MN601-S KV320+Alpha 60A LV (Inbuild ESC) CCW Motor
The T-Motor MN601-S KV320+Alpha 60A LV is an integrated motor and ESC unit designed for heavy-lift and industrial UAVs. This CCW rotation motor operates on 6S LiPo voltage and delivers 1200W of peak power, offering a high-performance propulsion solution for demanding aerial platforms.
Features
- Integrated Alpha 60A LV ESC for seamless power control and simplified wiring.
- KV320 rating optimized for 6S LiPo voltage and high-torque applications.
- Peak power output of 1200W (180s) and peak current of 60A (10s).
- Designed for counterclockwise (CCW) rotation in multirotor configurations.
- Robust construction with a weight of 246g for industrial-grade durability.
Out of stock
The T-Motor MN601-S KV320+Alpha 60A LV combines a high-torque brushless motor with a dedicated electronic speed controller in a single, integrated package. This design eliminates external ESC wiring, reducing points of failure and simplifying installation in complex industrial UAV frames. The motor’s KV320 rating is specifically tuned for 6S LiPo batteries, providing the optimal balance of rotational speed and torque for heavy-lift and enterprise-grade drones.
Engineered for reliability, the integrated Alpha 60A LV ESC features robust power MOSFETs and advanced thermal management to handle sustained high-current loads. The unit is built to withstand the vibrations and environmental stresses typical in professional aerial surveying, inspection, and cargo delivery applications, ensuring consistent performance and long-term operational stability.
Additional Information
| Weight | 0.246 kg |
|---|---|
| Dimensions | 3.25 × 7.13 × 1.59 cm |
