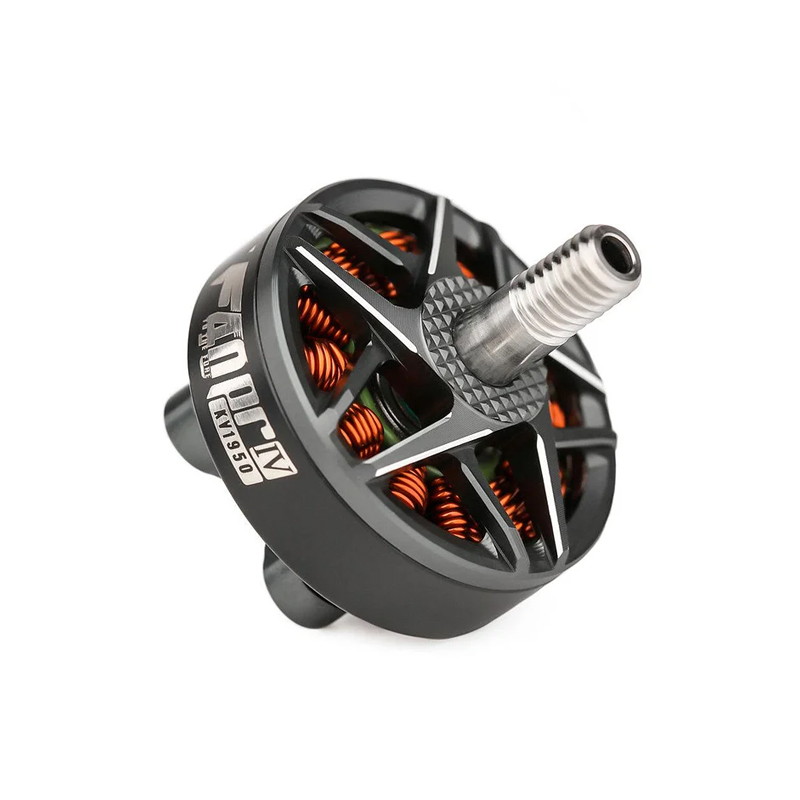

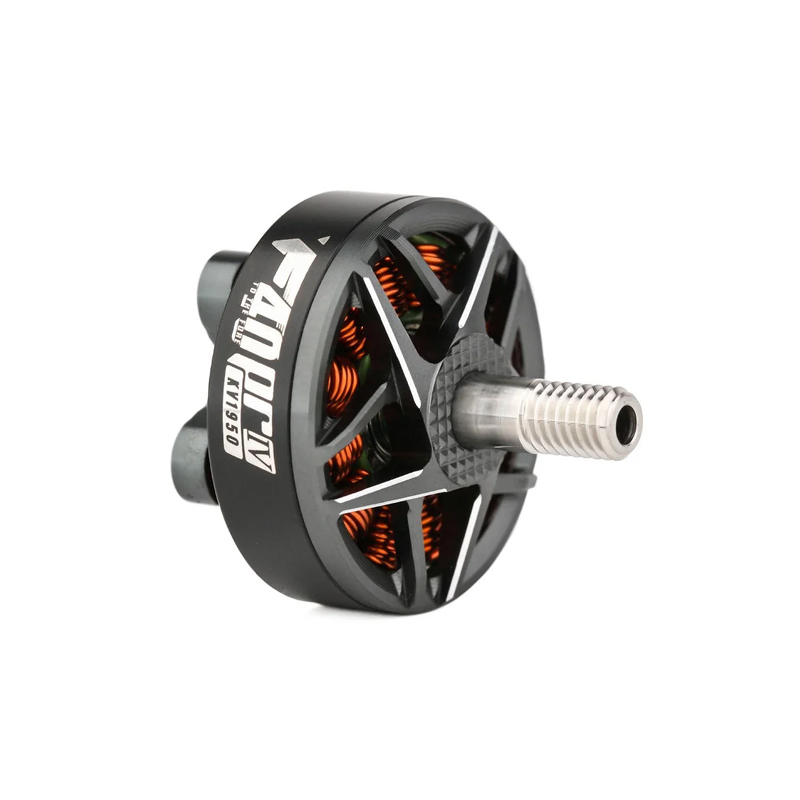

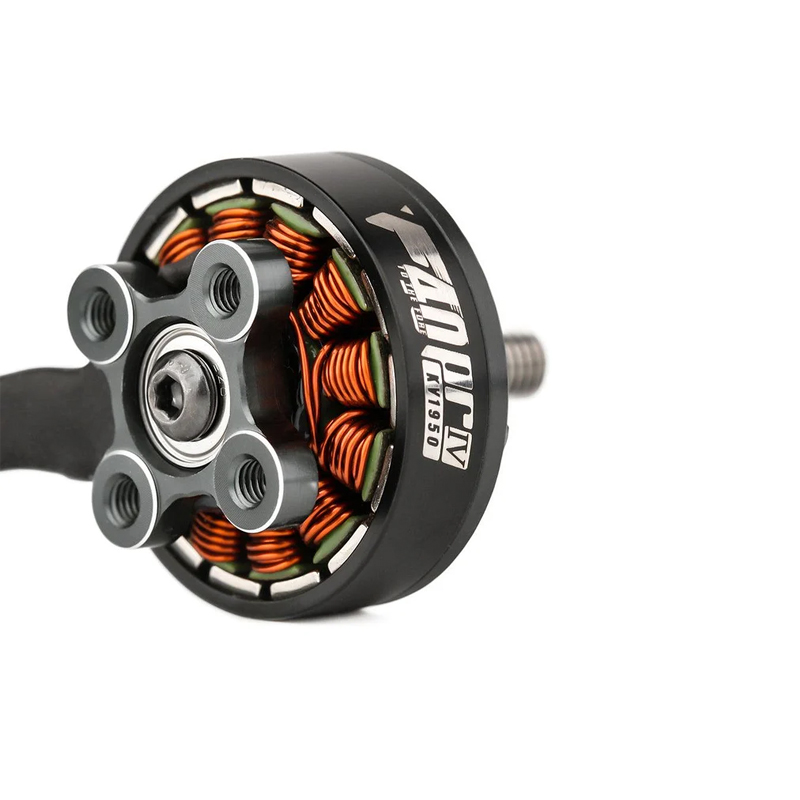

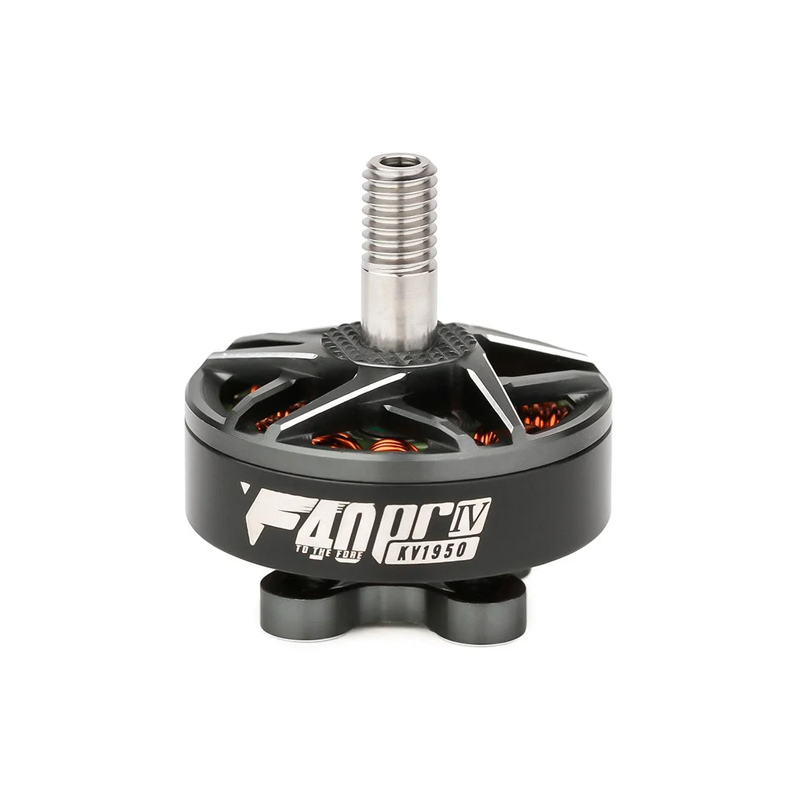

T-Motor F40PRO IV FPV Racing Motor 4-6S 1950KV - Blue
The T-Motor F40PRO IV is a high-performance 1950KV brushless motor engineered for 5-inch FPV racing and freestyle drones, supporting 4S to 6S LiPo batteries for exceptional thrust and agility.
Features
- 1950KV rating optimized for 4S-6S LiPo power on 5-inch racing drones.
- Lightweight 30.8g design with a 12N14P stator configuration for high power-to-weight ratio.
- Features a durable 4mm titanium shaft and 20AWG silicone wires for robust performance.
- Peak current handling of 42A (60s) and maximum power output of 1012W.
- Compatible with T-Motor F55A PRO II ESCs and T5146/T5147 propellers.
Out of stock
The T-Motor F40PRO IV represents a refined generation of FPV racing motors, building upon the legacy of the F40 PRO series with a 9% weight reduction. Its engineering focuses on minimizing rotational mass and internal energy loss through optimized pinholes and high-grade silicon steel laminations, resulting in faster throttle response and improved efficiency.
Designed for the demands of competitive racing and aggressive freestyle, the motor maintains stable performance and high-temperature tolerance during sustained full-throttle maneuvers. The integration of a titanium shaft and custom silicone lead wires ensures durability against physical impacts and electrical stress, providing a reliable foundation for high-speed builds.
Additional Information
| Weight | 0.0308 kg |
|---|---|
| Dimensions | 2.79 × 2.98 cm |
