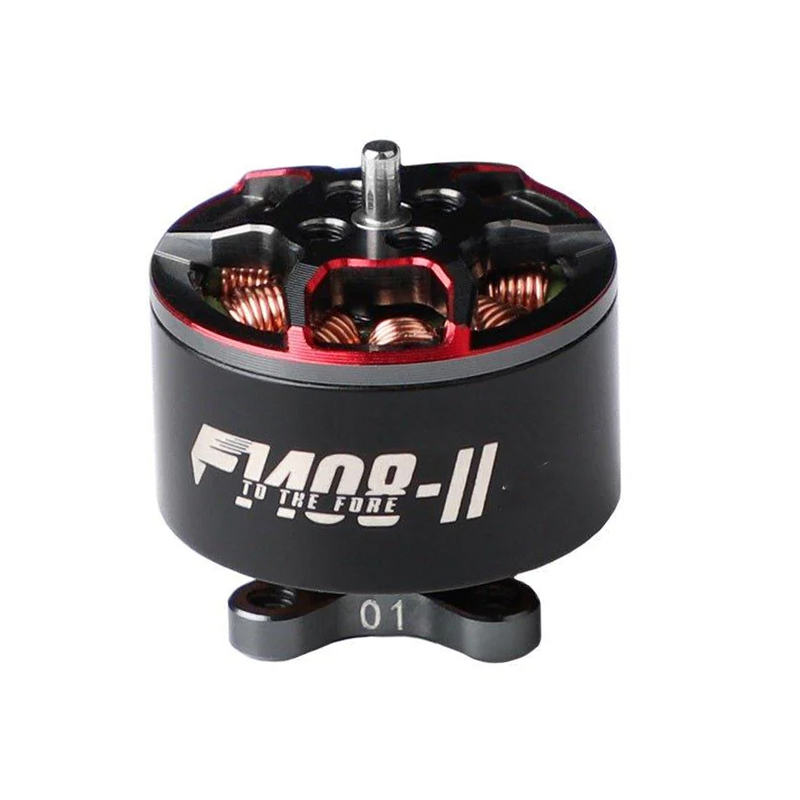

T-Motor F1408 KV3950 Drone Motor
The T-Motor F1408 KV3950 is a high-performance brushless motor engineered for 3-4 inch CineWhoop FPV drones, offering explosive power and fast throttle response on 3S-4S LiPo battery systems.
Features
- 3950 KV rating optimized for high-RPM performance on 3-4S LiPo batteries.
- Lightweight CNC aluminum construction weighing only 12.75 grams.
- Delivers up to 734 grams of peak thrust and 371W maximum power.
- Features a T-Mount system with a 2mm shaft for broad propeller compatibility.
- 9N12P magnetic design for smooth operation and enhanced efficiency.
Out of stock
The T-Motor F1408 KV3950 is a precision-engineered brushless motor designed for demanding CineWhoop and micro FPV applications. Its compact 17.9mm diameter and ultralight CNC aluminum housing minimize weight while maximizing structural integrity and heat dissipation, critical for sustained high-performance flight.
With a 3950 KV rating, the motor provides the high rotational speed necessary for agile, responsive control in tight spaces, perfectly matched to 3-4 inch ducted propeller setups. The 9N12P (9 stator slots, 12 magnet poles) configuration ensures smooth, efficient power delivery and excellent low-RPM torque, translating to stable hover and precise cinematic maneuvers.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 3 × 3 × 2 cm |
