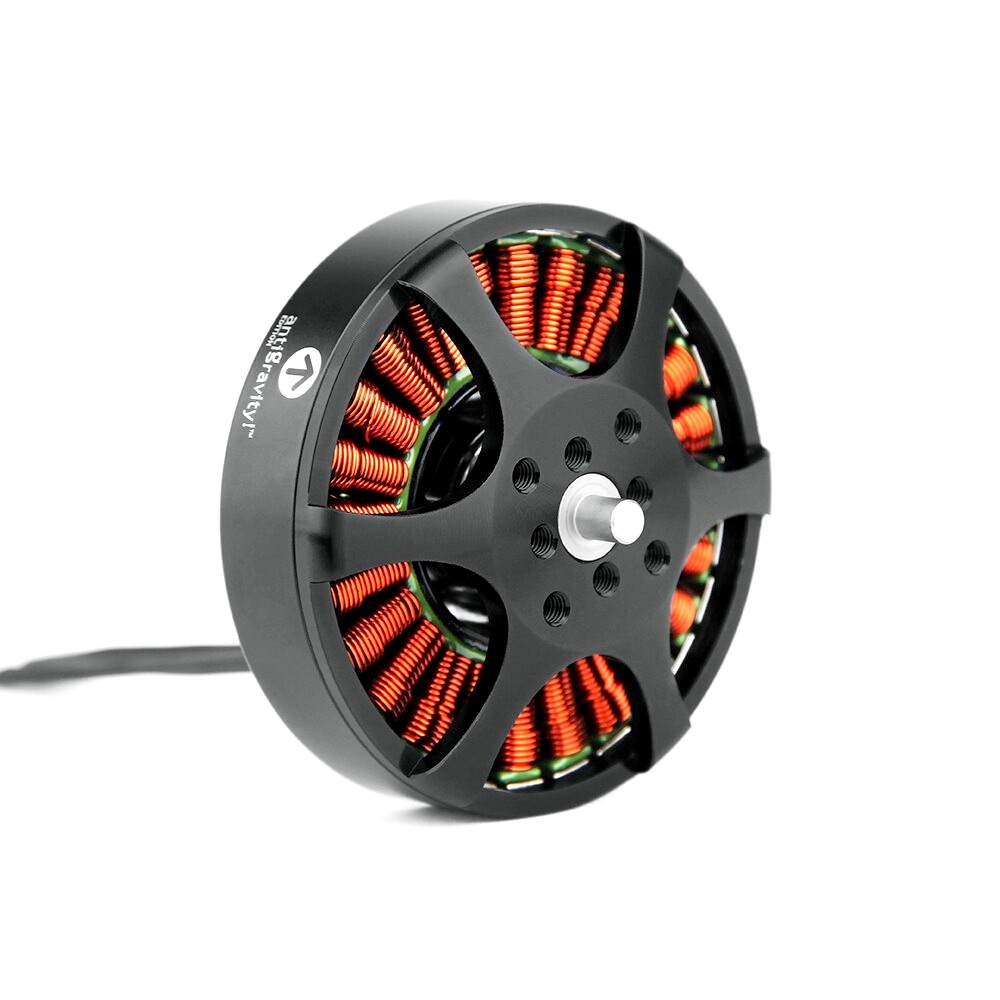

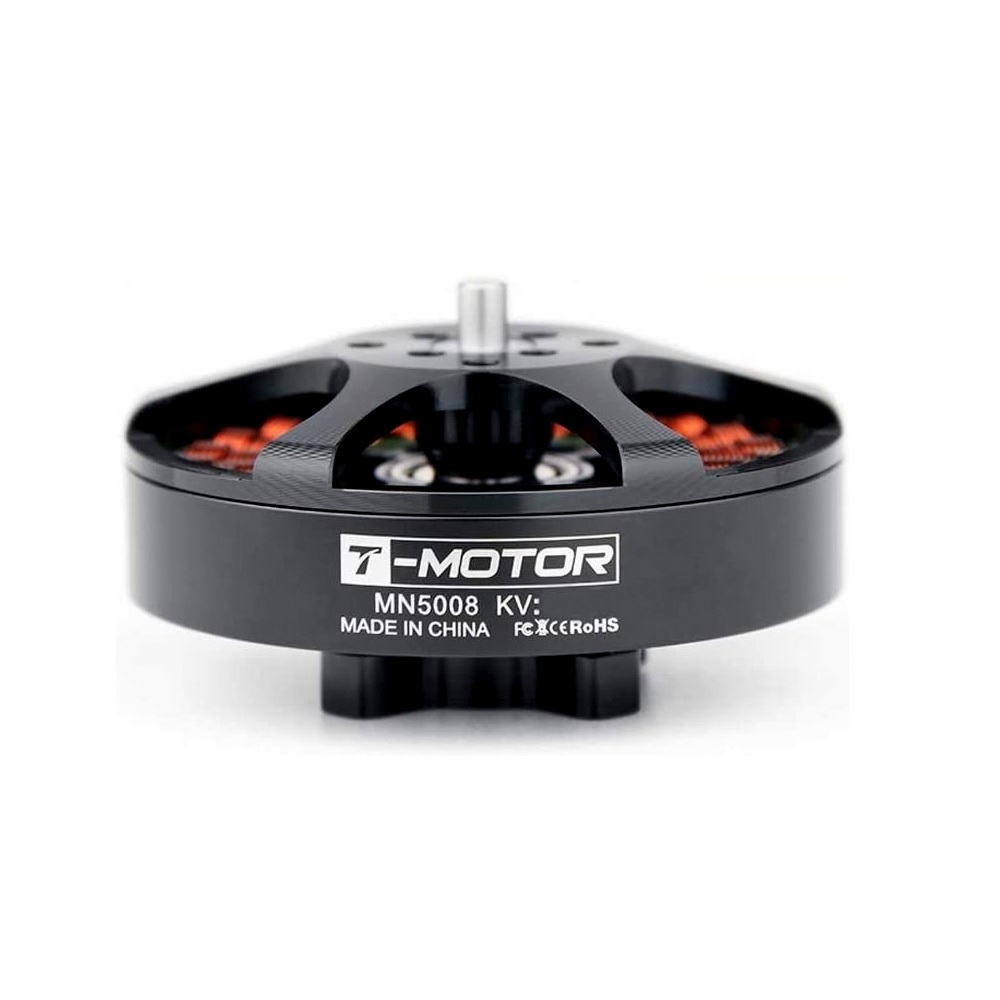

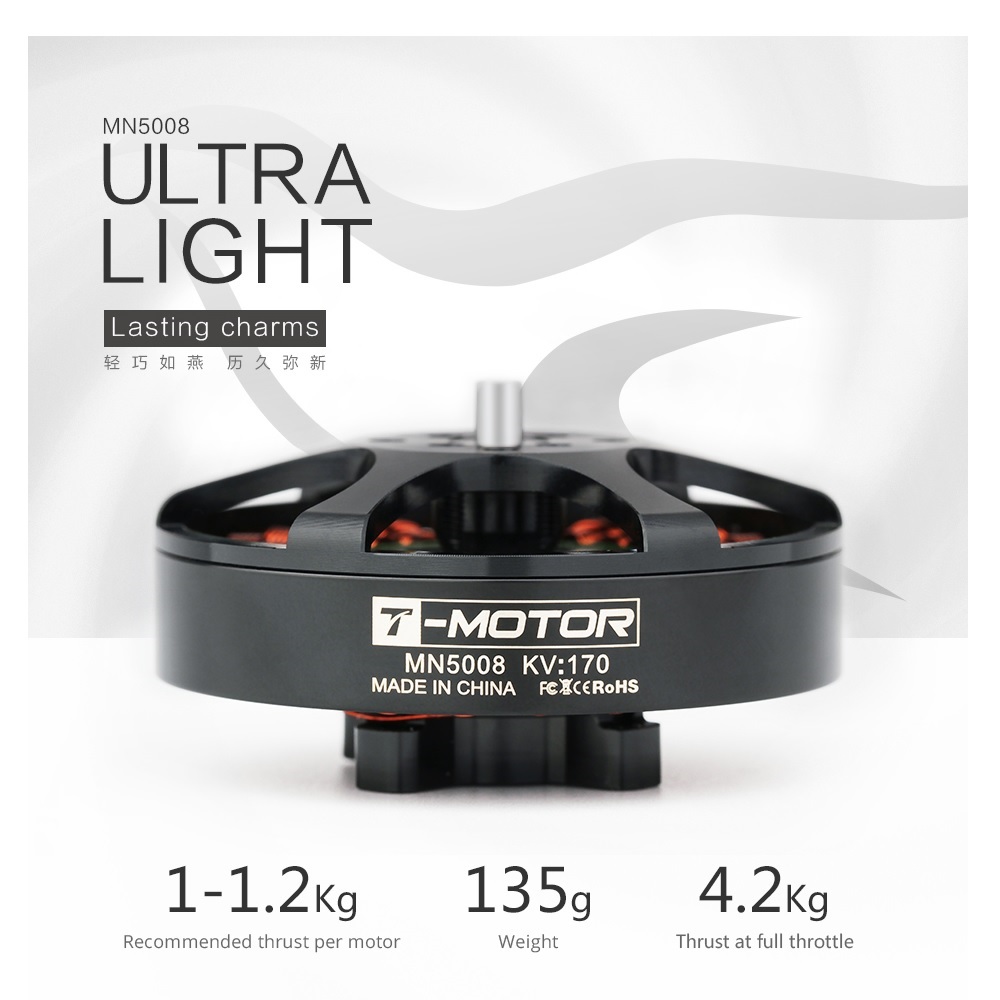

T-Motor Antigravity MN5008 KV170
The T-Motor Antigravity MN5008 KV170 is a high-efficiency, ultralight brushless motor engineered for extended flight endurance in heavy-lift and cinematic drone platforms. It operates on a 6-12S LiPo voltage range and is optimized for large 17-18 inch propellers.
Features
- Ultralight, high-efficiency design for maximum flight endurance
- 170 KV rating optimized for 6-12S LiPo battery systems
- 24N28P configuration for smooth, low-cogging torque operation
- 6mm hardened steel shaft for robust power transmission
- Peak power handling up to 720W for demanding aerial applications
Out of stock
The T-Motor Antigravity MN5008 is engineered for pilots prioritizing flight time and payload capacity. Its ultralight construction and high-efficiency magnetic circuit minimize power consumption, directly translating to longer operational durations for surveying, mapping, and cinematic filming missions.

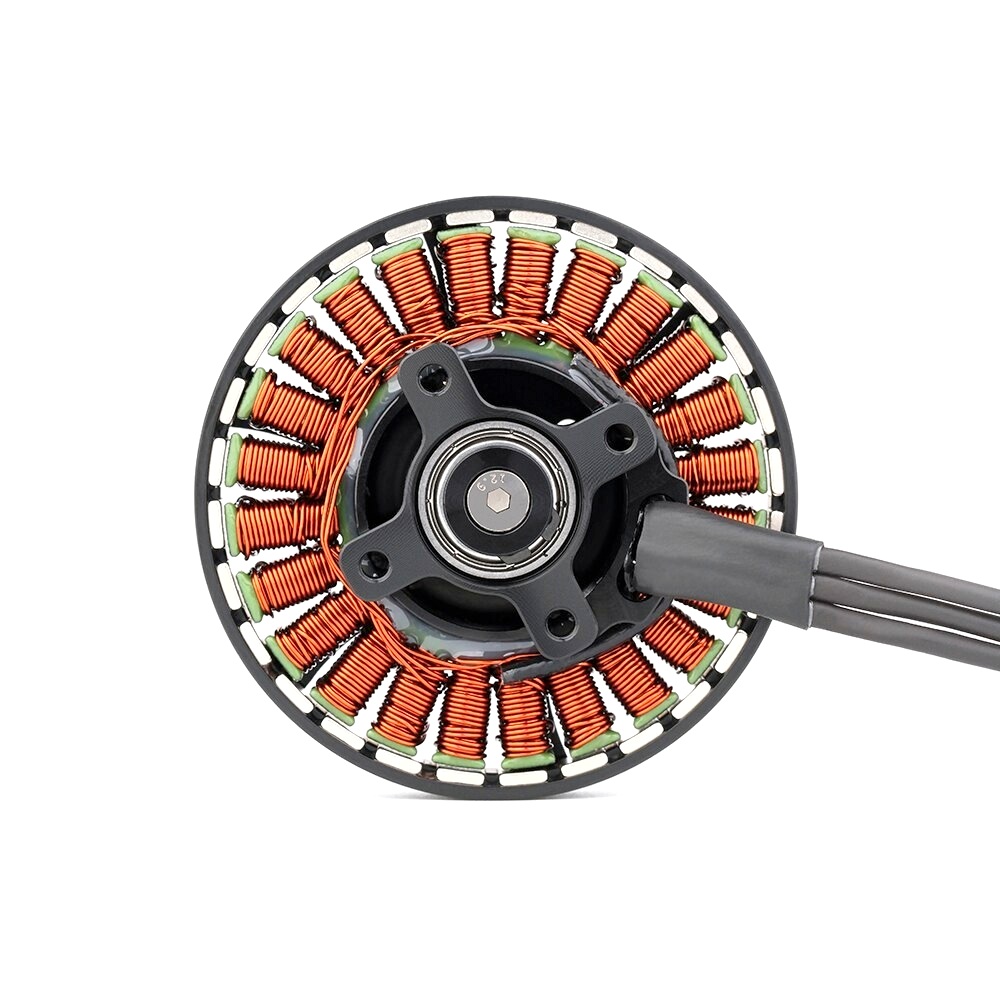

Built with a 24N28P stator configuration, the motor delivers exceptionally smooth rotation with minimal cogging torque, ensuring stable footage and precise throttle control. The robust 6mm shaft and high-grade bearings are designed to handle the stresses of large-diameter propellers and sustained high-torque loads.
Additional Information
| Weight | 0.32 kg |
|---|---|
| Dimensions | 9 × 15 × 3 cm |
