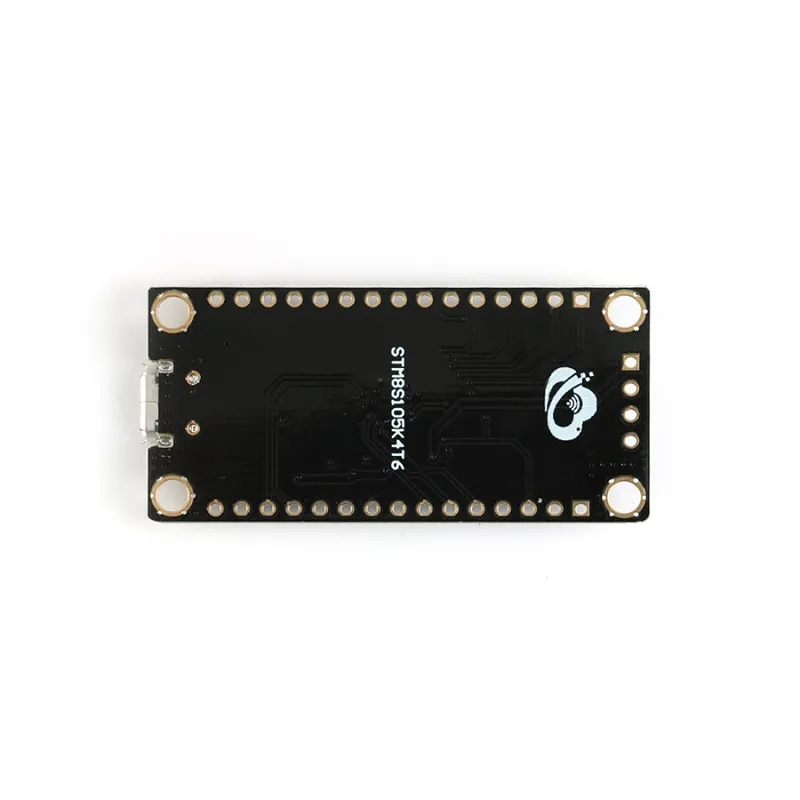

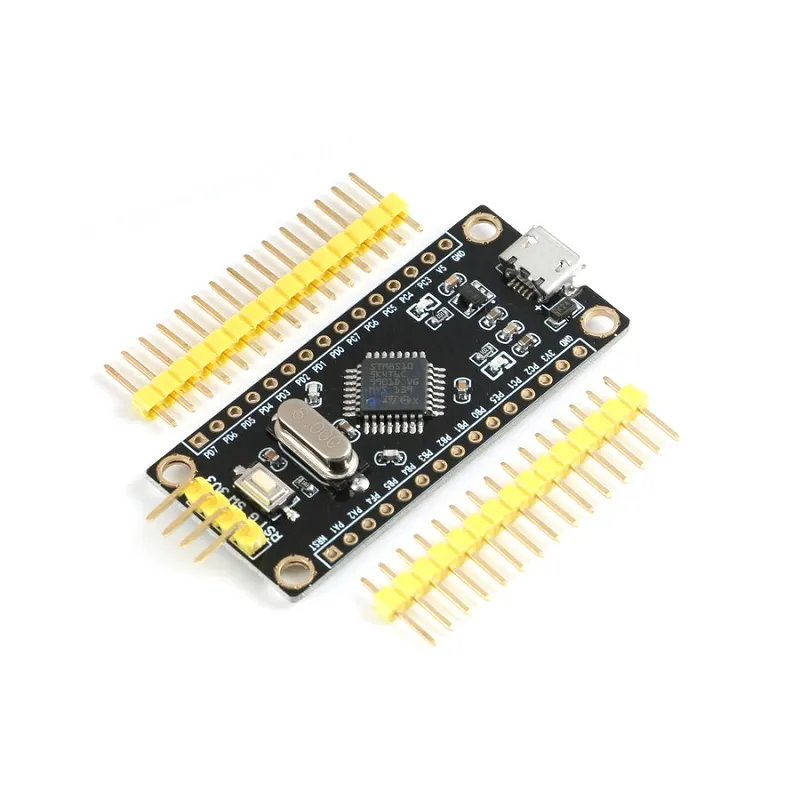

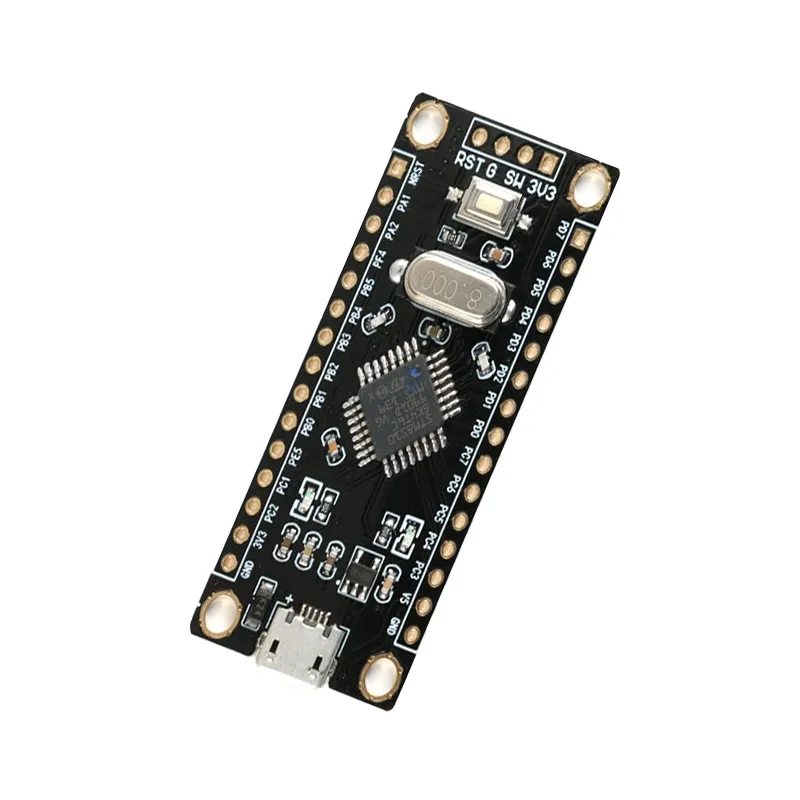

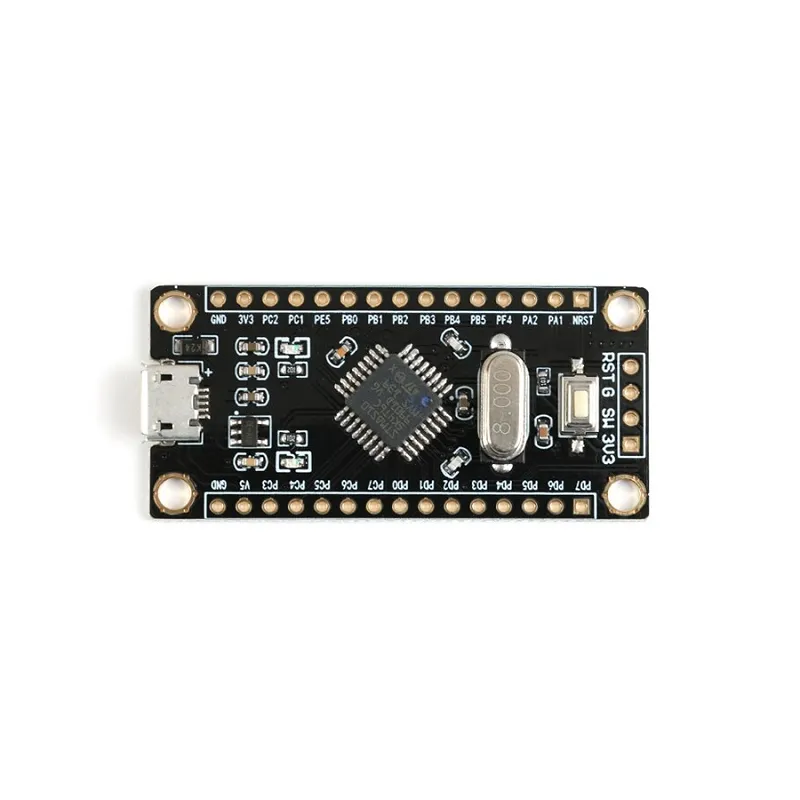

STM8S105K4T6 ARM Core Development Board
STM8S105K4T6 ARM Core Development Board - Image 2
STM8S105K4T6 ARM Core Development Board - Image 3
STM8S105K4T6 ARM Core Development Board - Image 4
SKU: SBCD-0506
📋 GST Invoice Available

STM8S105K4T6 ARM Core Development Board

₹369.00 (Inclusive of all taxes)
Out of Stock

The STM8S105K4T6 ARM Core Development Board provides a low-cost, compact platform for embedded system development. Featuring the STM8S105K4T6 microcontroller with an 8-bit ARM Cortex core, 32KB Flash, and 2KB SRAM, it’s ideal for learning and prototyping STM8-based applications.

Features

  • Integrated STM8S105K4T6 microcontroller with an 8-bit ARM Cortex core.
  • Features 32KB Flash memory and 2KB SRAM for program and data storage.
  • Operates at a stable 16MHz clock frequency for reliable performance.
  • Onboard Mini USB interface provides convenient power supply and serial communication.
  • Includes male headers for easy prototyping and expansion.

Out of stock

Description

The STM8S105K4T6 ARM Core Development Board offers a foundational platform for delving into embedded systems with the STMicroelectronics STM8 microcontroller family. Designed for ease of use, this board integrates the STM8S105K4T6, an 8-bit microcontroller built around an efficient ARM Cortex core, making it an excellent choice for educational purposes and rapid prototyping of simple to moderately complex embedded applications.

This compact development board provides essential peripherals to get started, including a Mini USB port for both power delivery and host communication, simplifying connectivity to development PCs. Its straightforward design exposes key GPIOs, allowing direct interface with sensors, actuators, and other external components. The board’s architecture supports a reliable 16MHz operating frequency, complemented by 32KB of on-chip Flash memory and 2KB of SRAM, providing ample resources for various control and data processing tasks.

Key Features

  • Integrated STMicroelectronics STM8S105K4T6 8-bit microcontroller.
  • Features an ARM Cortex core architecture for robust performance.
  • Equipped with 32KB of Flash memory and 2KB of SRAM.
  • Stable 16MHz operating frequency for predictable execution.
  • Onboard Mini USB interface for convenient power supply and serial data communication.
  • Supports flexible clocking with a 4-16MHz crystal input.
  • Exposes essential GPIO pins for external interfacing and expansion.
  • Low-cost development platform suitable for learners and hobbyists.

Applications

  • Educational platforms for embedded systems learning.
  • Prototyping simple control systems and automation.
  • Low-cost sensor data acquisition and processing.
  • Development of basic IoT nodes and peripherals.
  • Small-scale robotics and mechatronics projects.

Technical Specifications

MicrocontrollerSTM8S105K4T6
Core Architecture8-bit ARM Cortex
Operating Frequency16 MHz
Flash Memory32 KB
SRAM2 KB
Supply Voltage5V DC (via Mini USB)
Communication InterfaceMini USB
Dimensions49mm x 23mm
Weight10 g

Frequently Asked Questions

What is the core architecture of the STM8S105K4T6?

The STM8S105K4T6 utilizes an 8-bit ARM Cortex core. This architecture provides a balance of performance and efficiency, making it suitable for a wide range of embedded applications requiring compact code and low power consumption. It's an excellent platform for learning fundamental microcontroller programming concepts.

What development tools are compatible with this STM8 board?

This STM8S105K4T6 board is typically programmed using STMicroelectronics' official development tools, such as STM8CubeIDE, or open-source alternatives like SDCC. These environments support C/C++ programming and provide necessary debugging and flashing capabilities for the STM8 architecture, facilitating project development.

How is the STM8S105K4T6 board powered and connected?

The board is conveniently powered via its onboard Mini USB interface, which supplies 5V DC. This same Mini USB port also facilitates serial communication with a host computer, simplifying both power delivery and data transfer during development and debugging phases.

What memory resources does the STM8S105K4T6 microcontroller offer?

The STM8S105K4T6 microcontroller features 32KB of integrated Flash memory for program storage and 2KB of SRAM for data storage and runtime variables. These memory capacities are suitable for embedded projects that require moderate code complexity and data handling.

Package Includes

  • 1x STM8S105K4T6 ARM Core Development Board
  • 2x 15-pin Male Headers
  • 1x 4-pin Right Angle Male Header

Additional Information

Weight 0.01 kg
Dimensions 4.9 × 2.3 cm
