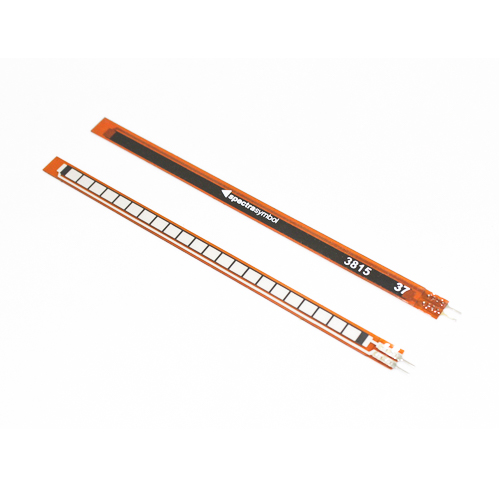

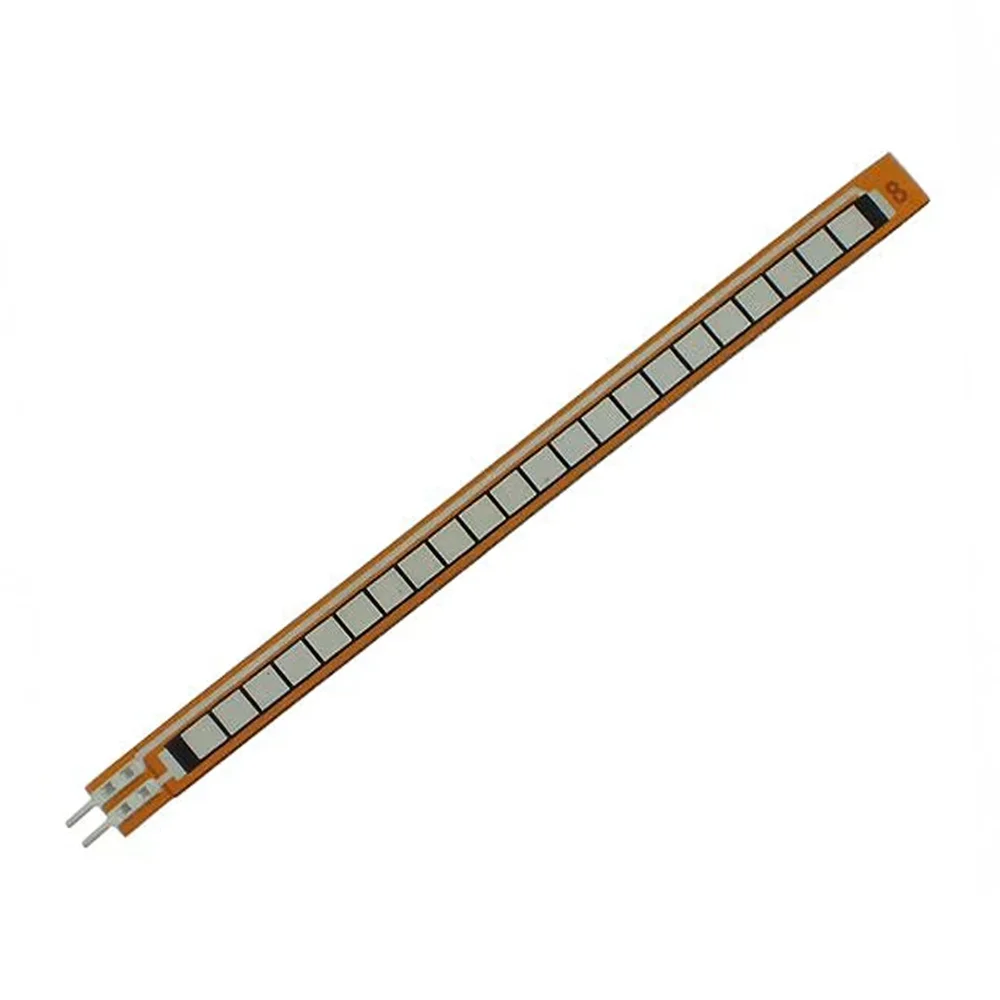

Spectra Symbol Flex Sensor FS-L-095-103-MP 95mm Bend Sensor - Male Pins
The Spectra Symbol FS-L-095-103-MP is a 95mm flexible bend sensor that provides variable resistance output proportional to its angular displacement. This breadboard-friendly sensor with 0.1″ male pins is compatible with Arduino, Raspberry Pi, and other microcontrollers for motion and gesture sensing applications.
Features
- 95mm (4.5″) active sensing length for precise angular displacement measurement
- Variable resistive output: 10KΩ flat resistance (±30%) increasing with bend radius
- Robust 0.50W continuous power rating (1W peak) for reliable operation
- Wide operating temperature range from -35°C to +80°C
- Breadboard-friendly 0.1″ spaced male pins for easy prototyping
Out of stock
The Spectra Symbol Flex Sensor FS-L-095-103-MP is a passive resistive sensor designed to measure angular displacement and bending. Its construction features a printed conductive ink pattern on a flexible substrate; as the sensor bends, the conductive material stretches, increasing the electrical path length and thus the measured resistance. This change in resistance is directly proportional to the bend angle, providing a simple analog signal for motion detection.
Engineered for durability within a wide thermal range, this sensor is suitable for integration into dynamic systems. The 1mm thick profile and 95mm active length offer a balance between sensitivity and mechanical robustness. Care must be taken to bend only the designated sensing area to prevent damage to the base connector region.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 2 × 10 × 1 cm |
