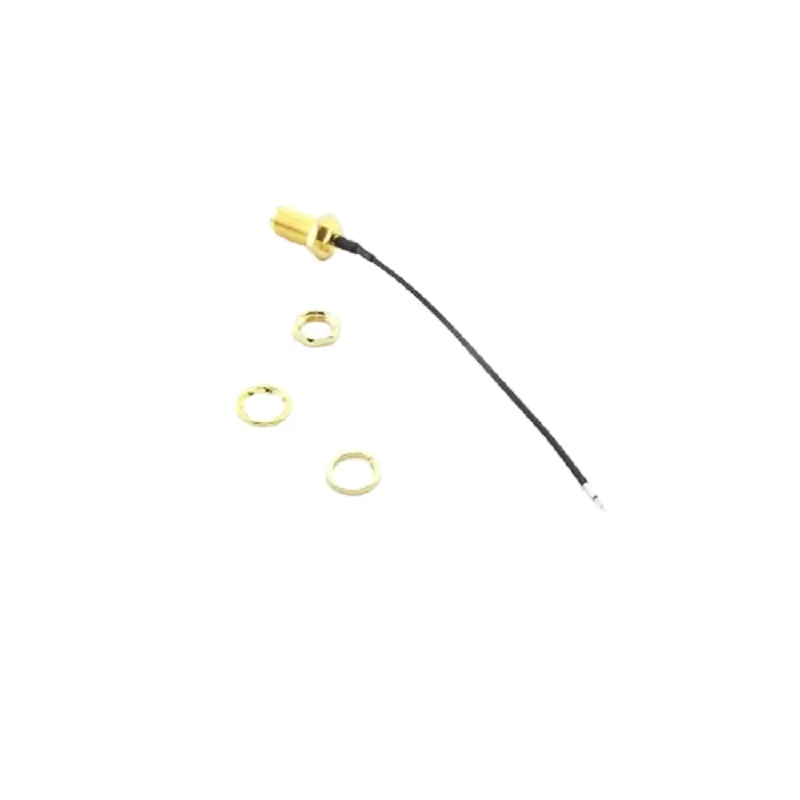

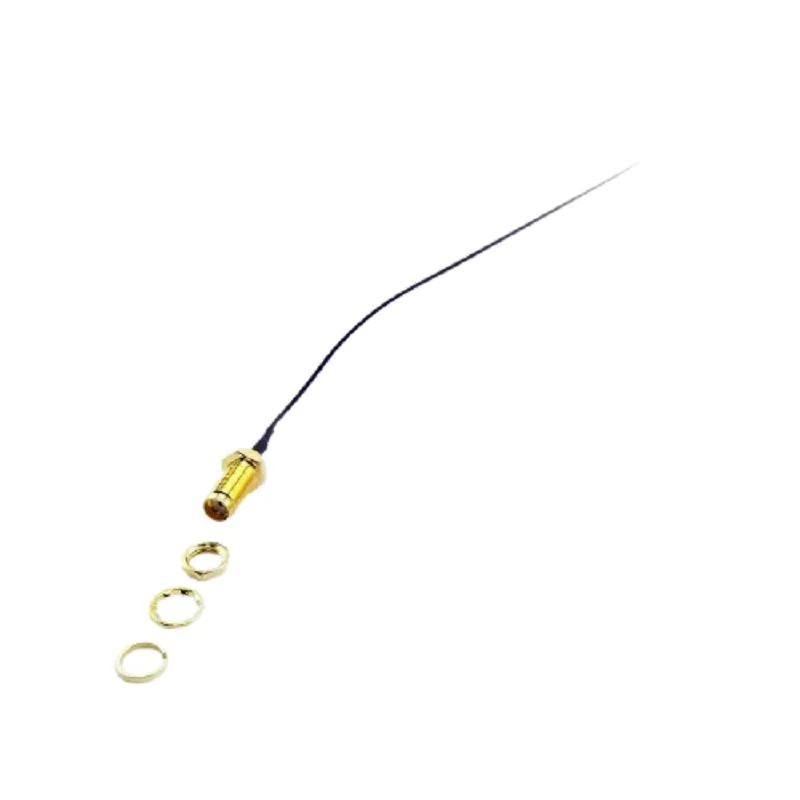

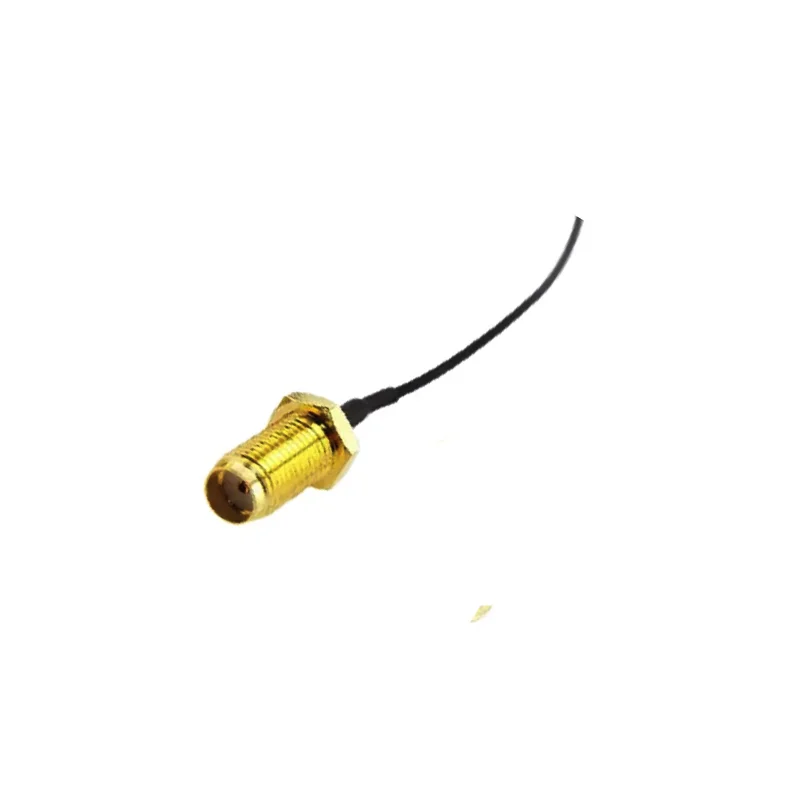

SMA Female to Stripping Head Connector Cable 15cm RG1.13
This 15cm RG1.13 cable features a standard SMA female connector on one end and a stripped, tinned termination on the other for custom antenna or RF circuit integration, providing a 50-ohm impedance path suitable for frequencies up to 18GHz.
Features
- RG1.13 coaxial cable with 50-ohm impedance ensures minimal signal loss for RF applications up to 18GHz.
- SMA female connector with threaded coupling provides a secure, durable connection to SMA male antenna ports.
- 15cm length offers flexible routing within compact IoT enclosures, drones, or wireless sensor nodes.
- Stripped and tinned termination allows direct soldering to PCB pads, custom antenna elements, or RF module pins.
- Constructed with nickel or gold-plated brass contacts and PTFE dielectric for stable electrical performance.
Out of stock

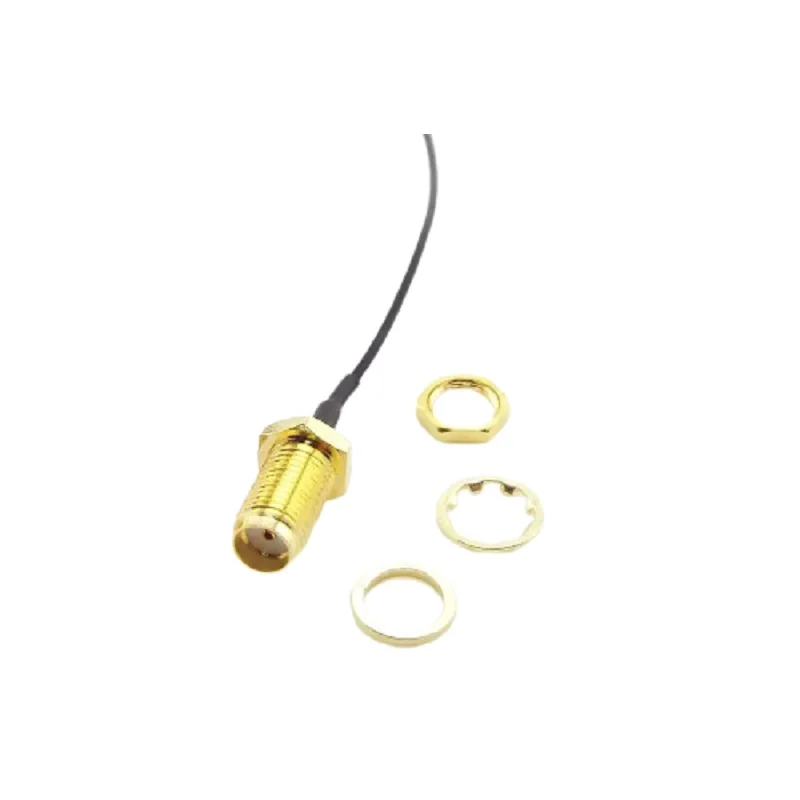

This SMA female to stripping head cable is a semi-rigid coaxial assembly designed for prototyping and integrating RF subsystems. The SMA female connector features a central receptacle and a threaded outer barrel, engineered for reliable mating with standard SMA male interfaces commonly found on Wi-Fi, cellular, and LoRa modules. The opposite end is stripped, with the center conductor and shield separated and pre-tinned, ready for direct soldering to custom antenna traces, test points, or development board headers.
The RG1.13 cable construction maintains a consistent 50-ohm characteristic impedance, critical for minimizing signal reflection and loss in high-frequency wireless links from DC to 18GHz. The use of polytetrafluoroethylene (PTFE) dielectric and metal-shell connectors ensures mechanical durability and stable electrical parameters across temperature variations, making it suitable for both lab bench testing and field-deployed IoT hardware.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 7 × 10 × 1 cm |
