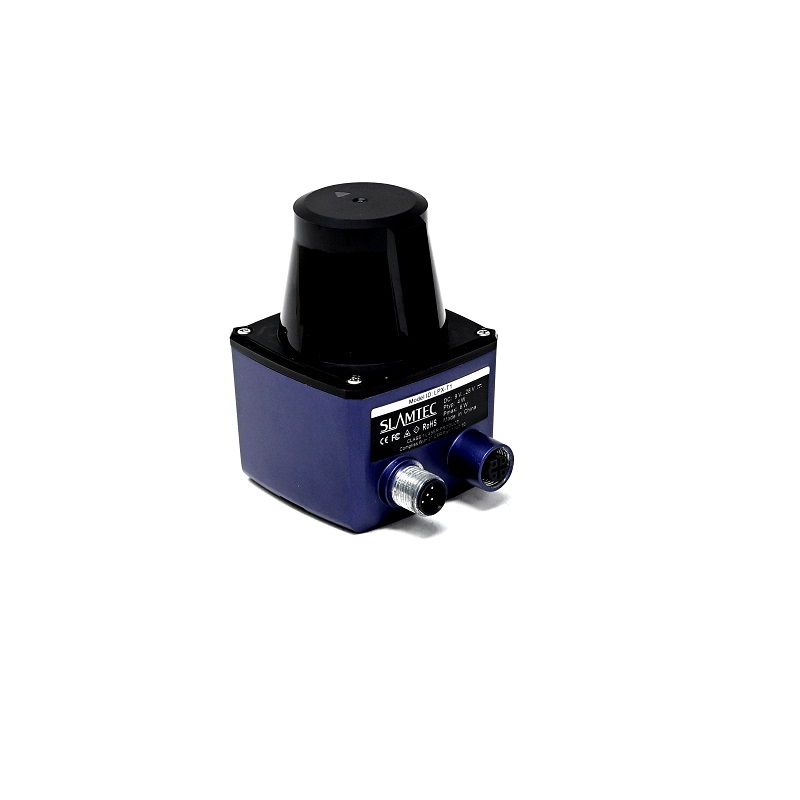

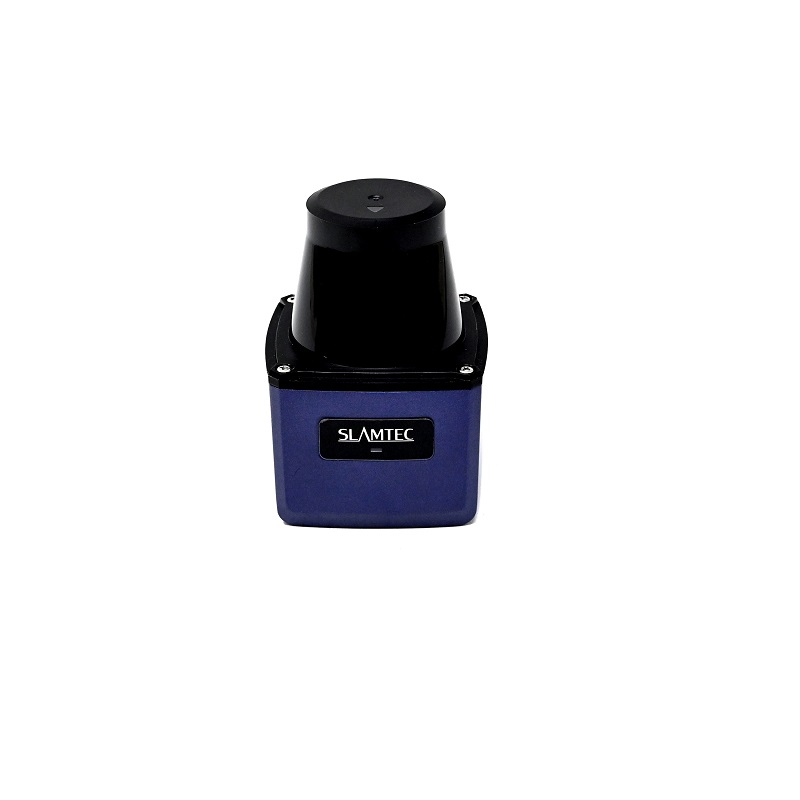

Slamtec LPX-T1M4 Industrial Field Monitoring Lidar Sensor (Range: 40m) - 270° FOV, 60k Samples/sec
The Slamtec LPX-T1M4 is a 2D industrial-grade LiDAR scanner designed for high-performance simultaneous localization and mapping (SLAM). It delivers up to 60,000 samples per second across a 270° field of view with a 40m maximum range, making it ideal for integration into AGVs, service robots, and autonomous vehicle navigation systems.
Features
- High-speed 2D LiDAR scanner with a 270° field of view and a 40m maximum detection range.
- Delivers up to 60,000 laser ranging samples per second for dense, real-time point cloud data.
- Configurable scanning frequency from 20Hz to 40Hz with a 0.12° angular resolution.
- Incorporates a high-performance laser Time-of-Flight (ToF) ranging system for reliable operation in varied indoor and outdoor environments.
- Certified to FDA Class I laser safety standards, ensuring safe operation in human-occupied spaces.
Out of stock
The LPX-T1M4 is a first-generation mid-to-long-range 2D laser scanner engineered for robust robotic perception. Its core is a high-speed laser Time-of-Flight (ToF) system that generates precise distance measurements, creating a detailed 2D point cloud map of the surrounding environment. This data is fundamental for algorithms performing real-time Simultaneous Localization and Mapping (SLAM).
The sensor’s scanning frequency is user-adjustable between 20Hz and 40Hz, allowing a balance between data refresh rate and processing load. Its design prioritizes consistent performance across diverse lighting and environmental conditions, supported by rigorous factory calibration and testing. The compact, industrial-grade housing is built for integration into mobile robotic platforms and autonomous systems.
Additional Information
| Weight | 1.128 kg |
|---|---|
| Dimensions | 29 × 23 × 19 cm |
