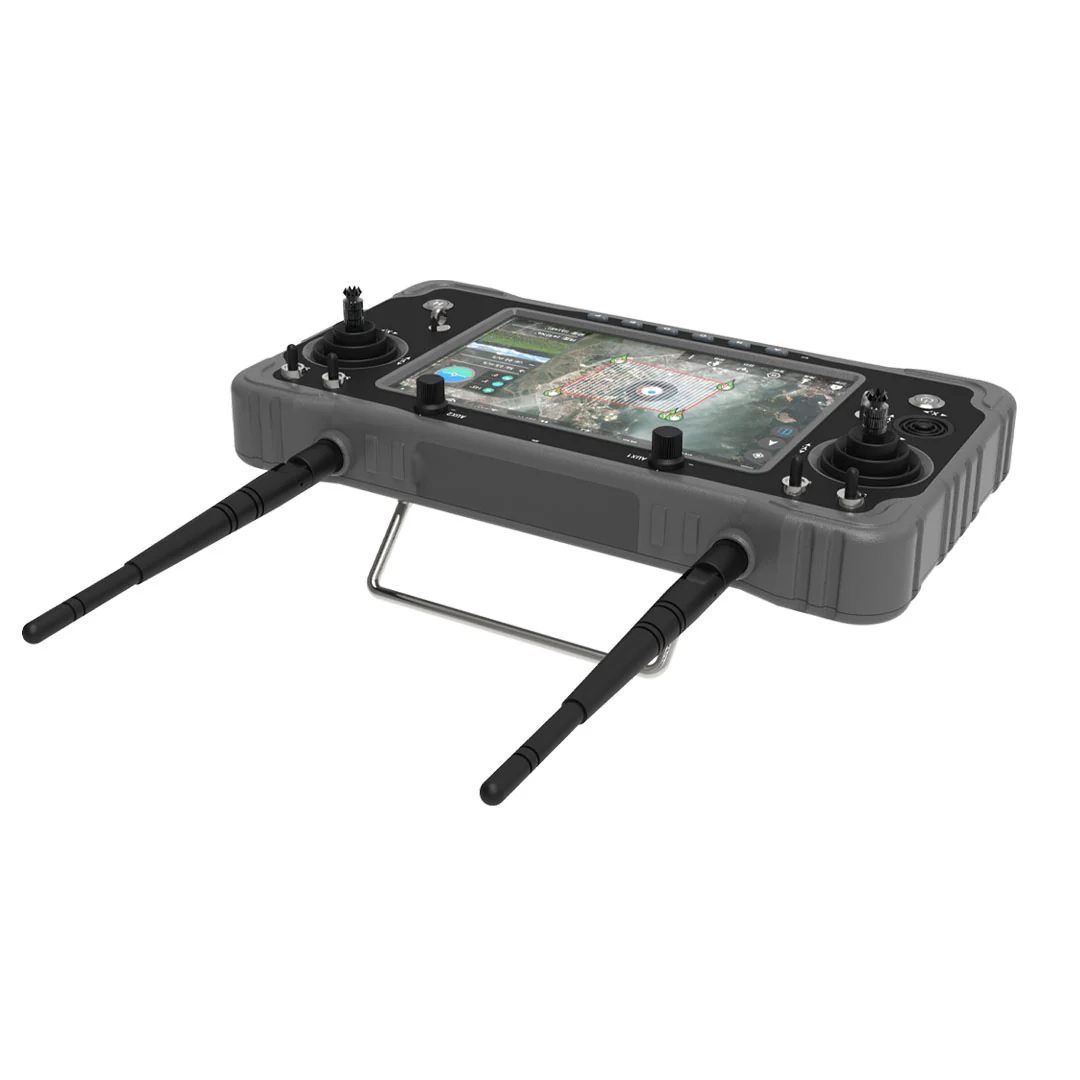

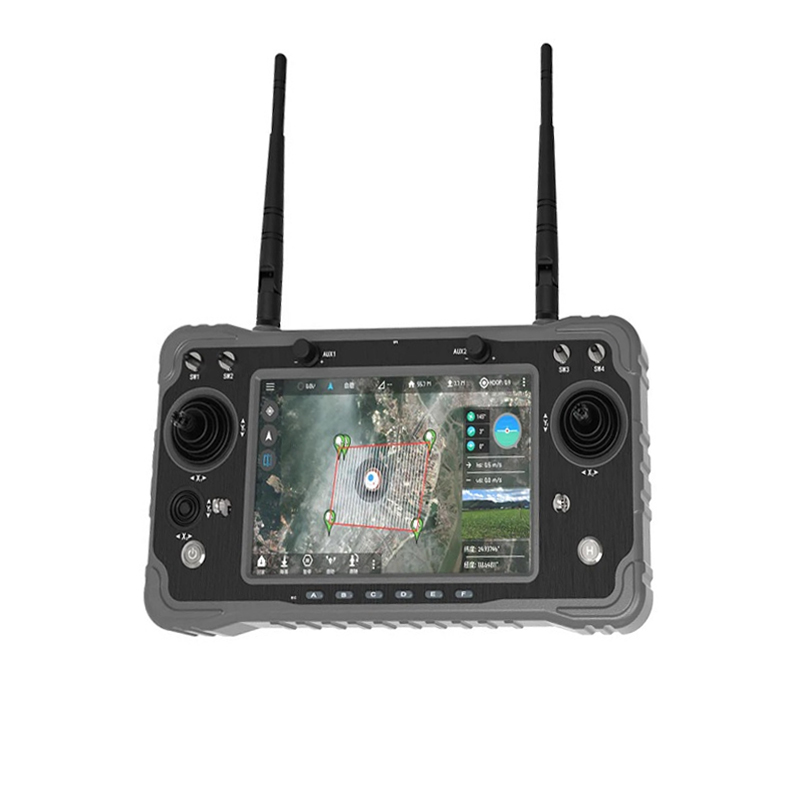

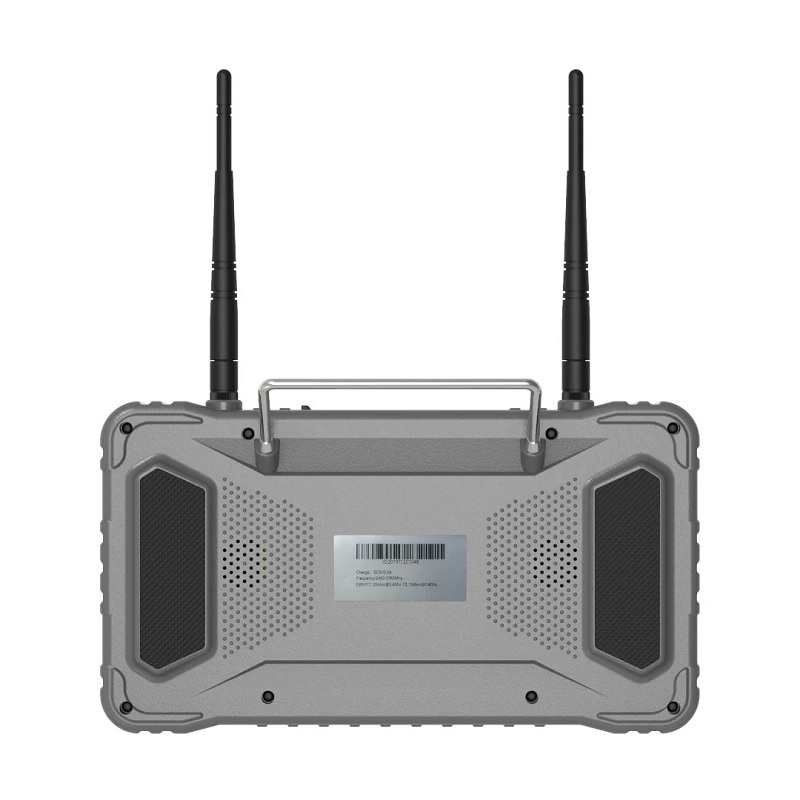

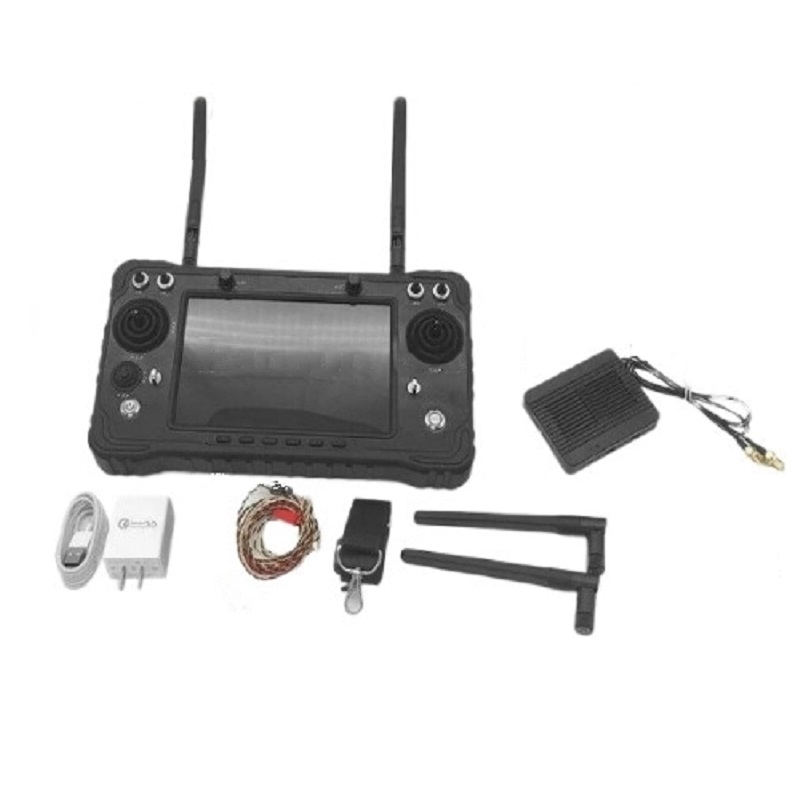

Skydroid H16 Remote Control with H16 Receiver

Name: Skydroid H16 Remote Control with H16 Receiver
Brand: Skydroid
SKU: DRFC-3395
Price: 109939.00 INR
Availability: OutOfStock

₹109,939.00 (Inclusive of all taxes)

Out of Stock

The Skydroid H16 Remote Control is a 16-channel industrial-grade transmitter paired with the H16 receiver, designed for professional UAV applications requiring long-range, stable control and telemetry feedback.

Features

16-channel control with 2.4GHz frequency hopping for robust anti-interference performance.
Integrated 7-inch HD touchscreen running a specialized Android OS for app-based mission control.
Extended 6-20 hour operational endurance powered by a 20,000mAh internal battery.
Receiver supports a wide 7.2-72V input voltage range for compatibility with various UAV power systems.
High RF output power configurable for FCC (23dB) or CE (20dB) regulatory domains.

Out of stock

Get Notified When Available

Description

The Skydroid H16 Remote Control system is engineered for professional unmanned operations, combining a high-capacity ground control station with a versatile airborne receiver. The transmitter’s core is a custom Android platform, enabling the installation of mission planning, mapping, and telemetry monitoring applications directly on the 7-inch display. Its ergonomic design and substantial battery capacity support all-day field operations.

The accompanying H16 receiver is built for integration into a wide array of UAV platforms, from light commercial drones to heavy-lift industrial systems, thanks to its exceptionally broad 7.2-72V input voltage tolerance. The system’s 16 proportional channels and configurable RF power provide the control granularity and link reliability required for complex payload management and precise flight maneuvers in challenging RF environments.

Key Features

Industrial-grade 16-channel transmitter with customizable control profiles and switch assignments.
High-brightness 7-inch capacitive touchscreen display for clear visibility in outdoor conditions.
Dedicated Android-based operating system optimized for third-party UAV piloting and mission apps.
Long-range 2.4GHz transmission with frequency-hopping spread spectrum (FHSS) for link stability.
High-capacity 20,000mAh lithium polymer battery with USB Type-C charging port.
Receiver features ultra-wide voltage input (7.2-72V) for direct connection to diverse drone power systems.
Modular antenna system included for ground station and optional receiver antenna upgrades.
Comprehensive telemetry data feedback for real-time monitoring of UAV status and flight parameters.

Applications

Professional mapping, surveying, and inspection drones requiring reliable long-range control.
Heavy-lift UAV platforms for agricultural spraying, cargo delivery, or cinematography.
Industrial drone systems with complex payloads (gimbals, sensors, droppers) needing multi-channel control.
Custom-built UAVs where integration of a high-voltage tolerant receiver simplifies power system design.
Mission-critical operations where ground station screen-based telemetry and app control are essential.

Technical Specifications

Transmitter Model	H16
Receiver Model	R16 (H16)
Operating Frequency	2.400 - 2.483GHz
Channels	16
Transmitter RF Power	20dBm (CE) / 23dBm (FCC)
Transmitter Battery	20,000mAh LiPo
Transmitter Voltage	4.2V
Receiver Input Voltage	7.2 - 72V DC
Transmitter Charging Port	USB Type-C
Transmitter Weight	1034g
Transmitter Dimensions	272 x 183 x 94 mm
Receiver Weight	90g
Receiver Dimensions	102.1 x 42.6 x 36.5 mm
Operational Endurance	6 - 20 hours

Frequently Asked Questions

What is the maximum operating voltage for the H16 receiver?

The H16 receiver (model R16) supports an exceptionally wide input voltage range from 7.2V up to 72V DC. This allows it to be powered directly from the main flight battery of most commercial and heavy-lift drones without requiring a separate voltage regulator, simplifying wiring and increasing system reliability.

Can I install third-party drone piloting apps on the H16 transmitter's screen?

Yes. The transmitter runs a specialized Android operating system, providing access to the Google Play Store or other app repositories. This allows pilots to install mission planning, mapping, telemetry display, and camera control applications directly on the ground control station for an integrated workflow.

How is the RF output power configured for different regions?

The Skydroid H16 system's RF power is software-configurable to comply with regional regulations. It can be set to 23dBm (FCC standard for North America) or 20dBm (CE standard for Europe). The configuration is typically done via the transmitter's system settings menu or a dedicated configuration application.

What type of battery powers the H16 remote, and how is it charged?

The transmitter is powered by a large, integrated 20,000mAh lithium polymer battery. It is charged via a USB Type-C port located on the unit, providing modern, reversible connectivity for convenient charging in the field or from a vehicle power source.
