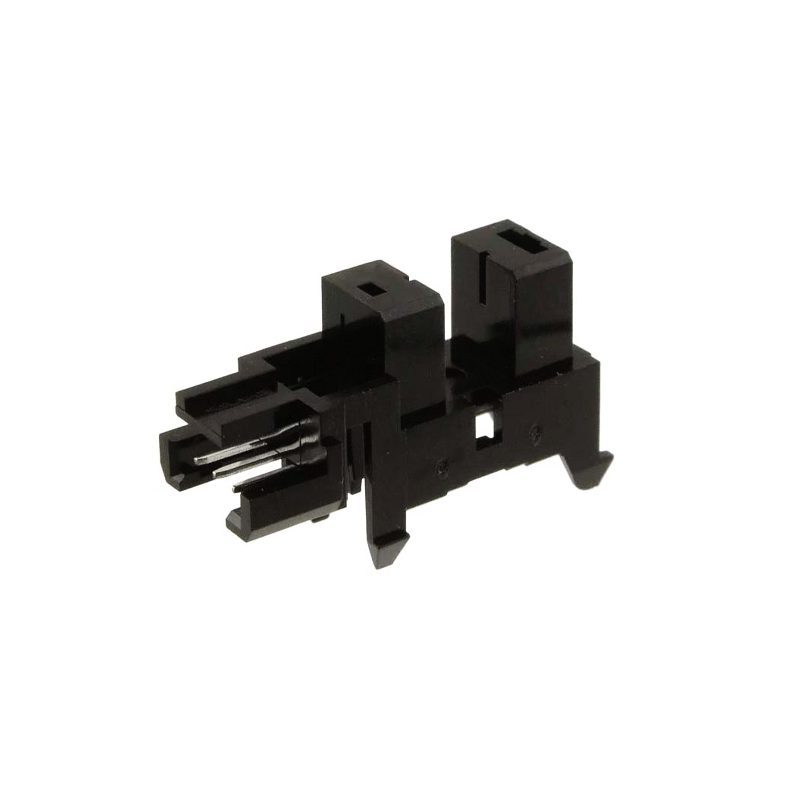

Sharp Microelectronics GP1S173LCS2F Transmissive Photointerrupter Sensor, 5mm Slot Width, Phototransistor Output, 5V DC, Snap-In Mount Optical Switch
The Sharp Microelectronics GP1S173LCS2F is a transmissive photointerrupter module featuring a phototransistor output, designed for non-contact object detection and position sensing in 5V DC systems. Its compact design with snap-in hooks facilitates easy integration into PCBs and assemblies requiring precise optical switching.
Features
- Transmissive optical design with 5mm sensing gap and 0.5mm detector slit for precise object detection.
- Phototransistor output compatible with 5V logic levels, ideal for direct interfacing with microcontrollers like Arduino and Raspberry Pi.
- Integrated snap-in hooks for secure mounting on plates with thicknesses of 1.0mm, 1.2mm, and 1.6mm.
- Compact package (17 x 12.8 x 8 mm) with a 3-pin connector for flexible off-board or remote sensor placement.
- Wide operating temperature range from -30°C to +75°C for reliable performance in varied environments.
Out of stock
The GP1S173LCS2F operates on the principle of transmissive optical sensing, where an infrared emitter and a phototransistor detector are precisely aligned within a 5mm gap. An object passing through this gap interrupts the light beam, causing a corresponding change in the phototransistor’s output state. This provides a clean, digital-like signal for reliable object detection, edge counting, or limit switching.
Engineered for mechanical flexibility, the module includes molded snap-in hooks that securely fasten it to panels or chassis without additional hardware. The detachable 3-pin connector (compatible with Tyco Electronics 173977-3/179228-3 series) allows the sensor head to be mounted remotely, with the electronics placed elsewhere, simplifying system design and maintenance in space-constrained applications.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 1.7 × 1.28 × 0.8 cm |
