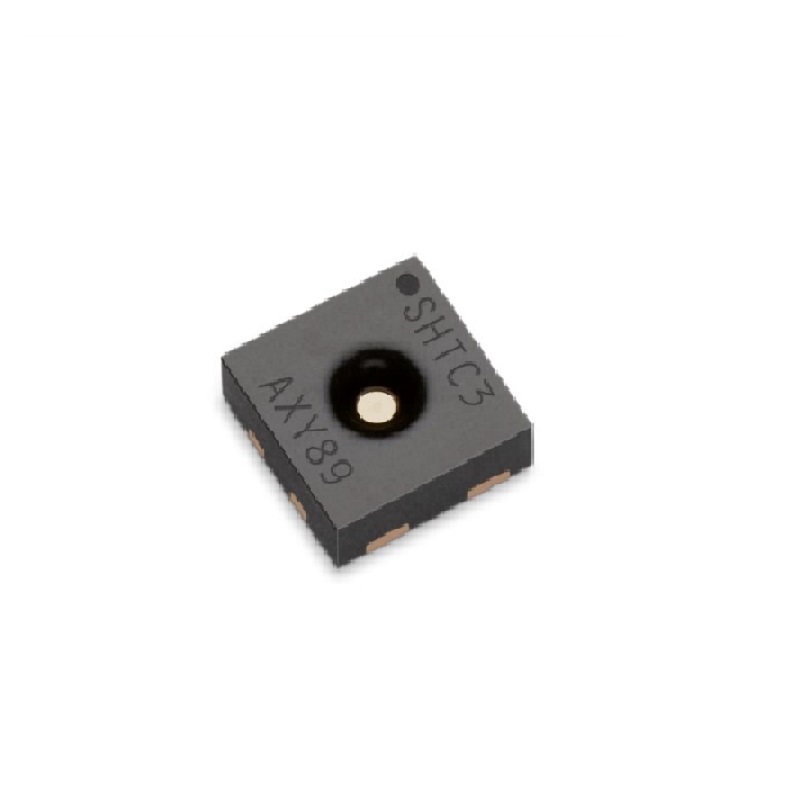

Sensirion SHTC3-TR-2.5KS Humidity & Temperature Sensor IC, 0 to 100%RH, −40°C to +125°C, I2C Interface
The Sensirion SHTC3-TR-2.5KS is a fully calibrated digital humidity and temperature sensor IC featuring an I2C interface, compatible with 3.3V and 5V logic systems like Arduino, Raspberry Pi, ESP32, and STM32. It provides accurate environmental sensing from 0 to 100% RH and -40°C to +125°C.
Features
- High-accuracy digital humidity sensor with ±2% RH typical accuracy
- Integrated temperature sensor with ±0.2°C typical accuracy
- Low-power I2C digital interface for easy microcontroller integration
- Wide operating range from -40°C to +125°C and 0 to 100% RH
- Compact DFN package suitable for reflow soldering
Out of stock
The SHTC3-TR-2.5KS from Sensirion is a next-generation humidity and temperature sensor IC based on the company’s proven CMOSens® technology. This sensor combines a capacitive polymer sensing element for humidity with a band-gap temperature sensor, both fully calibrated and temperature-compensated via an integrated ASIC. The digital I2C output provides excellent signal integrity and simplifies system design.
Engineered for reliability and long-term stability, the SHTC3 is housed in a robust DFN package, making it suitable for demanding applications. Its low power consumption and wide supply voltage range (1.62V to 3.6V) make it ideal for portable, battery-powered devices as well as industrial monitoring systems requiring precise environmental data.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 11 × 9 × 5 cm |
