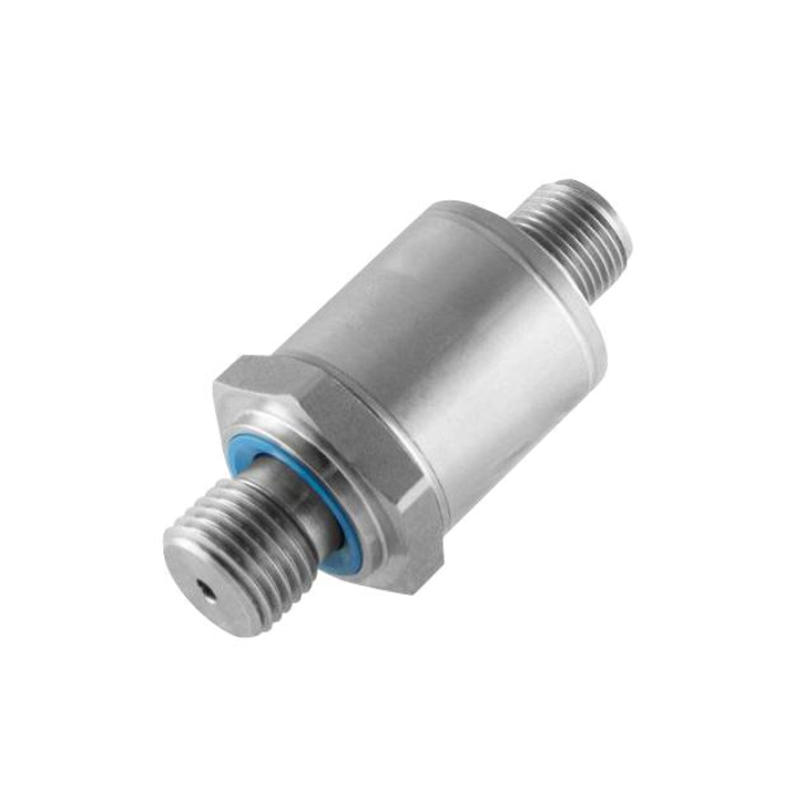

Sensata Technologies PTE7300-14AN-1B025BN Pressure Transmitter, Hermetic, Gauge, 0-25 bar, G1/4A BSPP Port

Name: Sensata Technologies PTE7300-14AN-1B025BN Pressure Transmitter, Hermetic, Gauge, 0-25 bar, G1/4A BSPP Port
Brand: Sensata Technologies
SKU: SENS-2159
Price: 7539.00 INR
Availability: OutOfStock

₹7,539.00 (Inclusive of all taxes)

Out of Stock

The Sensata Technologies PTE7300-14AN-1B025BN is a hermetically sealed, stainless steel pressure transmitter delivering high-accuracy gauge pressure measurement from 0 to 25 bar via a digital I²C interface, designed for integration into industrial control systems, mobile hydraulics, and automation platforms.

Features

Hermetically sealed 17-4PH stainless steel housing for harsh environment durability.
Digital I²C output with CRC for secure, noise-immune data communication.
High accuracy strain gauge sensor with 15-bit resolution for precise pressure monitoring.
Fast response time under 1 ms for real-time system feedback and control.
Wide operating voltage range (3.3V to 5.5V DC) compatible with common logic levels.

Out of stock

Get Notified When Available

Description

The PTE7300 series pressure transmitter utilizes a robust strain gauge sensing element housed within a hermetically sealed 17-4PH stainless steel body, providing exceptional resistance to moisture, dust, and corrosive media. This construction ensures long-term stability and accuracy in demanding industrial, mobile hydraulic, and process control environments.

Featuring a digital I²C interface with built-in CRC error checking, the sensor provides a reliable, noise-resistant communication link for integration into microcontroller-based systems (Arduino, Raspberry Pi, PLCs) and smart sensor networks. The fast dynamic response and high resolution enable precise monitoring of pressure transients in real-time critical applications.

Key Features

Hermetic sealing ensures IP68-equivalent protection against harsh fluids and environments.
High-performance 17-4PH stainless steel housing for superior mechanical strength and corrosion resistance.
Digital I²C output with Cyclic Redundancy Check (CRC) guarantees data integrity.
Wide operating temperature range from -40°C to +125°C for extreme condition reliability.
G1/4A BSPP threaded port with FKM (Viton) sealing for secure, leak-proof fluid connections.
Compact form factor (75mm x 28mm) for easy integration into space-constrained assemblies.
Low power consumption (3.7 mA typical) suitable for battery-powered or energy-sensitive systems.

Applications

Industrial hydraulic and pneumatic system pressure monitoring and control.
Mobile machinery and off-highway vehicle fluid power management.
Process control and automation in chemical, oil & gas, and water treatment plants.
Test and measurement rigs for fluid dynamics and pressure profiling.
Energy management systems monitoring compressor and pump performance.

Technical Specifications

Manufacturer Part Number	PTE7300-14AN-1B025BN
Pressure Type	Gauge
Pressure Range	0 to 25 bar
Supply Voltage	3.3V to 5.5V DC
Supply Current	3.7 mA (typical)
Output Interface	I²C Digital (with CRC)
Connector Type	5x1, 2mm pitch pin header
Port Thread Standard	G1/4A BSPP
Sealing Material	FKM (Viton)
Housing Material	17-4PH Stainless Steel
Response Time	< 1 ms
Operating Temperature	-40°C to +125°C
Sensor Technology	Strain Gauge
Length	75 mm
Width	28 mm
Weight	300 g

Frequently Asked Questions

What is the supply voltage range for the PTE7300 pressure transmitter?

The PTE7300 operates from a 3.3V to 5.5V DC supply, making it directly compatible with standard 3.3V and 5V microcontroller logic levels such as those found on Arduino, Raspberry Pi, and industrial PLCs. Typical supply current is 3.7 mA.

How do I communicate with this sensor and what is the pinout?

Communication is via a standard I²C digital interface, which includes CRC for data integrity. The connector is a 5-pin, 2mm pitch header. You will need to connect the VDD, GND, SDA, and SCL pins to your controller. Consult the datasheet for the specific pin assignment and I²C address.

Is this sensor suitable for use with liquids and in harsh environments?

Yes. The hermetically sealed 17-4PH stainless steel housing and FKM-sealed G1/4A BSPP port provide robust protection against moisture, dust, and many corrosive media. Its operating temperature range of -40°C to +125°C makes it suitable for demanding industrial, mobile, and outdoor applications.

What pressure type and measurement range does this model cover?

This specific model (PTE7300-14AN-1B025BN) is configured for gauge pressure measurement, with a calibrated range of 0 to 25 bar. It measures pressure relative to ambient atmospheric pressure.
