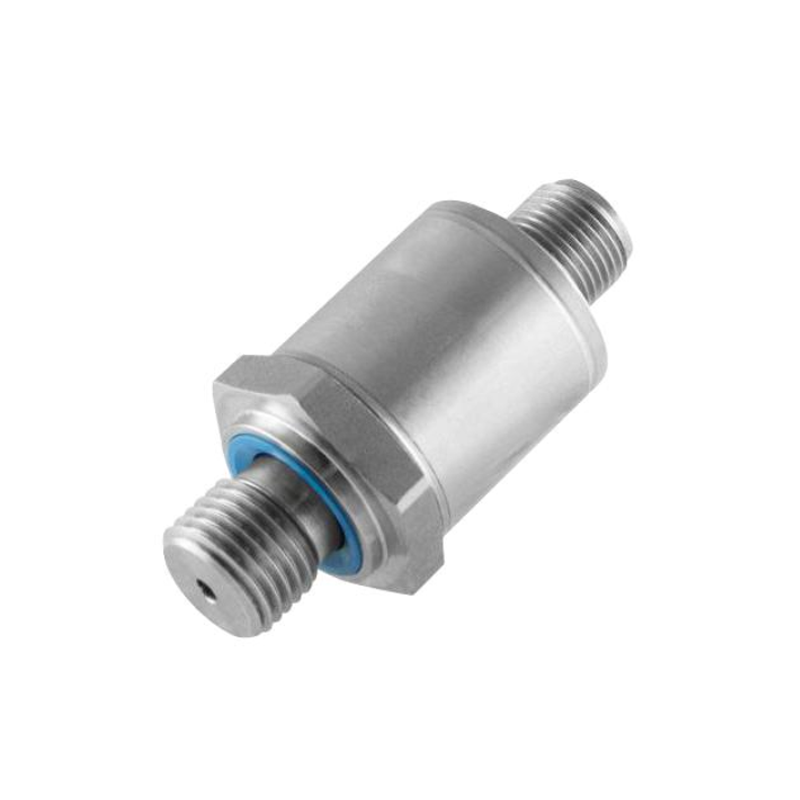

Sensata Technologies PTE7300-14AN-1B010BN Pressure Transmitter, Hermetic, Gauge, BSPP, 0-10 bar, G1/4A

Name: Sensata Technologies PTE7300-14AN-1B010BN Pressure Transmitter, Hermetic, Gauge, BSPP, 0-10 bar, G1/4A
Brand: Sensata Technologies
SKU: SENS-2160
Price: 8029.00 INR
Availability: OutOfStock

₹8,029.00 (Inclusive of all taxes)

Out of Stock

The Sensata Technologies PTE7300-14AN-1B010BN is a hermetically sealed, stainless steel pressure transmitter designed for industrial and OEM applications. It provides precise gauge pressure measurement from 0 to 10 bar via a digital I²C interface with CRC, compatible with 3.3V and 5V logic systems.

Features

Hermetically sealed 17-4PH stainless steel housing for harsh environment durability.
Digital I²C output with CRC ensures secure, accurate data transmission.
Fast response time of less than 1 millisecond for real-time system monitoring.
Wide operating temperature range from -40°C to 125°C.
G1/4A BSPP port for standard industrial hydraulic and pneumatic connections.

Out of stock

Get Notified When Available

Description

The PTE7300 series transmitter utilizes a precision strain gauge sensing element to deliver highly accurate gauge pressure readings. Its hermetically sealed construction protects the internal electronics from moisture, dust, and corrosive media, ensuring long-term stability and reliability in demanding applications.

Featuring a digital I²C interface with built-in Cyclic Redundancy Check (CRC), the module provides robust communication integrity, making it suitable for integration into smart industrial networks, PLCs, and data acquisition systems. The compact form factor and wide supply voltage range allow for flexible installation in space-constrained environments.

Key Features

Hermetically sealed construction with IP68-equivalent protection against harsh conditions.
High-accuracy, strain gauge-based pressure sensing technology.
Digital I²C interface with CRC for enhanced data communication integrity.
Robust 17-4PH stainless steel housing and pressure port.
Ultra-fast response time under 1 ms enables dynamic pressure monitoring.
Broad operating temperature range from -40°C to 125°C.
Wide supply voltage compatibility from 3.3V to 5.5V DC.
Compact and durable design optimized for industrial OEM integration.

Applications

Industrial hydraulic and pneumatic system pressure monitoring and control.
Gas pressure regulation and monitoring in process control and safety systems.
Smart water network pressure management and leak detection.
OEM integration into medical equipment, compressors, and test stands.
Condition monitoring in industrial machinery and mobile equipment.

Technical Specifications

Manufacturer Part Number	PTE7300-14AN-1B010BN
Pressure Range	0 to 10 bar (Gauge)
Output Interface	I²C Digital (with CRC)
Supply Voltage	3.3 to 5.5 V DC
Response Time	< 1 ms
Operating Temperature	-40°C to 125°C
Port Type	G1/4A BSPP
Housing Material	17-4PH Stainless Steel
Sensor Type	Strain Gauge
Length	75 mm
Width	28 mm
Weight	400 g

Frequently Asked Questions

What is the supply voltage range for the PTE7300 pressure transmitter?

The Sensata Technologies PTE7300 transmitter operates from a 3.3V to 5.5V DC supply. This wide range makes it directly compatible with both 3.3V and 5V microcontroller logic levels, such as those found on Arduino, Raspberry Pi, and industrial PLCs, without requiring an external level shifter.

What type of electrical output and communication protocol does it use?

This transmitter features a digital I²C interface. It includes a Cyclic Redundancy Check (CRC) on the data transmission to ensure communication integrity and accuracy, which is critical for reliable operation in industrial control and monitoring systems.

Is this sensor suitable for use with liquids or corrosive media?

Yes, the hermetically sealed 17-4PH stainless steel housing and G1/4A BSPP port provide robust protection against moisture and many corrosive media. This design makes it suitable for applications involving hydraulic fluids, water, compressed air, and non-aggressive gases.

What is the response time and how does it benefit my application?

The transmitter has an ultra-fast response time of less than 1 millisecond. This enables real-time pressure monitoring and control, which is essential for dynamic systems such as pneumatic actuators, fast-cycling machinery, and safety shut-off valves where rapid feedback is required.
