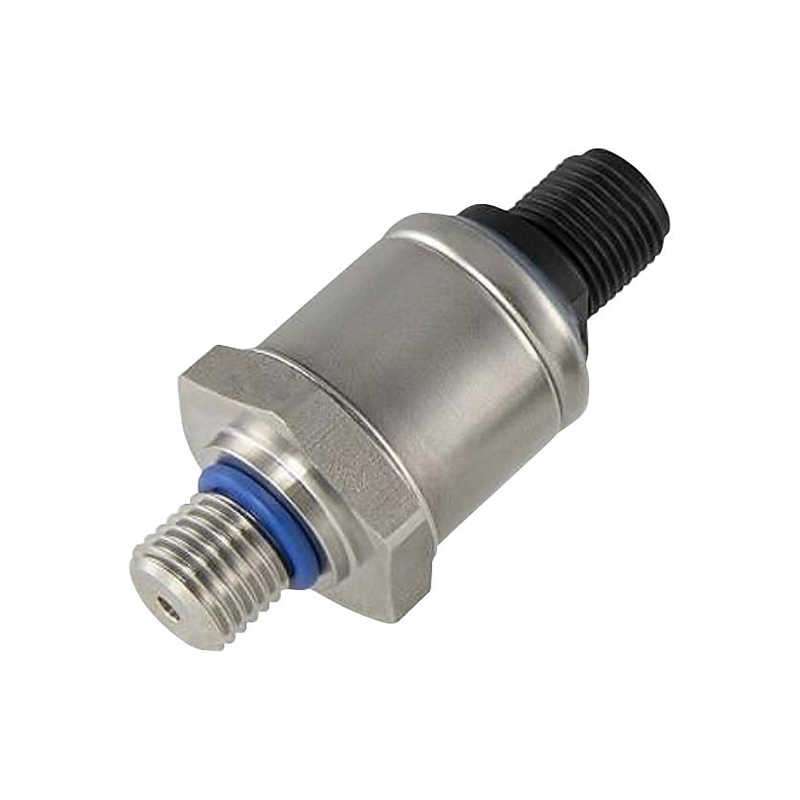

Sensata Technologies PTE7100-12AC-1B025BN Pressure Transmitter, Hermetic, Gauge, 0-25 bar, G1/4A BSPP, Metri-Pack 150

Name: Sensata Technologies PTE7100-12AC-1B025BN Pressure Transmitter, Hermetic, Gauge, 0-25 bar, G1/4A BSPP, Metri-Pack 150
Brand: Sensata Technologies
SKU: SENS-2165
Price: 9699.00 INR
Availability: OutOfStock

₹9,699.00 (Inclusive of all taxes)

Out of Stock

The Sensata Technologies PTE7100-12AC-1B025BN is a hermetically sealed, stainless steel pressure transmitter delivering a ratiometric 0.5–4.5VDC output for precise gauge pressure monitoring from 0 to 25 bar. Designed for industrial durability with a G1/4A BSPP port and Metri-Pack 150 connector, it integrates directly into hydraulic, HVAC, and automation control systems.

Features

Hermetically sealed 17-4PH stainless steel housing for superior media compatibility and durability.
Precise gauge pressure sensing across a 0 to 25 bar (0–2.5 MPa) measurement range.
Ratiometric 0.5–4.5VDC analog output for stable, supply-voltage-referenced readings.
Ruggedized for harsh environments with an operating temperature range of -40°C to 100°C.
Industry-standard G1/4A BSPP pressure port and Metri-Pack 150 connector for reliable system integration.

Out of stock

Get Notified When Available

Description

The PTE7100-12AC-1B025BN pressure transmitter from Sensata Technologies employs a robust strain gauge sensing element housed within a hermetically sealed, 17-4PH stainless steel body. This construction eliminates internal O-rings, providing enhanced resistance to a wide range of fluids and gases while ensuring long-term stability and protection against shock and vibration.

Its ratiometric voltage output signal (0.5–4.5VDC), proportional to the 5VDC supply, simplifies signal conditioning and improves accuracy in electrically noisy industrial environments. The transmitter is engineered for direct integration into hydraulic systems, compressors, and process automation, offering reliable performance across an extended temperature range from -40°C to 100°C.

Key Features

Hermetic port design with 17-4PH stainless steel construction for maximum durability and media resistance.
High-accuracy, temperature-compensated strain gauge sensing technology.
Wide operating temperature range from -40°C to 100°C for extreme environment deployment.
Ratiometric 0.5–4.5VDC output ensures consistent performance relative to the 5VDC supply voltage.
Integrated reverse voltage and short-circuit protection for enhanced electrical robustness.
Standard G1/4A BSPP (parallel pipe thread) pressure port for secure fluid/gas connections.
Sealed Metri-Pack 150 series connector provides a reliable, industry-standard electrical interface.
Optimized for high resistance to mechanical shock and vibration in mobile or industrial applications.

Applications

Hydraulic system pressure monitoring and control in mobile machinery and industrial presses.
Compressor discharge and suction pressure measurement in HVAC/R and industrial air systems.
Process fluid pressure monitoring in chemical processing and water treatment automation.
Fuel and oil pressure sensing in heavy-duty automotive and off-highway vehicle testing.
Pump and valve condition monitoring within industrial automation and PLC-controlled systems.

Technical Specifications

Manufacturer Part Number	PTE7100-12AC-1B025BN
Pressure Range	0 to 25 bar (Gauge)
Output Signal	0.5 – 4.5 VDC (Ratiometric)
Supply Voltage	5 VDC (±0.25V)
Pressure Port	G1/4A BSPP
Electrical Connector	Metri-Pack 150
Housing Material	17-4PH Stainless Steel
Operating Temperature	-40°C to 100°C
Pressure Type	Gauge
Sensor Technology	Strain Gauge
Length	75 mm
Width	28 mm
Weight	400 g

Frequently Asked Questions

What is the supply voltage requirement for the PTE7100-12AC-1B025BN pressure transmitter?

The transmitter requires a nominal 5 VDC supply, with a tight tolerance of ±0.25V. It is designed for ratiometric operation, meaning the 0.5–4.5VDC output signal is directly proportional to this supply voltage, ensuring stable readings even with minor supply variations.

What type of pressure port and electrical connector does this sensor use?

This unit features a G1/4A British Standard Pipe Parallel (BSPP) female pressure port for secure fluid/gas connections. The electrical interface is a sealed, industry-standard Metri-Pack 150 series connector, providing a robust and reliable connection for power and signal wires in harsh environments.

Is this sensor suitable for use with aggressive media or in wet environments?

Yes. The hermetically sealed 17-4PH stainless steel housing eliminates internal elastomer seals (O-rings), providing excellent compatibility with a wide range of fluids and gases and protecting the internal strain gauge from moisture and corrosive media. It is built for demanding industrial conditions.

How do I interpret the 0.5–4.5VDC ratiometric output signal?

The output voltage is linearly scaled between 0.5V (at 0 bar) and 4.5V (at 25 bar full scale). This signal is ratiometric to the 5V supply, so the actual output scales proportionally if the supply voltage changes slightly. For example, at 12.5 bar (50% of range), the output will be approximately 2.5V with a 5V supply.

What is the operating temperature range for this pressure transmitter?

The PTE7100-12AC-1B025BN is rated for continuous operation from -40°C to 100°C. This wide temperature range, combined with its robust construction, makes it suitable for applications in extreme climates, outdoor machinery, and high-temperature industrial processes.
