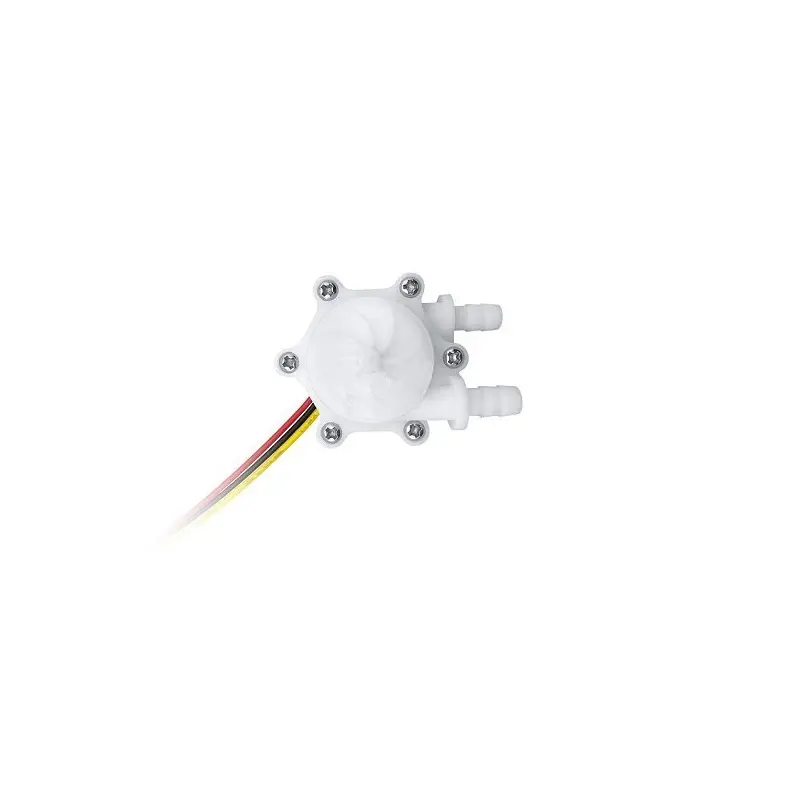

Saier HW06C Water Flow Sensor (0.15–1.5 L/min, 4.5–18V DC)
The Saier HW06C is a compact turbine-based water flow sensor designed for precise monitoring of low-flow liquid systems, compatible with 5V and 3.3V logic microcontrollers like Arduino and Raspberry Pi. It provides a digital pulse output for easy flow rate calculation in applications such as vending machines, water dispensers, and IoT monitoring.
Features
- Turbine-based sensor for accurate flow measurement from 0.15 to 1.5 liters per minute.
- Wide operating voltage range from 4.5V to 18V DC, compatible with 5V and 3.3V logic systems.
- Digital pulse output (Hall-effect) for straightforward integration with microcontrollers.
- Compact and durable housing designed for easy in-line installation in tight spaces.
- Suitable for monitoring water and compatible low-viscosity liquids in industrial and consumer appliances.
Out of stock
The Saier HW06C water flow sensor utilizes a Hall-effect turbine mechanism to generate a digital pulse signal proportional to the flow rate passing through its chamber. This design provides a reliable and contactless method for measuring liquid flow, ensuring long-term durability and minimal pressure drop. The sensor’s output is a clean square wave, making it simple to interface with common digital input pins on development boards and industrial controllers.
Constructed with a robust plastic housing and brass threaded fittings, the sensor is rated for working pressures up to 1.2 MPa. Its low current consumption (≤15mA) and wide voltage input make it versatile for battery-powered or mains-powered systems. The integrated signal conditioning provides a defined high-level output (≥4.5V) and low-level output (≤0.5V) for reliable digital communication.
Additional Information
| Weight | 0.029 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
