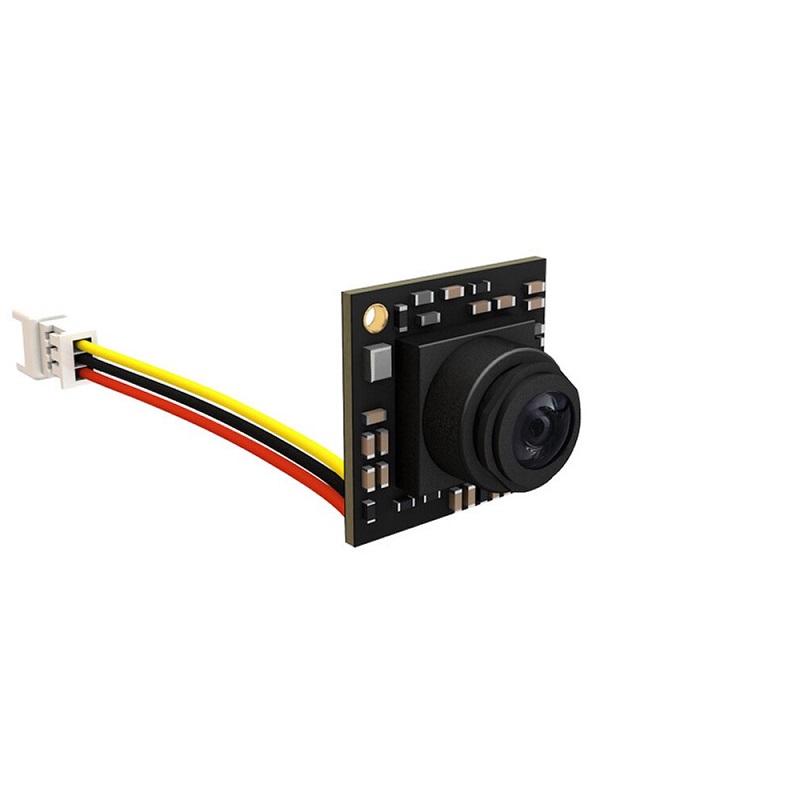

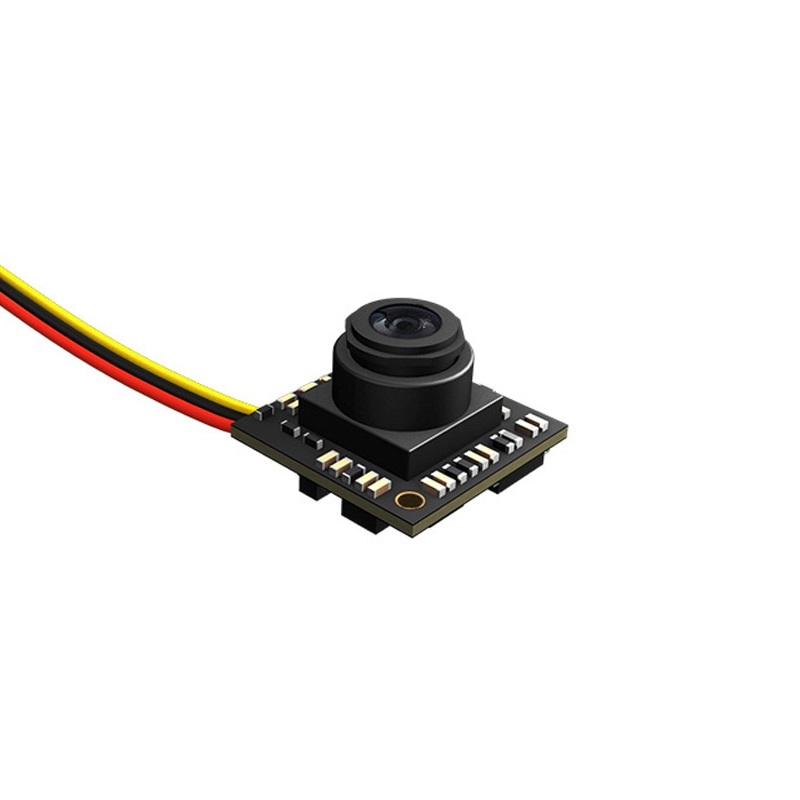

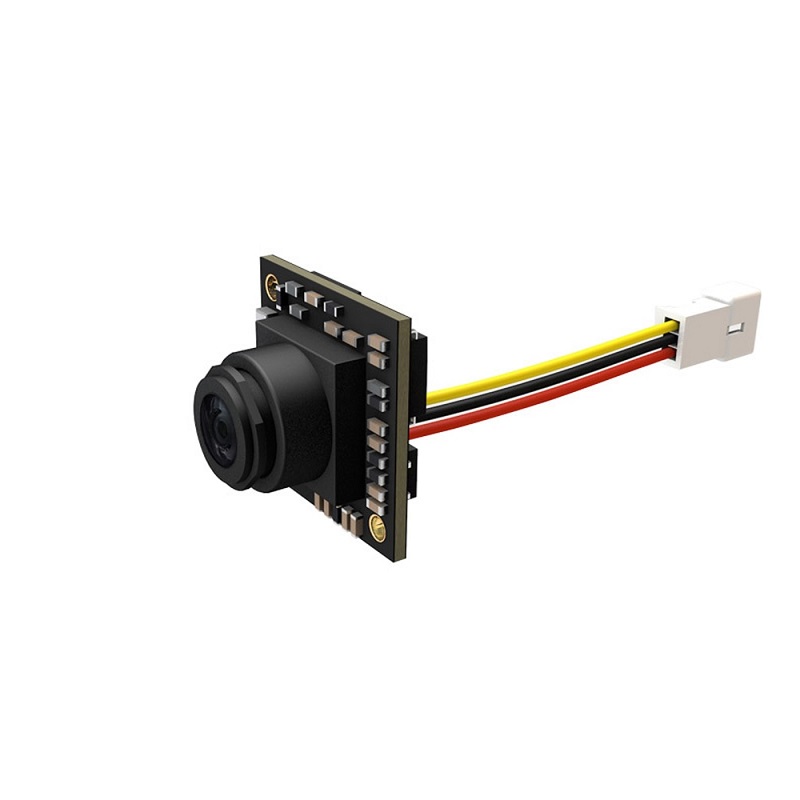

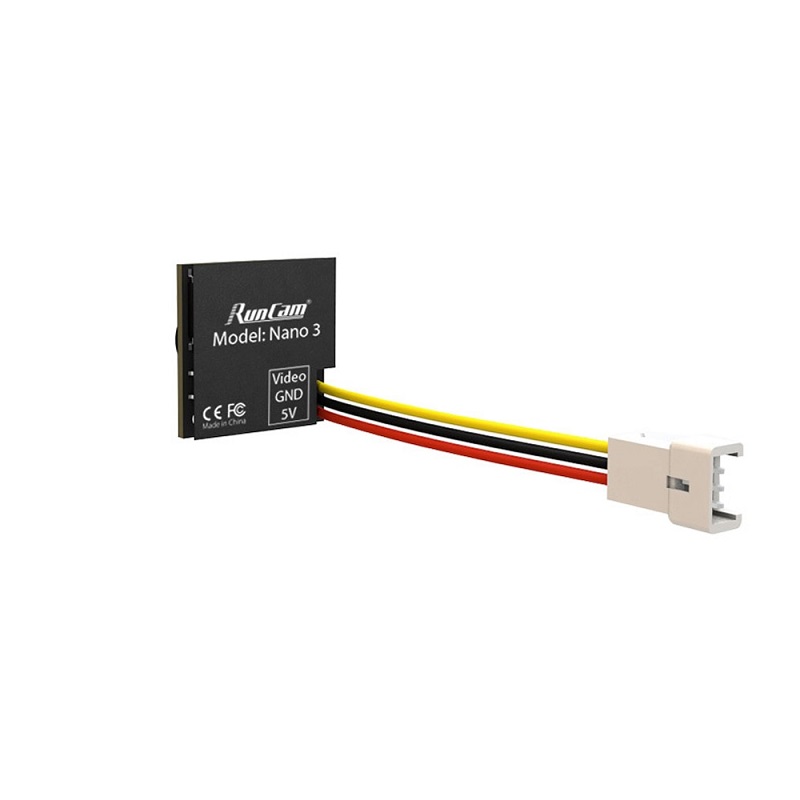

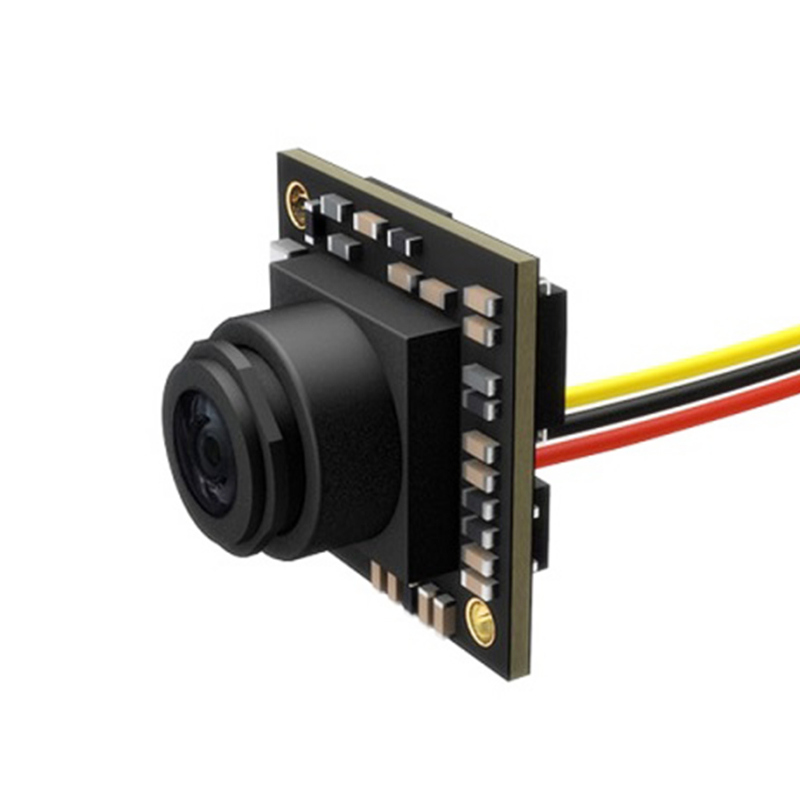

RunCam Nano 3 800TVL Camera
The RunCam Nano 3 is an ultra-lightweight 800TVL FPV camera designed for micro and whoop-class drones, featuring a 1/3″ CMOS sensor and a 160° FOV lens. It operates on 3.3-5V DC power and is a plug-and-play solution for Betaflight-compatible flight controllers.
Features
- Ultra-lightweight 1.1g design for micro and whoop-class drones
- 800TVL resolution from a 1/3″ CMOS sensor for enhanced image clarity
- Wide 160° field of view (FOV) with distortion correction
- Low-voltage operation from 3.3V to 5V DC, compatible with 1S LiPo setups
- Plug-and-play installation with no OSD menu or configuration required
Out of stock
The RunCam Nano 3 represents a significant miniaturization in FPV camera design, delivering a 1/3″ sensor in a package weighing just 1.1 grams. Its compact dimensions (14x14mm) make it an ideal drop-in upgrade for Tiny Whoop frames and other micro drones where every gram counts. The camera utilizes a 2.1mm M8 lens to achieve a 160-degree field of view while employing optical correction to minimize fisheye distortion.
Engineered for simplicity and reliability, the Nano 3 operates on a standard 3.3-5V DC input, drawing a maximum of 120mA at 3.3V. It outputs a clean 800TVL analog video signal compatible with PAL/NTSC systems, automatically selected based on the connected video transmitter. The ABS housing provides durability while maintaining the minimal weight critical for high-performance micro FPV flight.
Additional Information
| Weight | 0.0011 kg |
|---|---|
| Dimensions | 1.4 × 1.4 cm |
