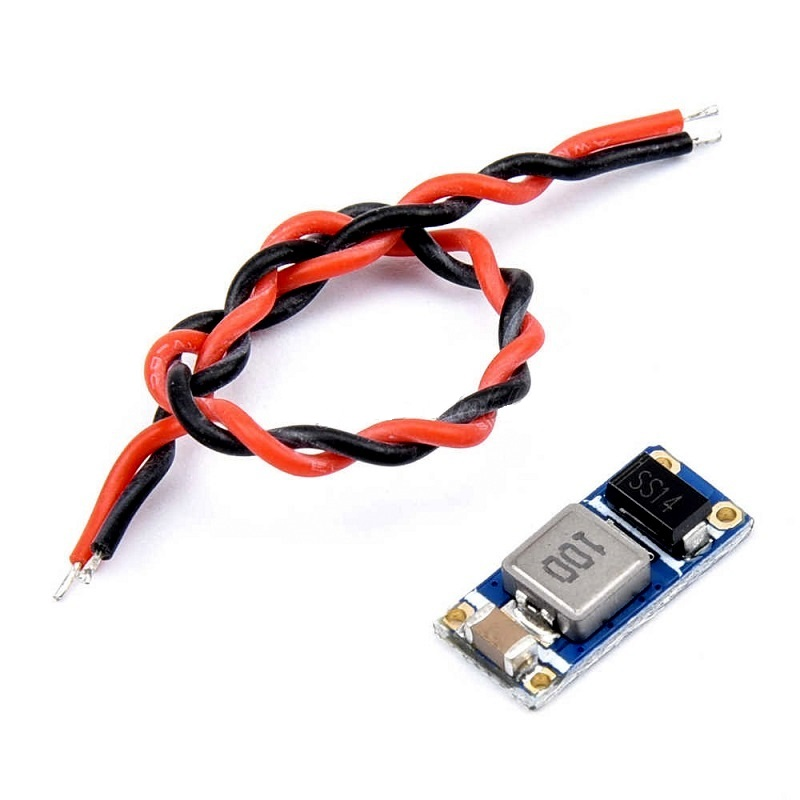

RTF LC Power Filter LC-FILTER 2A 2-4S Lipo for FPV & Immersion RC - Black
The RTF LC Power Filter is a compact LC-type filter designed to clean noisy DC power supplies up to 16V and 2A, specifically for sensitive FPV video systems and RC components operating on 2-4S LiPo batteries.
Features
- LC filter circuit attenuates high-frequency power supply noise and interference.
- Common-mode filtering on both positive and negative power leads for enhanced noise reduction.
- Built-in reverse polarity protection safeguards connected electronics.
- Compact and lightweight design (35x14x13mm, 8g) for easy integration into tight builds.
- Maximum rating of 16V input and 2A continuous current, suitable for 2-4S LiPo setups.
Out of stock
This LC power filter utilizes a low-pass circuit with large-value inductor and capacitor components to suppress high-frequency noise commonly generated by ESCs, switch-mode BECs, and long power leads in single-battery FPV setups. By filtering both supply rails, it effectively mitigates video banding, lines, and dropouts that degrade FPV feed quality.
Its robust construction is engineered for the demanding electrical environment of multirotors and RC aircraft, providing a clean power source for video transmitters, cameras, and sensitive flight controllers. The filter’s compact footprint allows for installation in space-constrained builds without adding significant weight.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 3.5 × 1.4 × 1.3 cm |
