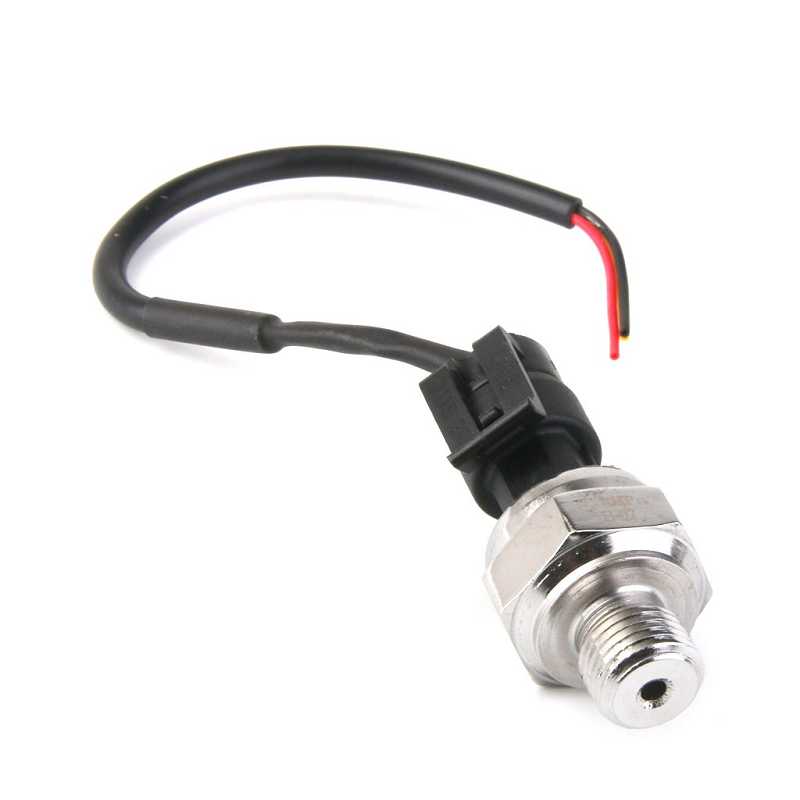

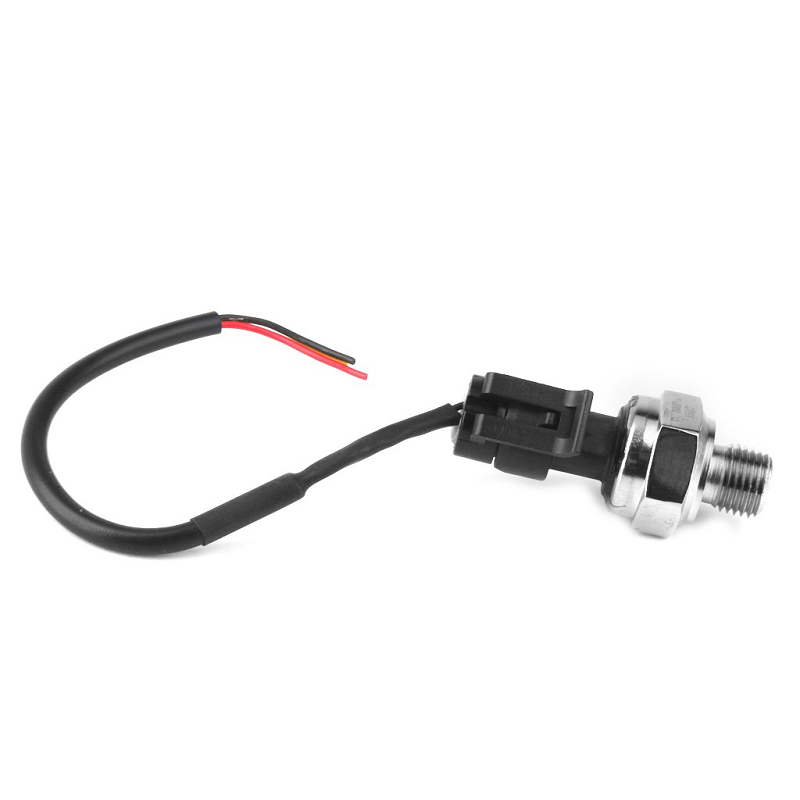

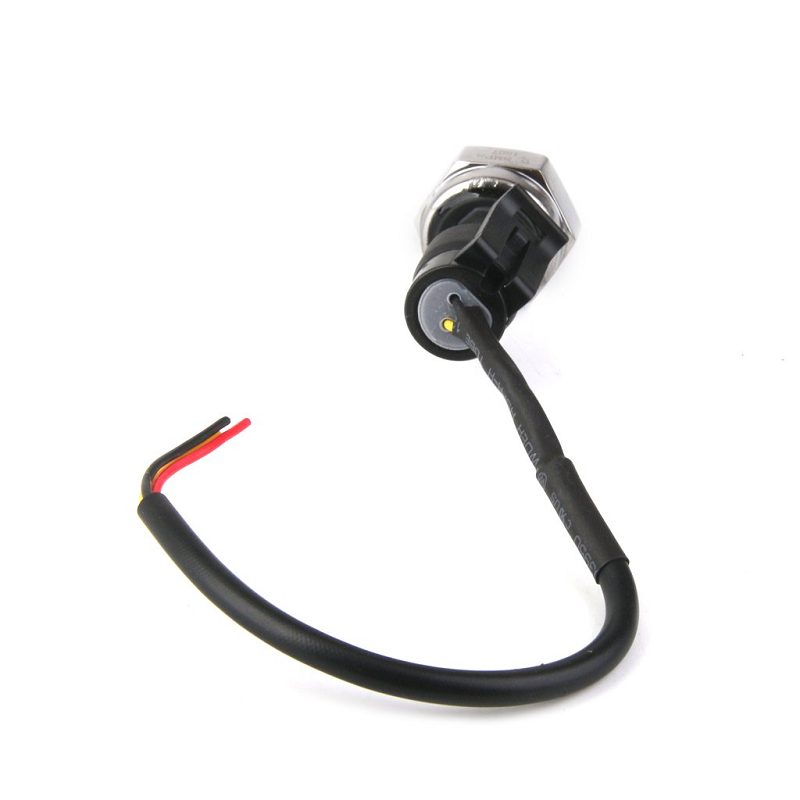

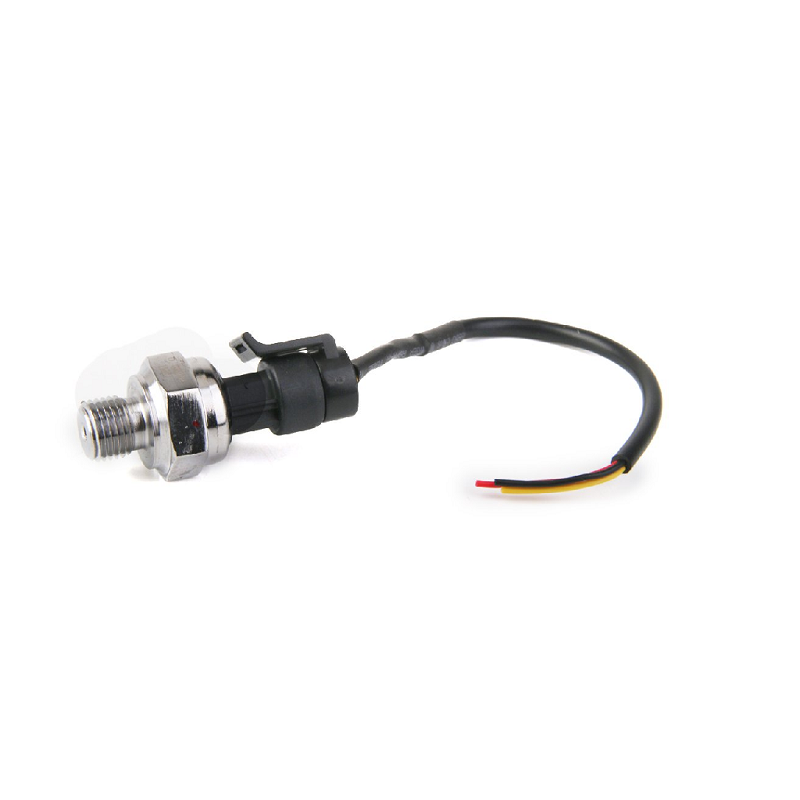

Robu 1.6MPa Stainless Steel Pressure Transducer Sensor - G1/4" Thread, 0.5-4.5V Output

Name: Robu 1.6MPa Stainless Steel Pressure Transducer Sensor - G1/4" Thread, 0.5-4.5V Output
Brand: Robu
SKU: SENS-2180
Price: 1179.00 INR
Availability: OutOfStock

₹1,179.00 (Inclusive of all taxes)

Out of Stock

This 1.6 MPa stainless steel pressure transducer provides a 0.5-4.5V analog output signal from a 5VDC supply, making it compatible with Arduino, PLCs, and industrial data acquisition systems for precise pressure monitoring of gases, liquids, and oils.

Features

Stainless Steel G1/4″ Threaded Housing for robust installation in liquid and gas lines.
0.5-4.5V Analog Output proportional to 0-1.6 MPa pressure range.
5VDC Operating Voltage for easy integration with microcontroller and industrial logic systems.
1% FS Accuracy ensures reliable pressure measurement for control and monitoring applications.
Compact form factor (50mm length, 20mm width) for space-constrained installations.

Out of stock

Get Notified When Available

Description

This pressure transducer utilizes a high-stability sensing element with precision compensation technology to deliver accurate and repeatable measurements of fluid and gas pressure. The stainless steel body and integrated surge protection ensure durability and reliable operation in industrial environments.

It outputs a ratiometric analog voltage signal, simplifying interface with ADCs on microcontrollers or programmable logic controllers (PLCs). Its compact, threaded design allows for direct inline installation in pipelines and pressurized systems.

Key Features

High-quality stainless steel construction for corrosion resistance and long-term durability.
Precision-compensated sensing element for stable and reliable output over the operating life.
Integrated surge voltage protection enhances resilience against electrical transients.
Lightweight, compact design with standard G1/4" thread for straightforward mechanical integration.
Low 1% Full Scale (FS) error encompassing nonlinearity, hysteresis, and repeatability.
Wide compatibility with gases, liquids, and oils for versatile application use.

Applications

Hydraulic and pneumatic system pressure monitoring and control.
Fuel tank and oil reservoir pressure measurement in automotive and industrial equipment.
Process pressure sensing in water treatment and liquid handling systems.
Compressed air line monitoring for HVAC and manufacturing tools.
Pressure feedback in pump control and fluid dispensing applications.

Technical Specifications

Model / Name	Pressure Sensor
Operating Voltage	5 VDC
Pressure Range	0 - 1.6 MPa
Output Signal	0.5 ~ 4.5 V (Analog)
Accuracy	1% FS
Body Material	Stainless Steel

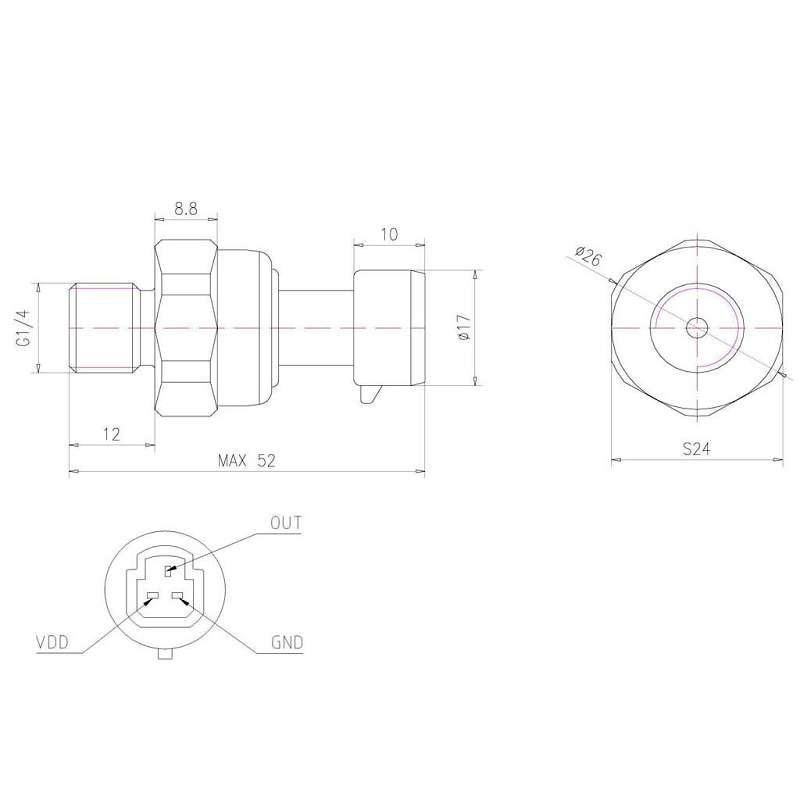

Thread Size	G 1/4"
Length	50 mm
Width	20 mm
Weight	70 g

Frequently Asked Questions

What is the output signal and how do I interface it with an Arduino?

The sensor provides a ratiometric analog voltage output from 0.5V to 4.5V corresponding to the 0-1.6 MPa pressure range. Connect the output pin to an analog input (ADC) pin on your Arduino. The 5V supply for the sensor can be sourced from the Arduino's 5V pin. The output voltage can be scaled linearly to calculate the applied pressure.

Is this sensor suitable for measuring liquid pressure?

Yes, the stainless steel body and G1/4" threaded port make it suitable for measuring the pressure of compatible liquids, oils, and gases. Ensure the fluid media is chemically compatible with 304 stainless steel to prevent corrosion.

What is the meaning of '1% FS' accuracy?

'1% FS' stands for 1% of Full Scale. For this 1.6 MPa sensor, the maximum error across its operating range, including nonlinearity, hysteresis, and repeatability, will be within ±0.016 MPa (1.6 MPa * 0.01). This defines the sensor's overall measurement precision.

Can this sensor be used with a 3.3V microcontroller system?

The sensor requires a 5VDC supply for proper operation. While the supply must be 5V, the 0.5-4.5V analog output signal is within the typical 0-3.3V input range of a 3.3V ADC. Ensure your ADC is 5V tolerant or use a simple resistive voltage divider to scale the output down if necessary.
