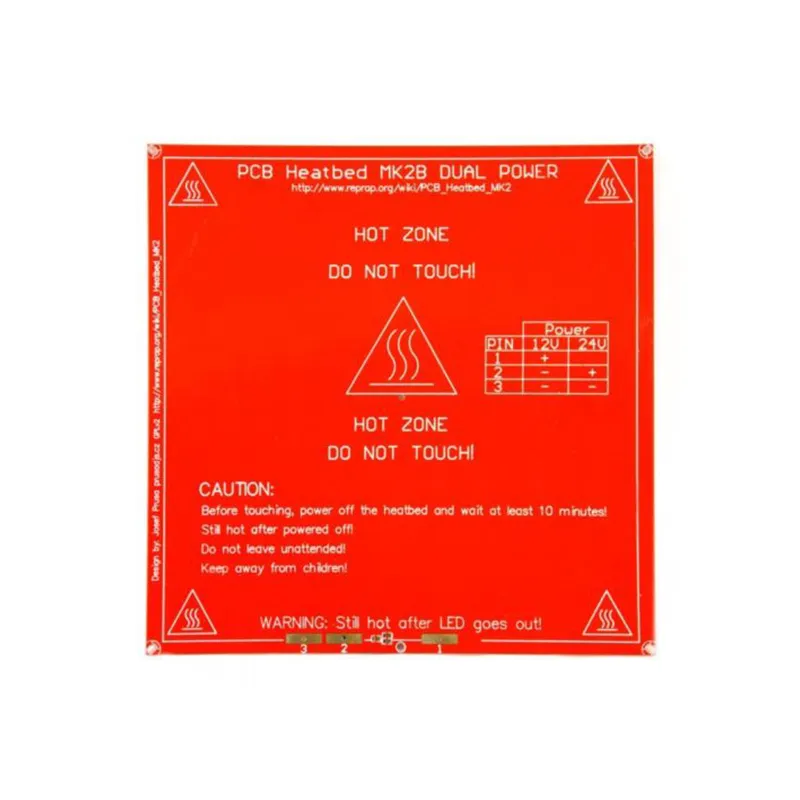

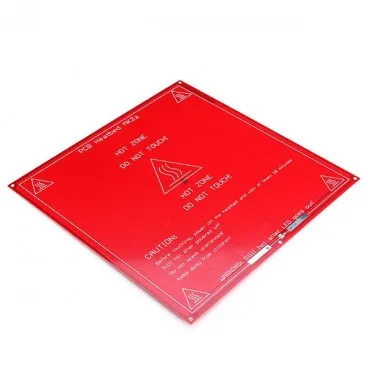

RepRap MK2B Dual Power PCB Heat Bed with 18AWG Cable
The RepRap MK2B Dual Power PCB Heat Bed is an essential upgrade for 3D printers, designed for reliable and consistent thermal performance. Compatible with both 12V and 24V power supplies, this robust heat bed ensures optimal print adhesion and facilitates easier bed leveling with its unique three-point mounting system.
Features
- Versatile Dual Power Input: Seamlessly operates with 12V or 24V DC systems, delivering a stable 144W output for consistent heating.
- Optimized Heating Area: Features a 214x214mm outer dimension with a 200x200mm active heating surface, ideal for various print sizes.
- Effortless Bed Leveling: Innovative central mounting hole design simplifies three-point calibration, enhancing print quality and setup efficiency.
- Durable Copper Construction: Manufactured with a 2-layer, 35μm copper PCB and copper plated holes for superior conductivity and longevity.
- Integrated 18AWG Cable: Supplied with a high-quality 18AWG power cable, ensuring secure and efficient connection to control boards like RUMBA.
Out of stock
The RepRap MK2B Dual Power PCB Heat Bed offers a significant enhancement for most open-source 3D printer setups. Its unique three-point mounting system, featuring a central front mounting hole, vastly simplifies the bed leveling process compared to traditional four-point configurations. Users can easily level one side with two holes, fix it, and then level the remaining single-hole side, ensuring a perfectly planar print surface. For optimal flatness and rigidity, the use of a glass plate atop the heat bed is highly recommended.
This heat bed is engineered for robust power delivery and ease of assembly. The solder pads have been substantially enlarged, accommodating 1206 surface mount components with greater ease and simplifying wiring. It supports flexible power connections; for 12V operation, connect to lines 1 and (2+3), achieving 1.0-1.2Ω resistance. For 24V, connect to lines 2 and 3, resulting in 4.0Ω resistance. In either configuration, the circuit ensures a stable 144W power output, providing reliable and consistent heating across the active area.
Rigorous testing confirms the heat bed’s efficiency and stability. When operating at 12V, the current typically starts around 9.8A, gradually reducing to 8.8A as the temperature rises due to increased resistance. At 24V, the theoretical maximum current draw remains safely below 5A, making it suitable for a wide range of power supply units without excessive strain.
Additional Information
| Weight | 0.19 kg |
|---|---|
| Dimensions | 21.4 × 21.4 × 2 cm |
