Reflex Drive RD MI-5008 6S KV340 UAV Brushless Motor

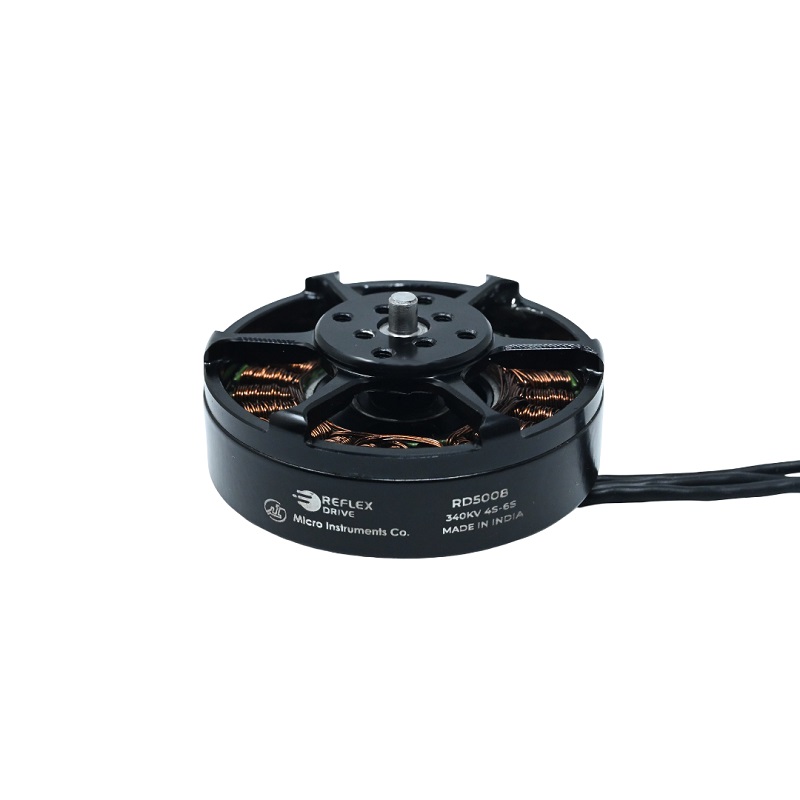

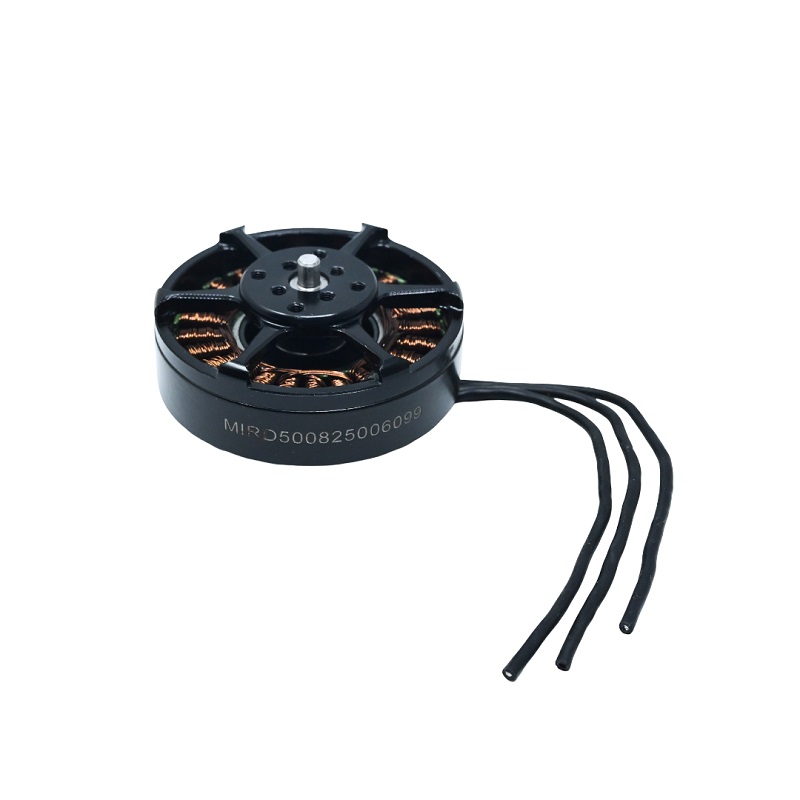

The Reflex Drive RD MI-5008 is a high-efficiency 340KV brushless outrunner motor engineered for 6S LiPo systems, delivering 1224W of power for demanding industrial and enterprise UAV platforms. It is optimized for 15″ to 18″ propellers and integrates advanced cooling for sustained high-thrust operations in quadcopter, hexacopter, and VTOL airframes.
Features
- High-efficiency 340KV outrunner design with 90.99% peak efficiency for extended flight endurance.
- Rated for 6S LiPo voltage with a maximum continuous current of 51A and 1224W power output.
- Optimized for large 15″ to 18″ propellers, supporting significant payload capacities for industrial UAVs.
- Robust IP34 ingress protection rating for resistance against dust and water splashes.
- Lightweight 137g construction with 15 AWG high-current silicone cables for reliable power delivery.
Out of stock
The Reflex Drive RD MI-5008 motor is engineered for reliability and performance in professional UAV applications. Its 24-slot stator and 100% copper windings are designed to minimize electrical losses and maximize torque output, making it suitable for high-thrust scenarios. The integrated advanced cooling system ensures stable thermal performance during prolonged, high-power operations.
Built with durability in mind, the motor’s IP34-rated housing protects internal components from environmental contaminants like dust and moisture. This makes it a robust choice for agricultural, mapping, and inspection drones operating in varied conditions. The motor’s specifications are precisely matched to support multirotor configurations, from agile quadcopters to heavy-lift octocopters, with clear maximum take-off weight guidelines for each frame type.
Additional Information
| Weight | 0.19 kg |
|---|---|
| Dimensions | 11 × 12 × 6 cm |
