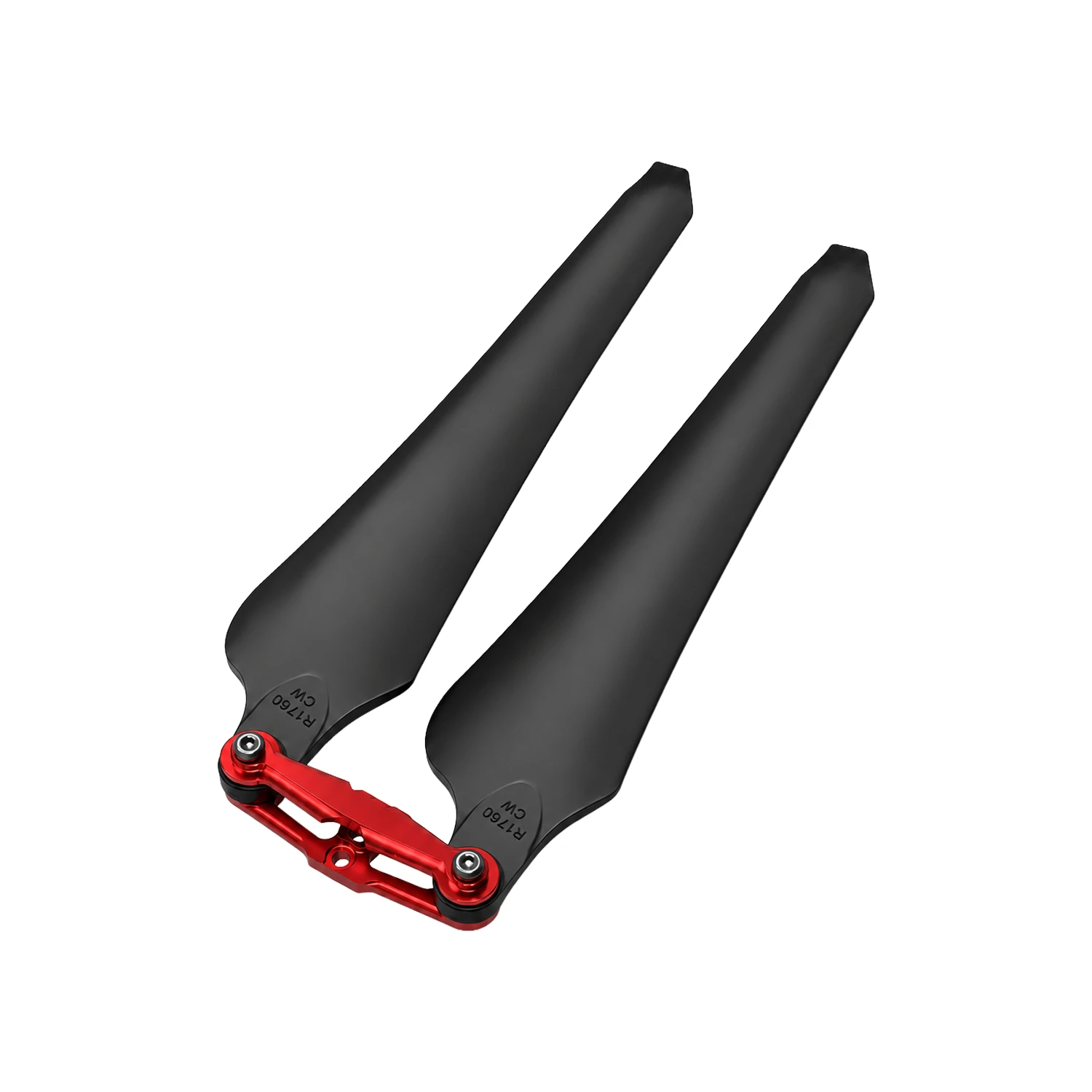

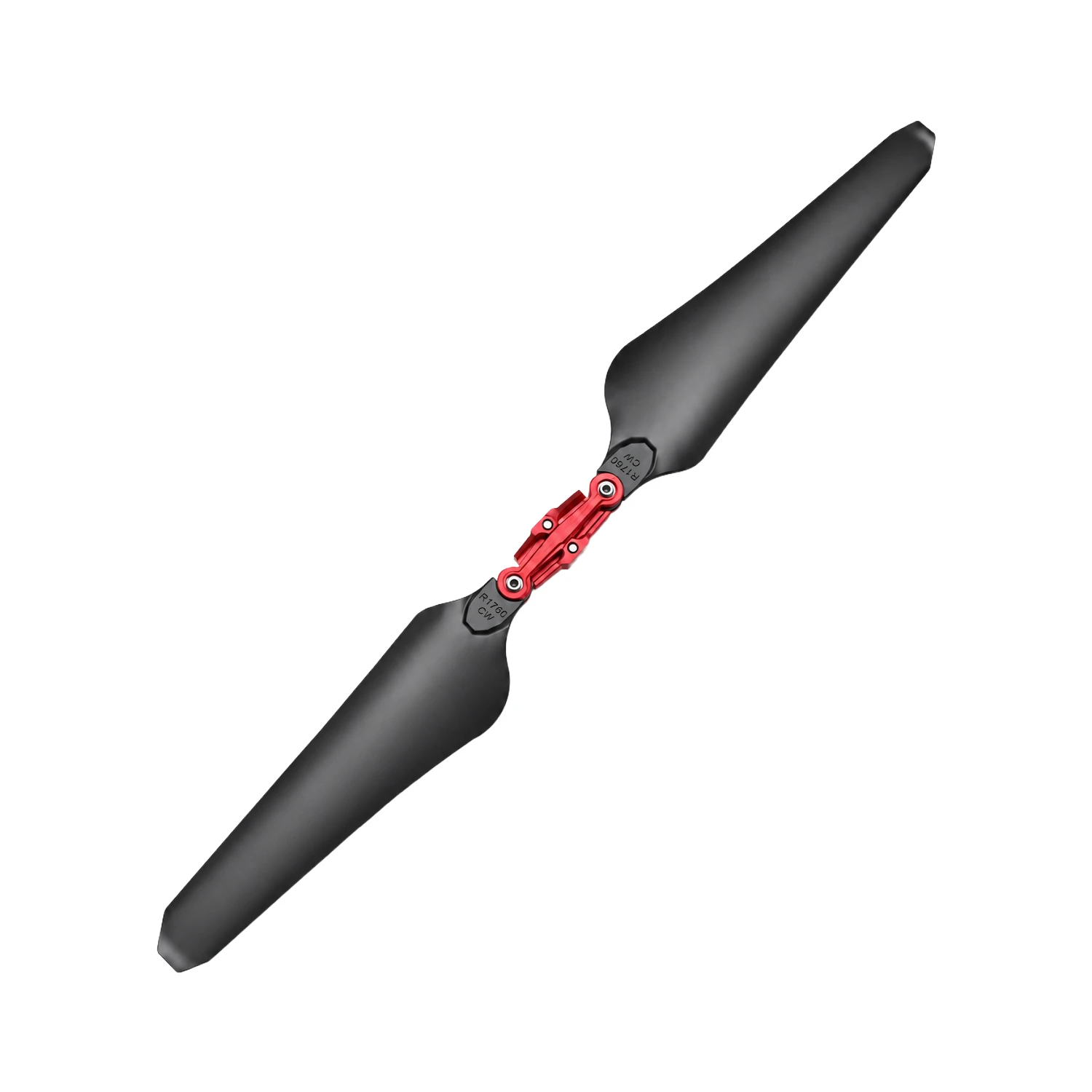

Reflex Drive RD 1760 17 inch Folding Propeller with Hub - CW

Name: Reflex Drive RD 1760 17 inch Folding Propeller with Hub - CW
Brand: Reflex Drive
SKU: DRFC-1559
Price: 3569.00 INR
Availability: OutOfStock

₹3,569.00 (Inclusive of all taxes)

Out of Stock

The Reflex Drive RD 1760 is a 17-inch folding propeller designed for heavy-lift UAV and multirotor applications. Its CW rotation and integrated aluminum hub provide a secure, direct-mount interface for high-torque motors, optimizing aerodynamic efficiency and in-flight stability.

Features

17-inch diameter with 6-inch pitch for high-thrust heavy-lift applications.
Folding blade design reduces drag and footprint for transport and storage.
Constructed from durable, lightweight polycarbonate for high RPM resilience.
Integrated aluminum hub ensures a secure, direct mount to motor shafts.
Clockwise (CW) rotation direction for standard multirotor motor configurations.

Out of stock

Get Notified When Available

Description

The Reflex Drive RD 1760 propeller leverages a 17-inch blade span and 6-inch pitch to generate substantial lift, making it suitable for demanding UAV payloads and extended flight times. Its folding mechanism is engineered to minimize aerodynamic drag during forward flight and protect blades during landing or transport.

Manufactured from high-grade polycarbonate, the propeller maintains structural integrity under high rotational stresses while keeping overall weight low. The integrated aluminum hub provides a robust mounting solution, ensuring precise alignment and power transfer from the motor shaft to the blade assembly.

Key Features

High-Thrust Aerodynamic Profile: 17x6 blade geometry optimized for efficient lift and stable hover performance.
Folding Blade Mechanism: Blades pivot to reduce frontal area, decreasing drag in forward flight and simplifying storage.
Durable Polycarbonate Construction: Offers an excellent balance of impact resistance, flexibility, and low weight for demanding flight regimes.
Integrated Aluminum Hub: Provides a secure, slop-free connection to the motor shaft, enhancing power transmission efficiency.
Precision-Balanced Design: Engineered for smooth operation at high RPMs, reducing vibration for improved flight control and video stability.

Applications

Heavy-lift cinematography drones requiring high thrust and efficient cruise performance.
Agricultural spraying or mapping UAVs with large frames and substantial payloads.
Long-endurance surveillance or cargo multirotors operating on 6S-12S LiPo battery systems.
Industrial inspection drones where reduced storage footprint is a critical logistical factor.

Technical Specifications

Model	RD 1760
Diameter	17 inch
Pitch	6 inch
Rotation Direction	Clockwise (CW)
Material	Polycarbonate
Hub Material	Aluminum
Weight (per propeller)	40 g
Color	Black

Frequently Asked Questions

What is the primary advantage of a folding propeller like the RD 1760?

The folding design significantly reduces aerodynamic drag during forward flight, improving efficiency and flight time. It also minimizes the drone's footprint for safer transport and storage, as the blades collapse when the motor is not spinning.

What type of motors and drones is this propeller compatible with?

The RD 1760 is designed for high-torque, low-KV brushless motors typically used on large heavy-lift and industrial multirotor frames. It is suitable for drones operating on 6S to 12S LiPo battery systems that require a 17-inch diameter propeller for maximum thrust.

How do I install the propeller using the integrated hub?

The aluminum hub is designed for a direct, secure mount onto the motor shaft. Ensure the motor shaft is clean, align the hub's mounting holes with the motor's bolt pattern or shaft adapter, and secure it using the appropriate hardware (usually M5 bolts). Always use a thread-locking compound on the fasteners.
