Raspberry Pi GPIO BCM Pinout Reference Board

Description

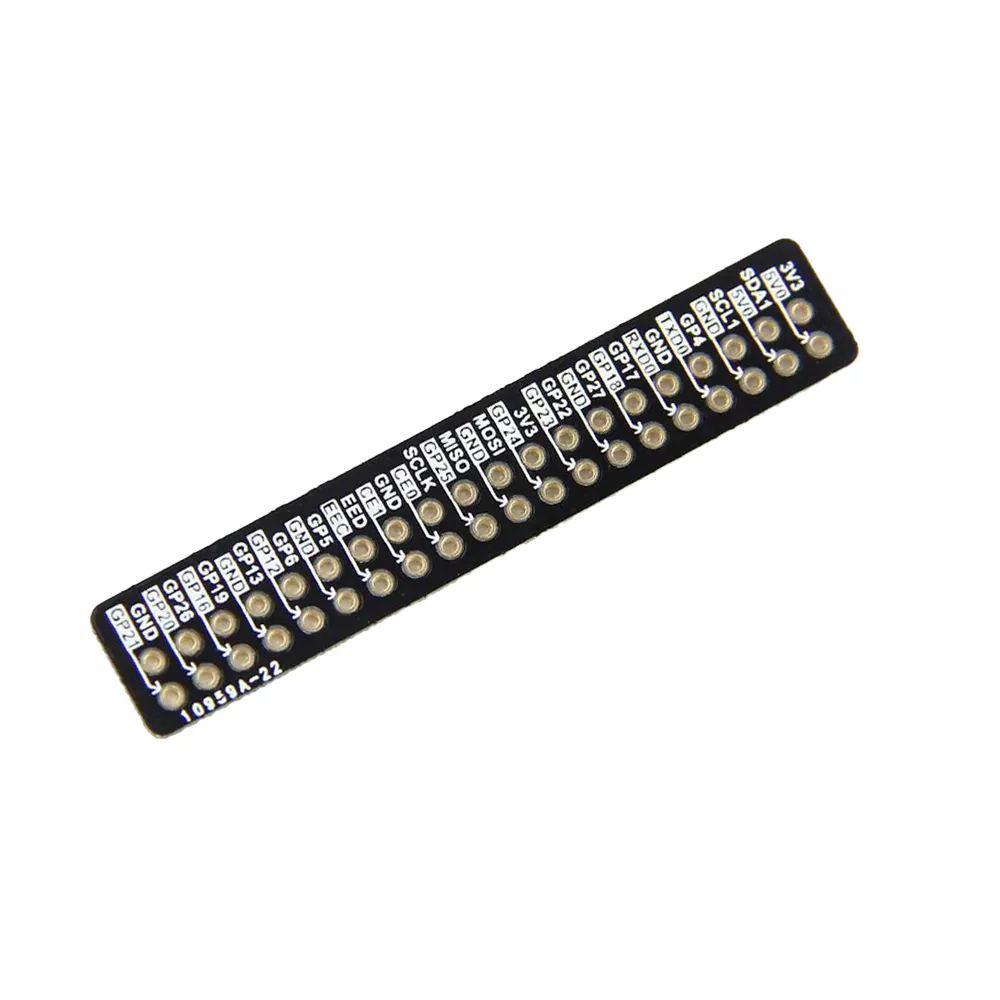

This Raspberry Pi GPIO Reference Board is an essential tool for anyone working with Raspberry Pi’s GPIO pins, from hobbyists to professional developers. It significantly simplifies the process of connecting external components by providing a clear, readily accessible BCM pinout diagram. No more guessing or constantly consulting online documentation; this board ensures you connect your wires correctly every time, minimizing errors and saving valuable development time.

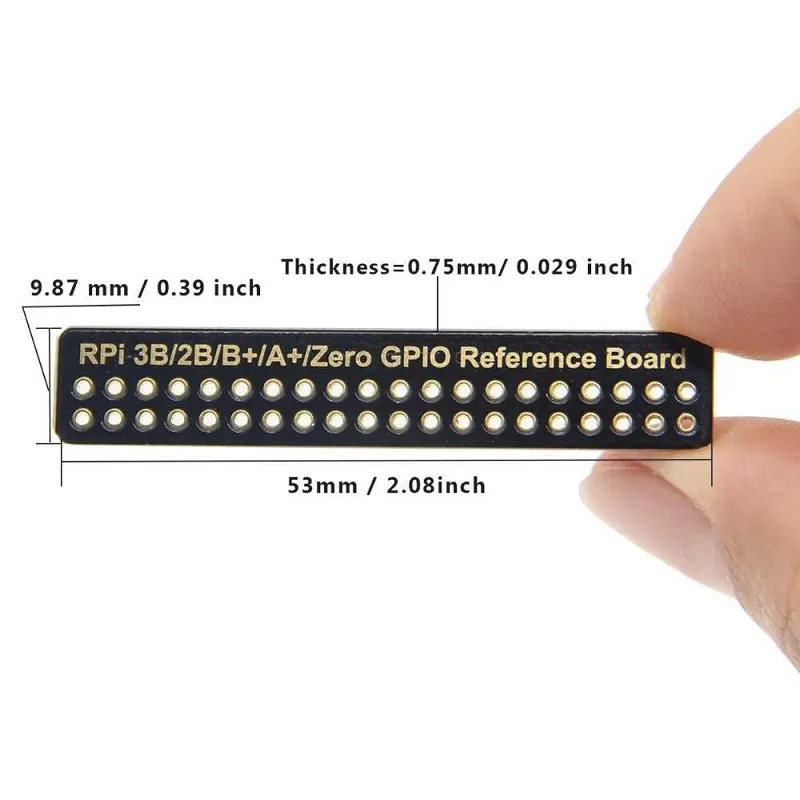

Designed for broad compatibility, this reference board supports nearly all mainstream Raspberry Pi models, including the A+, B+, Zero, 2, 3, 3B+, and 4B. Its robust 0.8mm PCB construction ensures durability, while the double-sided printing guarantees that pin labels are always visible, regardless of orientation. Whether you’re setting up a complex sensor array or simply toggling an LED, this board makes GPIO management straightforward and efficient.
