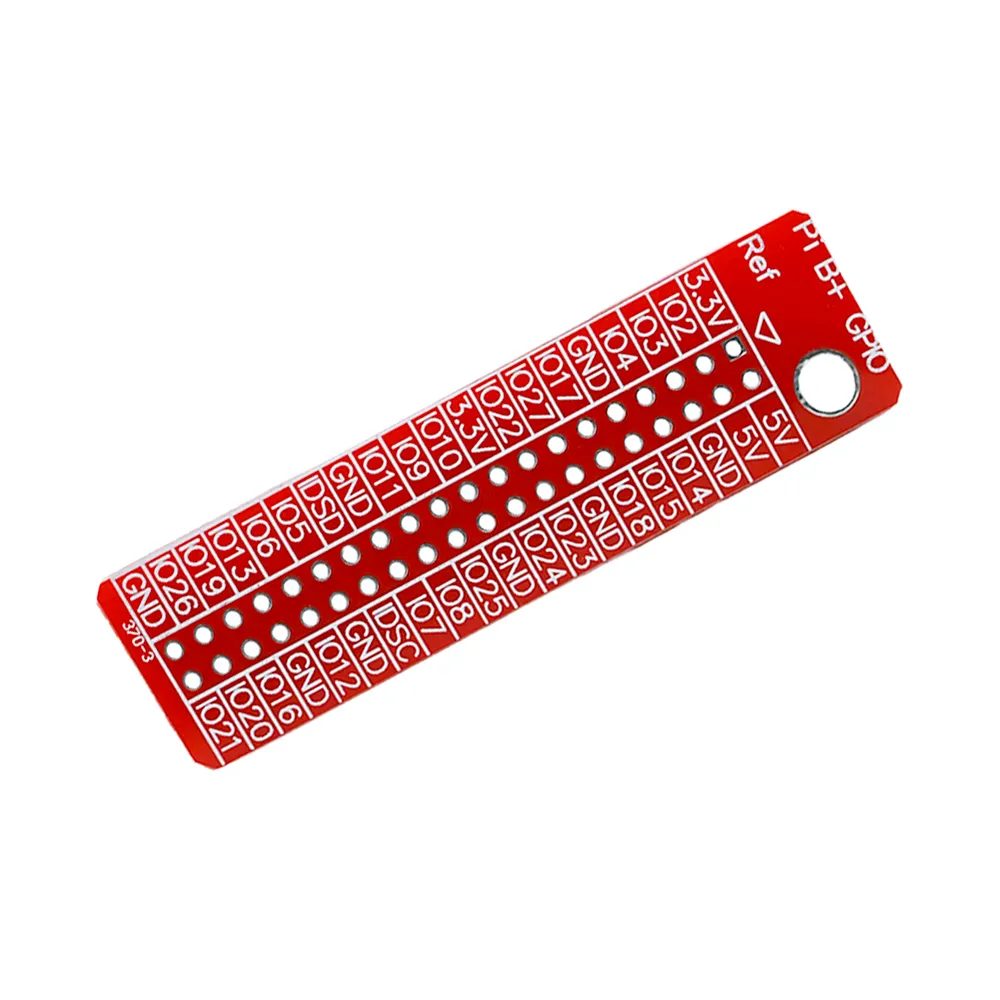

Raspberry Pi 40-Pin GPIO Reference Board
This 40-pin GPIO Reference Board is a simple and essential accessory for any Raspberry Pi with a 40-pin header. It provides a quick visual guide to the pin functions, accelerating prototyping and project setup without needing to consult pinout diagrams.
Features
- Instantly identify all 40 Raspberry Pi GPIO pin functions directly on the header.
- Compatible with Raspberry Pi Model A+, B+, Pi 2, Pi 3, and Pi Zero series.
- Compact and lightweight design with a keyring hole for portability.
- Simplifies prototyping and debugging by eliminating guesswork for pin assignments.
Out of stock
The 40-pin GPIO Reference Board is designed as a practical, easy-to-use tool for developers and hobbyists working with Raspberry Pi. By simply placing it onto your Raspberry Pi’s 40-pin GPIO header, you gain immediate access to a clear label of each pin’s function, including power, ground, and various I/O capabilities.
This handy reference board streamlines the development process, reducing the time spent cross-referencing datasheets and ensuring correct wiring for your projects. Its durable, compact form factor, combined with a convenient keyring hole, makes it an ideal companion for on-the-go troubleshooting or quick setup in various environments. It’s fully compatible with all 40-pin Raspberry Pi models, offering universal utility across a wide range of Raspberry Pi boards.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 6.2 × 1.1 × 0.2 cm |
