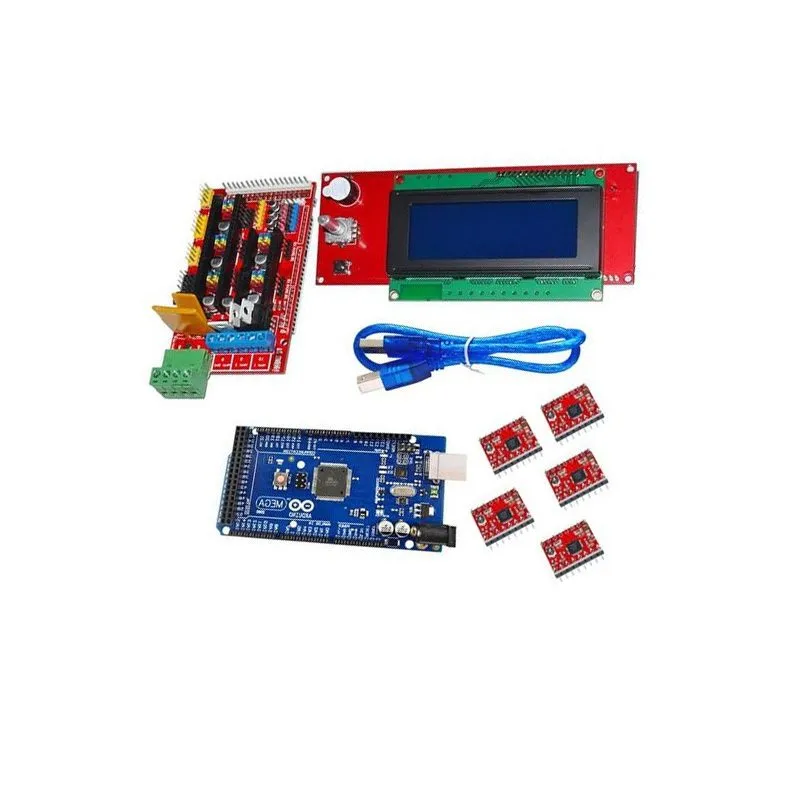

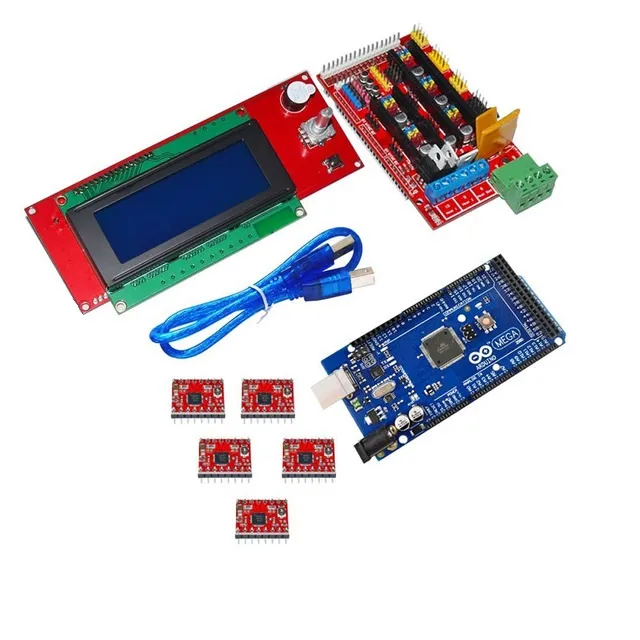

RAMPS 1.4 Mega2560 A4988 LCD 2004 3D Printer Controller Kit
This comprehensive kit provides the essential electronics for your RepRap or custom 3D printer, featuring a RAMPS 1.4 controller, Mega2560, five A4988 stepper drivers with heatsinks, and an LCD 2004 display for PC-free operation and expanded control.
Features
- Integrated RAMPS 1.4 shield centralizes RepRap electronics.
- Powerful Mega2560 microcontroller offers extensive I/O and processing.
- Includes five A4988 drivers for precise control of up to five stepper motors.
- LCD 2004 Smart Controller enables standalone 3D printing from SD card.
- Modular design supports easy servicing, upgrades, and future expansions.
Out of stock

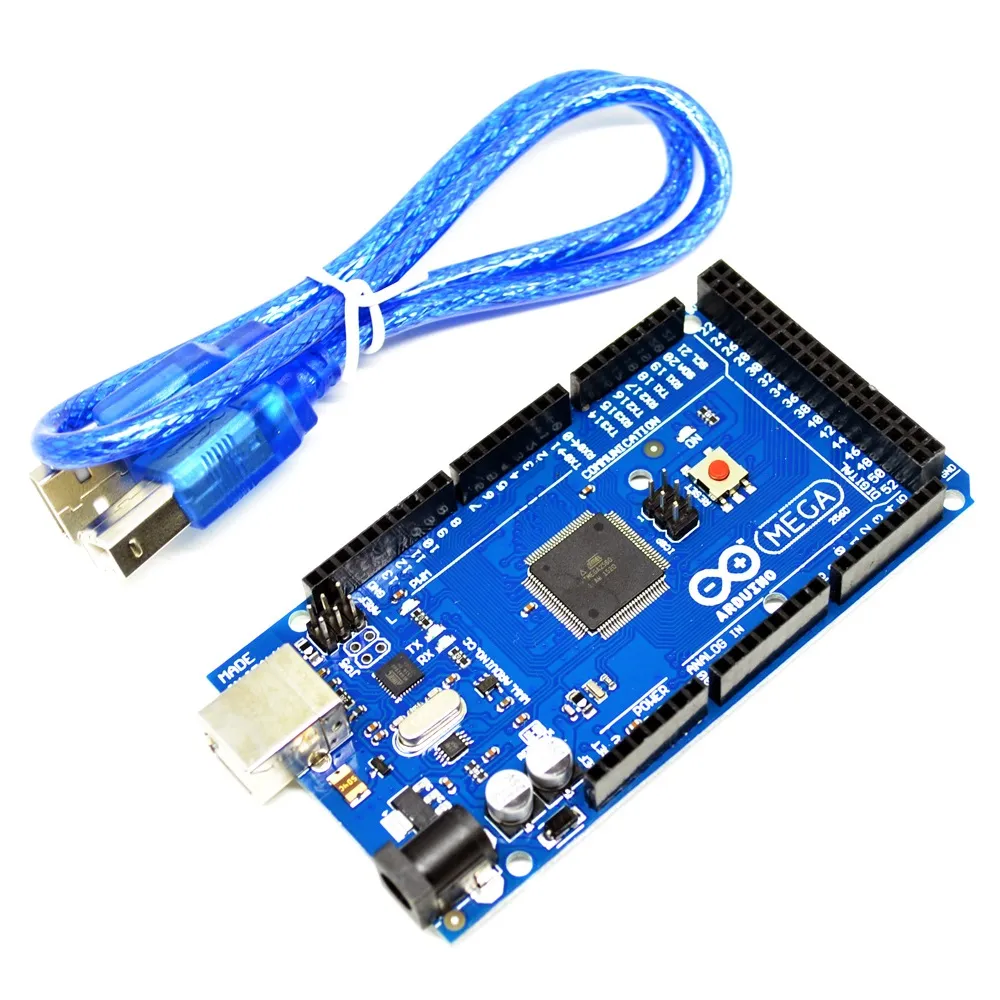

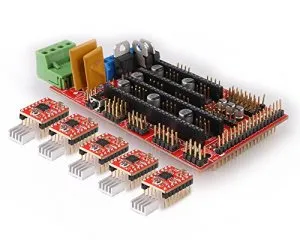

The RAMPS 1.4 controller board is designed to consolidate all the necessary electronics for a RepRap 3D printer onto a single, cost-effective package. It interfaces seamlessly with the powerful Arduino Mega2560 platform, providing ample room for expansion. The modular architecture, featuring plug-in stepper drivers and extruder control electronics on an Arduino MEGA shield, simplifies maintenance, part replacement, and upgrades. The Mega2560 itself boasts an ATmega2560 microcontroller with 54 digital I/O terminals, 16 analog inputs, and 4 UARTs, ensuring robust performance for complex 3D printing tasks.
This kit includes five A4988 DMOS micro-stepping drivers, each capable of controlling one bipolar stepper motor at up to 2 A output current per coil, complete with over-current protection and heatsinks for stable operation. The LCD 2004 graphic Smart Controller enhances user experience by providing a 20×04 dot matrix display, an SD-Card reader, and a rotary encoder. This allows for PC-free operation, enabling users to calibrate, move axes, and print 3D designs directly from a G-code stored on the SD card, connecting easily via the included smart adapter.
Additional Information
| Weight | 0.58 kg |
|---|---|
| Dimensions | 10 × 7 × 5 cm |
