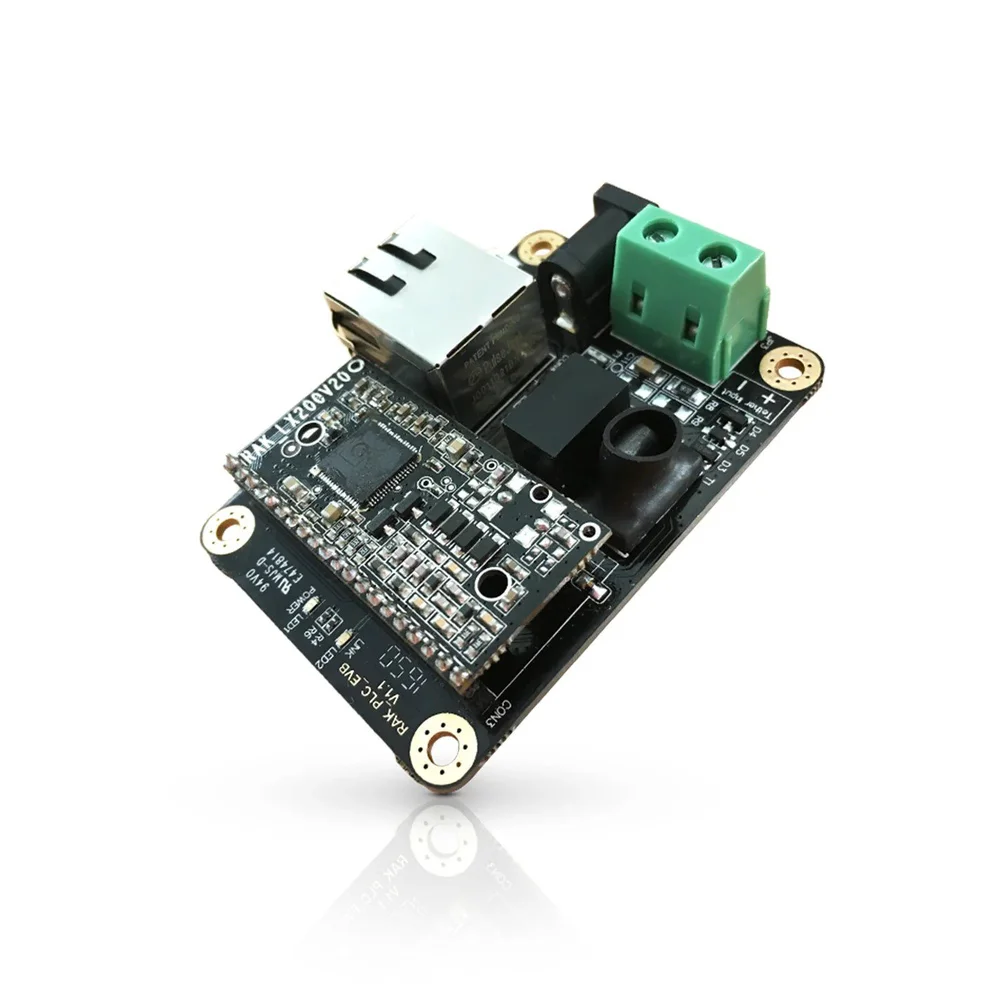

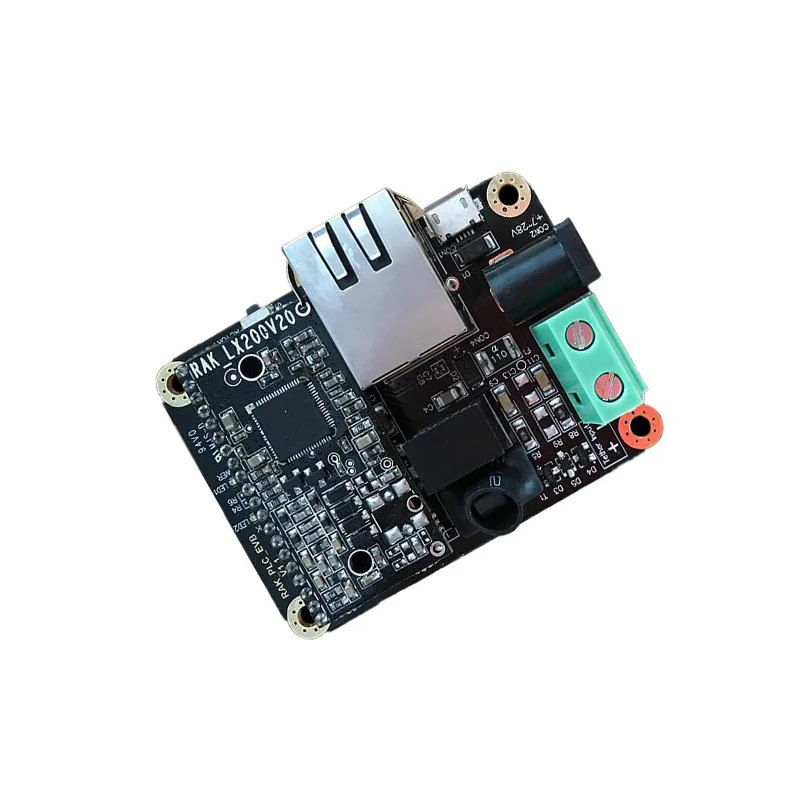

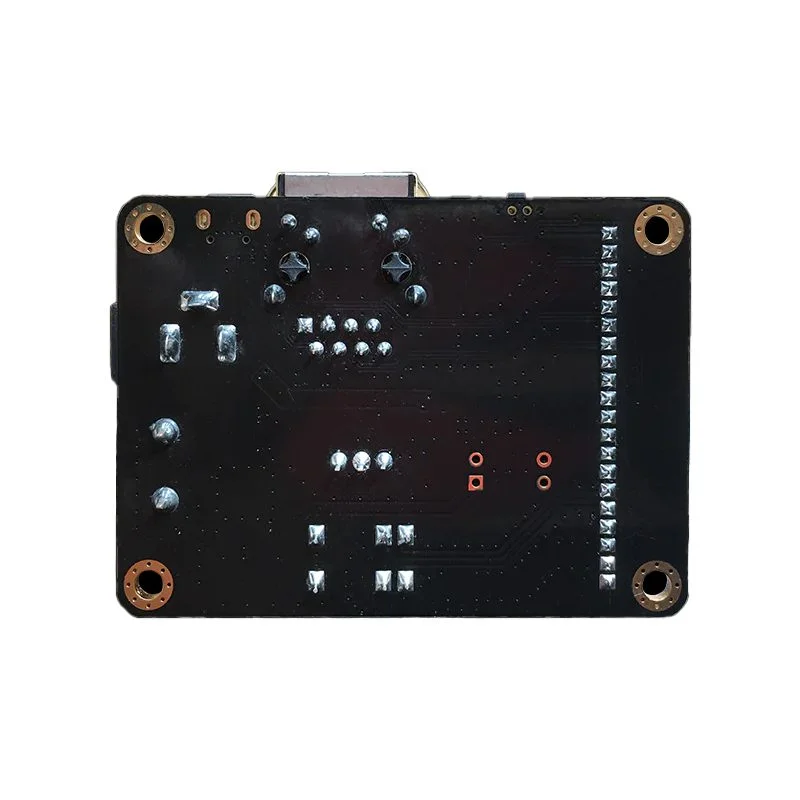

RAKwireless WisLink PLC LX200V20 EVB Power Line Communication Module

The primary use case is establishing a high-speed data network over existing AC power lines or twisted pair cables, ideal for Industrial IoT, smart building automation, and scenarios where running new Ethernet cabling is costly or impractical. It enables reliable connectivity for sensors, controllers, and devices directly from power outlets.

Connect the module to a power outlet and use the provided Ethernet port to link it to your router or switch. Configuration typically involves accessing a web-based management interface via its IP address to set network parameters, security keys (using the integrated 128-bit AES), and pairing with other PLC modules to form a network mesh.

Power Line mode uses standard AC wiring, offering convenience with a range up to 300 meters but can be affected by electrical noise. Twisted Pair mode uses dedicated data cables (like Cat5e), providing a cleaner signal with an extended range of 600 meters and higher reliability, making it suitable for structured industrial installations where separate cabling is feasible.

Yes, the module supports mesh networking, allowing up to 8 WisLink PLC LX200V20 modules to interface with each other. This extends network coverage across a larger area, such as an entire factory floor or multi-story building, using the power grid or dedicated twisted pair cables as the backbone.

The module operates on standard AC mains voltage via the provided adapter. It is designed for indoor use in typical commercial and industrial environments. Ensure the electrical circuit is stable, and for best performance, avoid connecting it to power strips with heavy filtering that might attenuate the high-frequency PLC signals.
