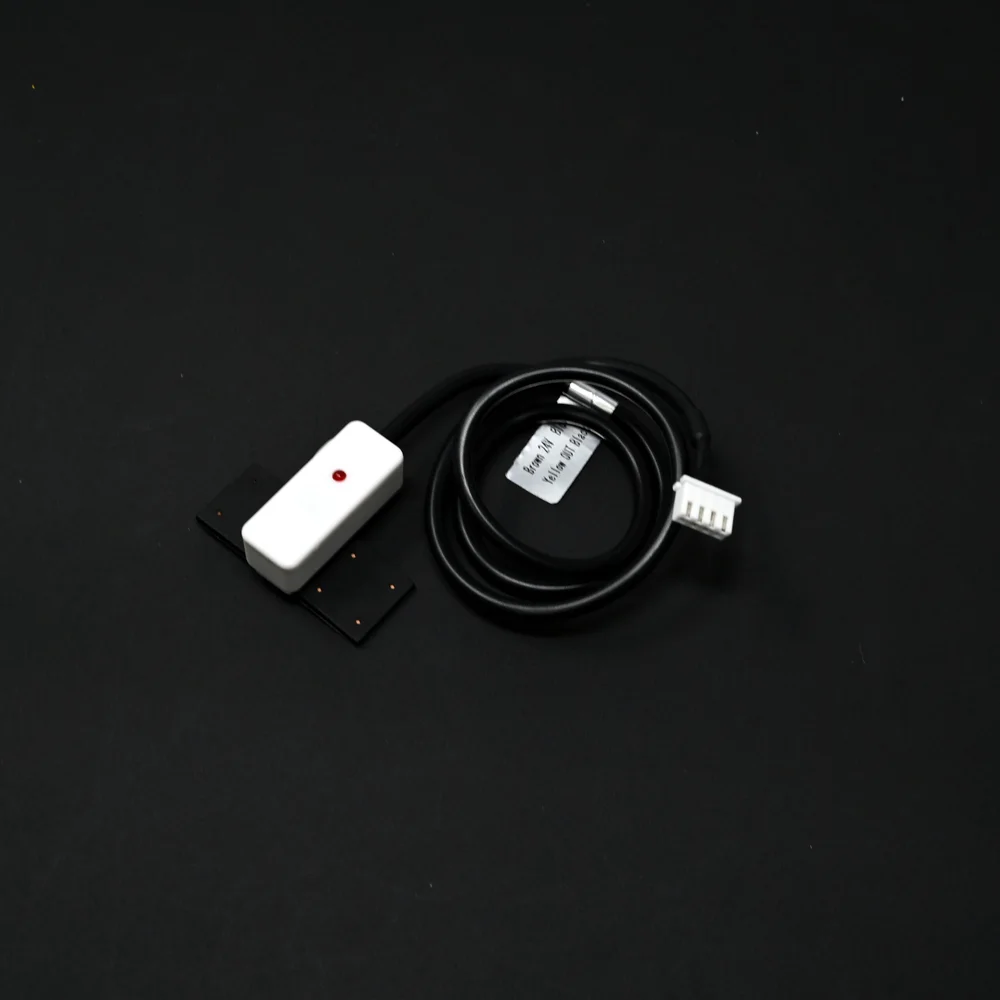

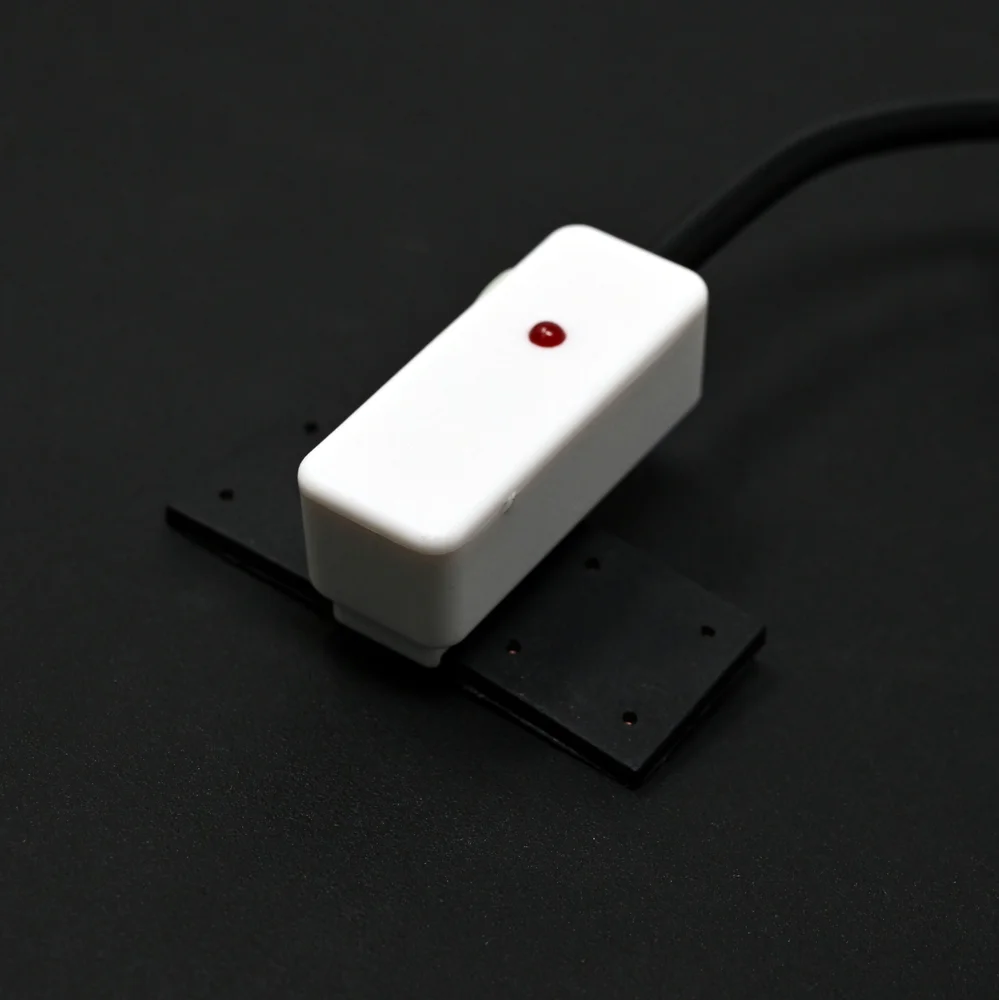

Pro-Range XKC-Y26PNP DC 24V Non-Contact Liquid Level Sensor
The Pro-Range XKC-Y26PNP is a 5-24V DC non-contact liquid level sensor designed for detecting liquid presence through the walls of non-metallic containers. Featuring a PNP output, it provides a robust solution for industrial PLCs and control systems requiring reliable level monitoring without direct fluid contact.
Features
- Non-contact capacitive sensing through container walls for non-metallic vessels.
- Wide 5-24V DC operating voltage range for industrial and embedded compatibility.
- PNP open-collector output for direct interface with PLCs and digital controllers.
- Corrosion-resistant design suitable for aggressive and high-temperature liquids.
- Adjustable sensitivity for optimal detection across various container materials and thicknesses.
Out of stock
The Pro-Range XKC-Y26PNP operates on a capacitive sensing principle, detecting changes in dielectric constant caused by the presence of liquid on the opposite side of a non-metallic container wall. This non-invasive method eliminates contamination risk and is ideal for sterile or corrosive fluid applications.
Engineered for industrial environments, the sensor features a robust housing and stable signal conditioning electronics, ensuring reliable performance across a wide temperature range, including cold, hot, and boiling liquids. Its long service life and immunity to scale buildup make it suitable for continuous monitoring in demanding process control systems.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 14 × 10 × 3 cm |
