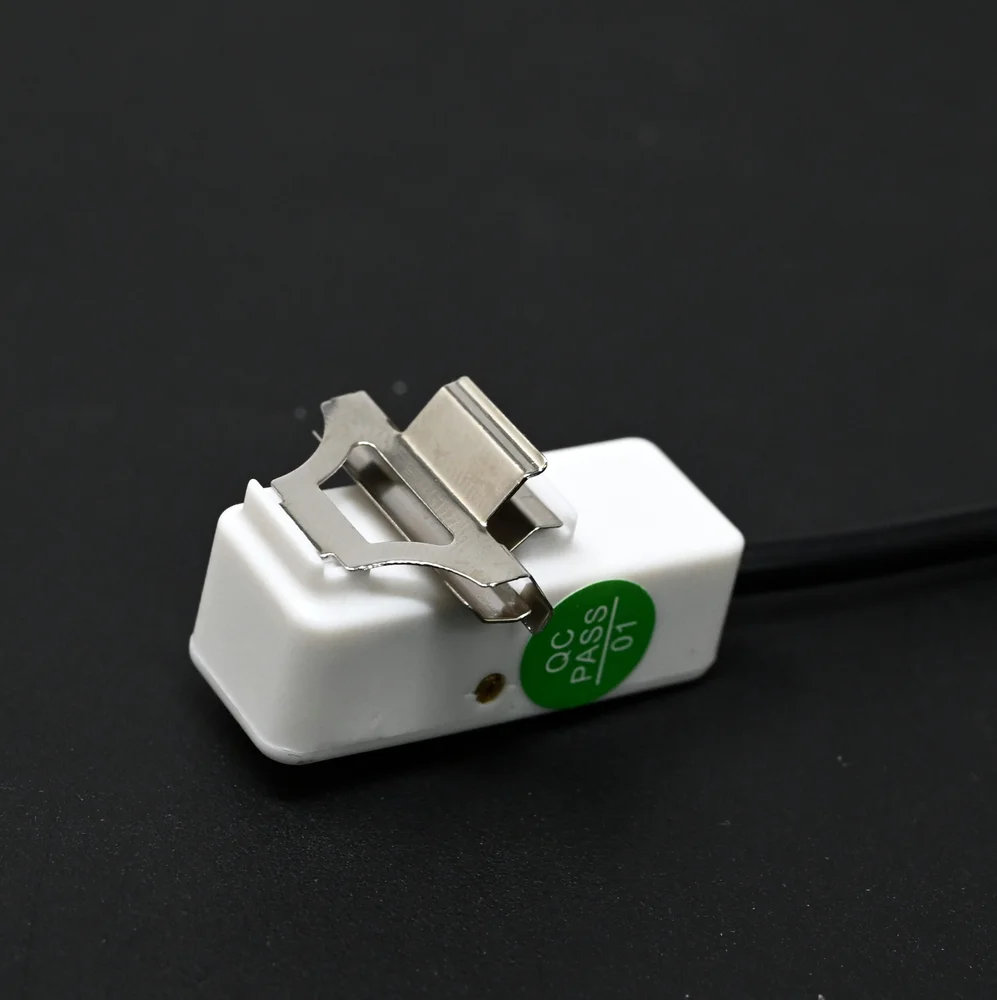

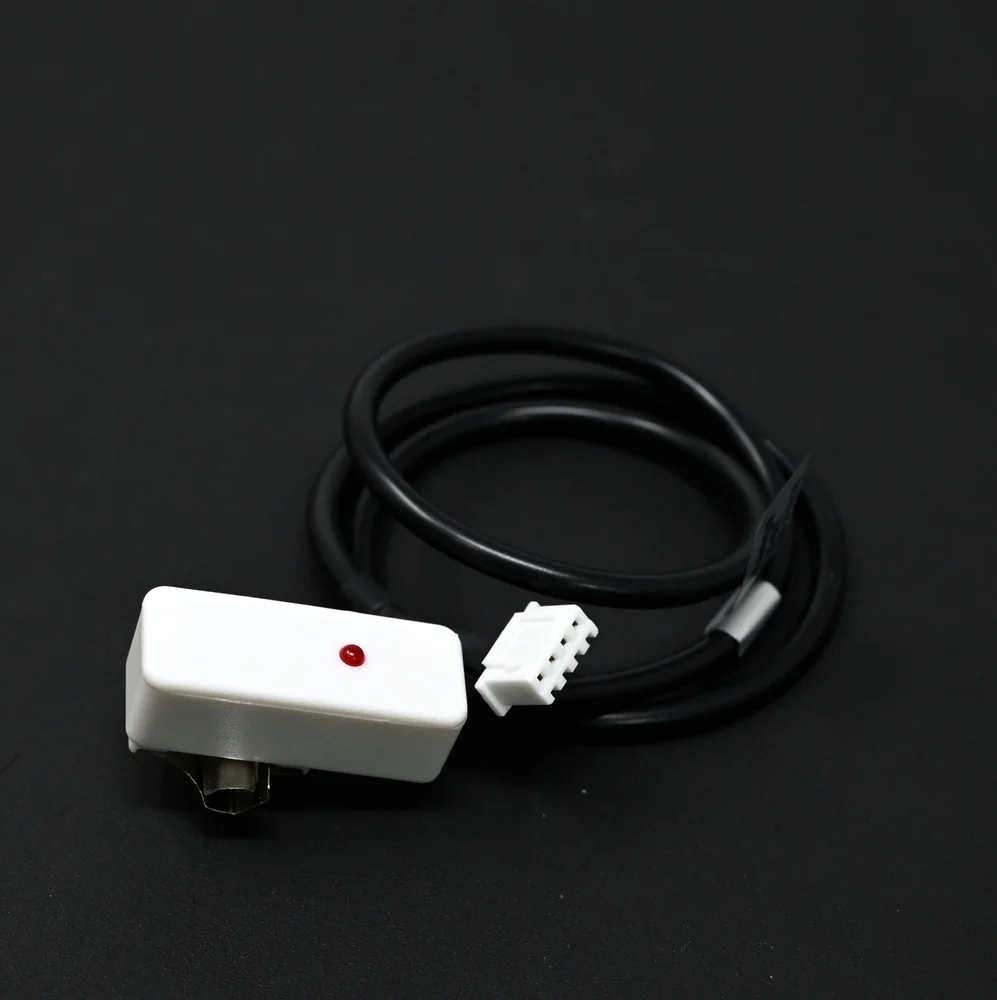

Pro-Range XKC-Y26A-NPN DC 24V Non-Contact Liquid Level Sensor
The Pro-Range XKC-Y26A-NPN is a DC 24V non-contact liquid level sensor designed for industrial monitoring systems. It detects liquid levels through container walls without physical contact, making it ideal for use with corrosive, toxic, or hazardous fluids. The sensor features an NPN output and adjustable sensitivity for reliable integration into PLCs and control panels.
Features
- Non-contact capacitive sensing through container walls for safe fluid detection.
- Operates on 24V DC with NPN open-collector output for industrial PLC compatibility.
- Adjustable sensitivity to optimize detection for different container materials and liquids.
- Suitable for corrosive, toxic, or hazardous liquids including acids, solvents, and oils.
- Designed for easy installation with a compact form factor (14 x 10 x 3 cm).
Out of stock
The Pro-Range XKC-Y26A-NPN utilizes a capacitive sensing principle to detect the presence or absence of liquid through the wall of a non-metallic container. This non-invasive method eliminates the need for direct contact with the fluid, preventing contamination and sensor degradation when monitoring aggressive media. The sensor’s electronics are housed in a durable casing, providing stability against environmental factors common in industrial settings.
Powered by a standard 24V DC supply, the sensor provides a digital NPN (sinking) output signal, making it directly compatible with programmable logic controllers (PLCs), relays, and data acquisition systems. The integrated sensitivity adjustment allows technicians to fine-tune the detection threshold for optimal performance with specific container thicknesses and dielectric properties of the target liquid, ensuring reliable operation across diverse applications.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 14 × 10 × 3 cm |
