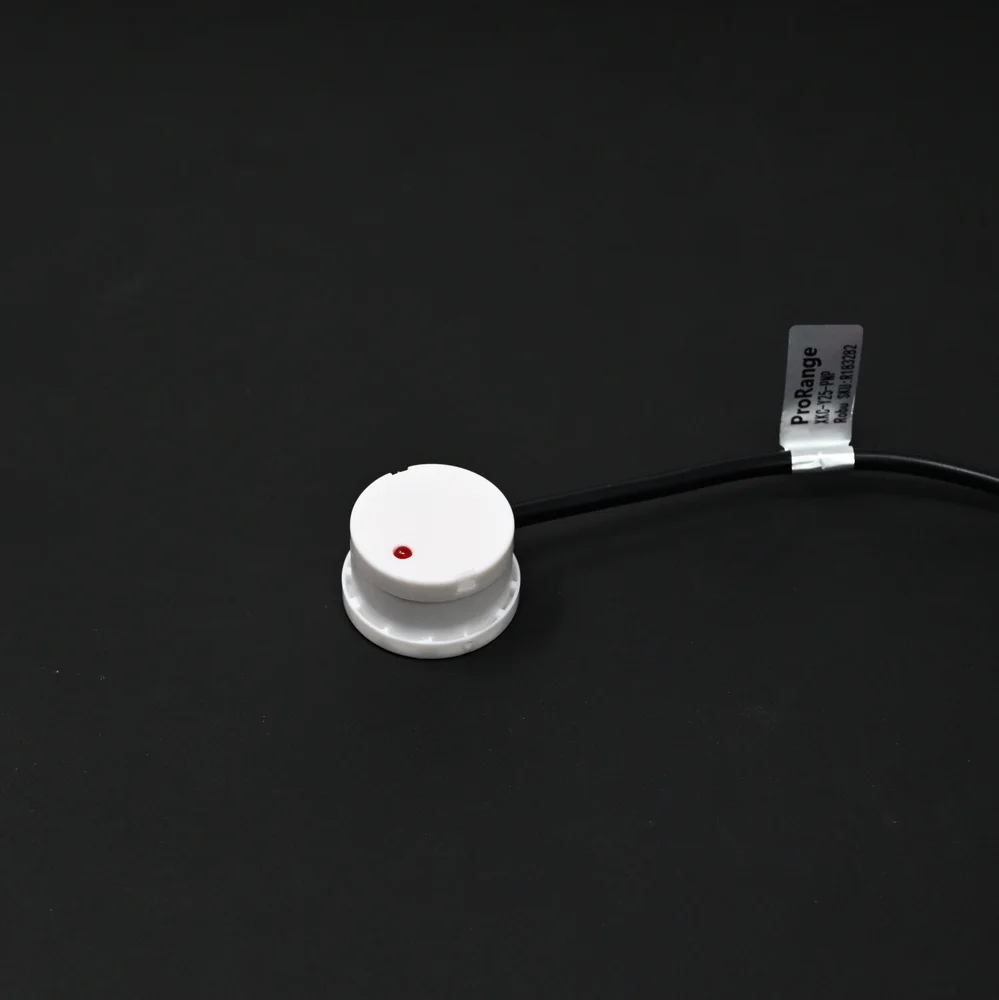

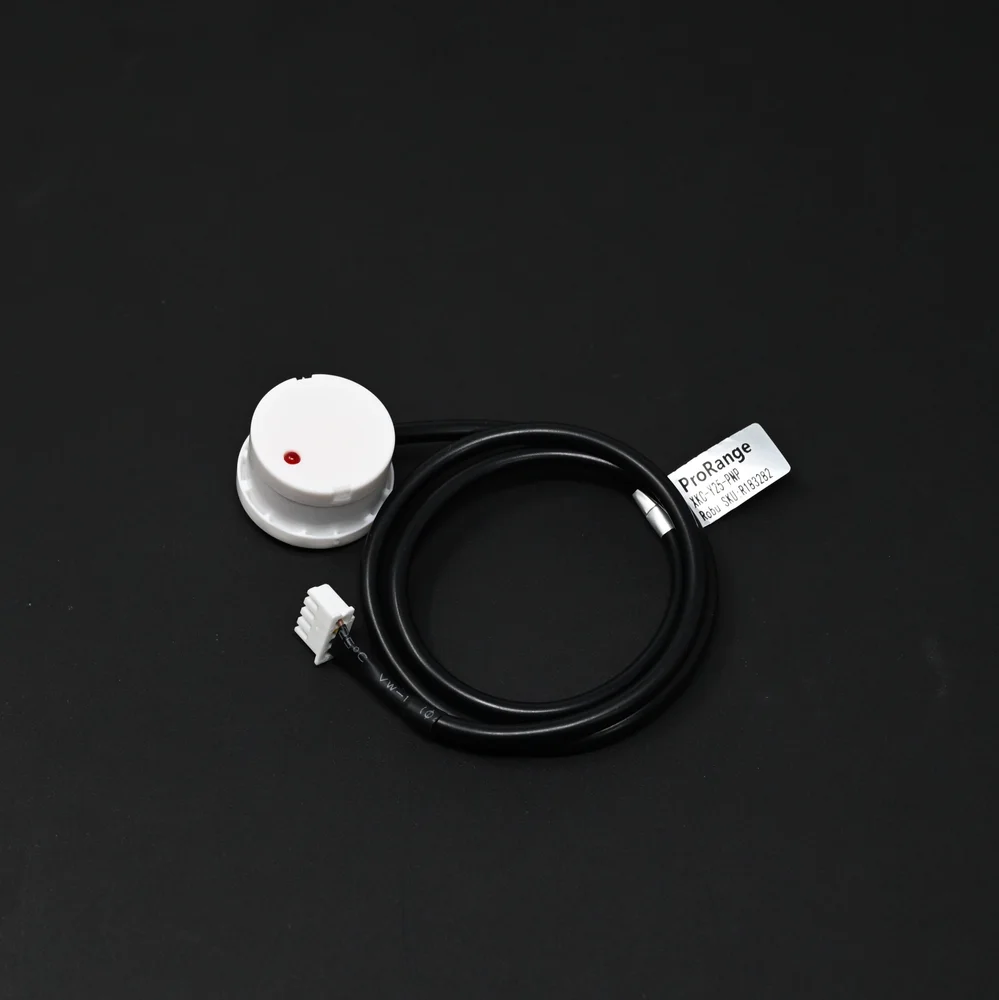

Pro-Range XKC-Y25PNP Non-Contact Liquid Level Sensor - DC 5-12V, IP67
The Pro-Range XKC-Y25PNP is a non-contact liquid level sensor designed for detecting liquid height through the walls of non-metallic containers. Operating from a 5-12V DC supply, it provides a PNP output for easy integration with PLCs, Arduino, and industrial control systems.
Features
- True non-contact detection through container walls up to 10mm thick.
- PNP output signal compatible with PLCs, microcontrollers, and industrial logic.
- IP67 waterproof rating ensures reliable operation in damp or washdown environments.
- ±1.5mm detection accuracy for precise level monitoring.
- Wide 5-12V DC operating voltage range for flexible power supply options.
Out of stock
The Pro-Range XKC-Y25PNP utilizes advanced signal processing technology to detect liquid levels without physical contact with the medium. By mounting the sensor probe externally on the container wall, it eliminates risks of corrosion, contamination, or pressure vessel penetration, making it ideal for monitoring aggressive, toxic, or sterile liquids.
This sensor is specifically engineered for non-metallic containers, providing a reliable solution for closed systems. Its high-speed processing chip compensates for variations in wall thickness and material, delivering a stable digital output signal that toggles based on the presence or absence of liquid at the detection point.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 14 × 10 × 3 cm |
