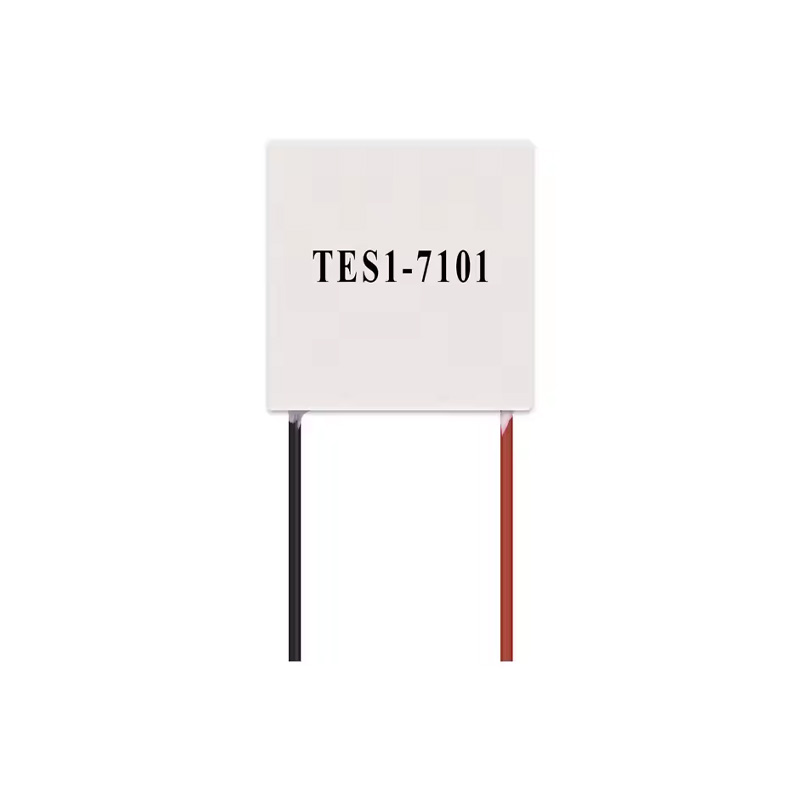

Pro-Range TES1-7101 Thermoelectric Cooler Peltier Module - 8.4V, 5.5W Cooling
The Pro-Range TES1-7101 is a compact 23x23mm thermoelectric cooler (TEC) module designed for precision temperature control applications. Operating at 8.4V DC and 1.2A, it provides up to 5.5W of cooling capacity, making it suitable for integration into electronics cooling systems, small refrigeration units, and DIY thermal management projects.
Features
- High-performance Peltier module with 5.5W cooling capacity at 8.4V.
- Compact 23mm x 23mm footprint with a 5.2mm thickness for space-constrained designs.
- Operates at 1.2A current draw, suitable for low-power DC systems.
- Capable of achieving a maximum temperature difference (ΔT) of 65°C.
- Industrial-grade semiconductor construction for reliable, long-term operation.
Out of stock
The TES1-7101 thermoelectric cooler utilizes the Peltier effect to create a heat flux between the junction of two different types of materials. When DC current is applied, heat is absorbed on one side (cold side) and dissipated on the opposite side (hot side), enabling precise active cooling without moving parts. This solid-state design ensures quiet, vibration-free operation ideal for sensitive electronic and optical systems.
Engineered for thermal management, this module is constructed with high-quality bismuth telluride semiconductor elements, offering stable performance across its operating range. Its compact form factor allows for direct integration onto heat sinks or cold plates, facilitating efficient heat transfer in applications requiring localized cooling or temperature stabilization.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 2.3 × 2.3 × 0.52 cm |
