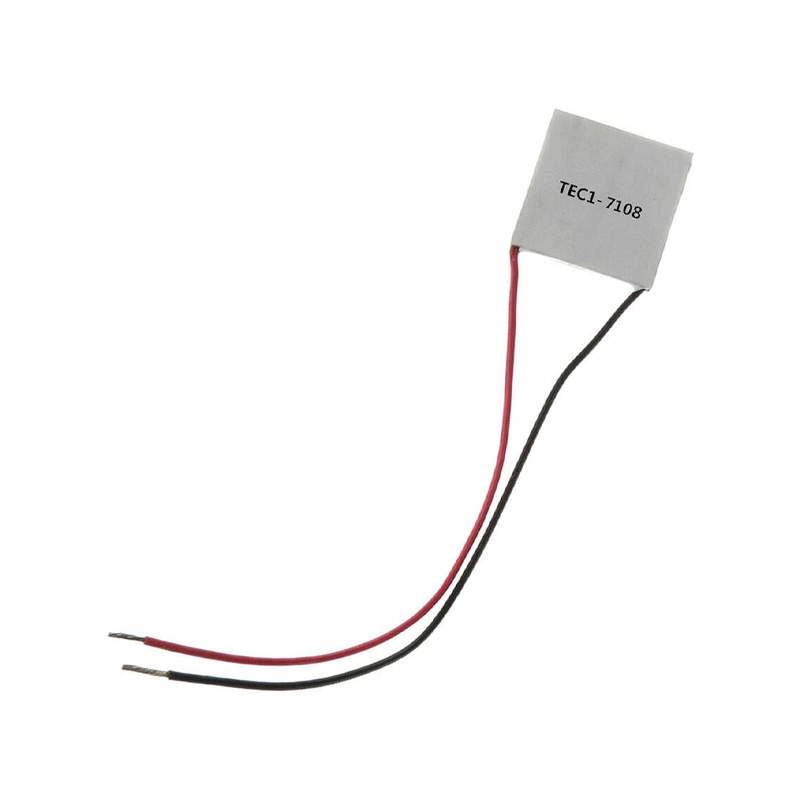

Pro-Range TEC1-7108 30x30mm Thermoelectric Cooler Peltier Module - 8.4V, 8A, 26.5W Cooling
The Pro-Range TEC1-7108 is a compact 30x30mm thermoelectric cooler (Peltier module) designed for active cooling and precise temperature control in electronics, small enclosures, and DIY thermal management systems. Operating at 8.4V DC and 8A, it delivers up to 26.5W of cooling capacity with a maximum temperature differential of 65°C.
Features
- High Cooling Density: Delivers 26.5W of cooling power from a compact 30x30mm footprint for efficient heat pumping in space-constrained designs.
- Optimized Electrical Specs: Rated for 8.4V DC operation at 8A, making it suitable for controlled power supplies and driver circuits.
- Maximum Temperature Differential: Capable of achieving a ΔT of up to 65°C under ideal conditions for significant cooling effects.
- Ultra-Thin Profile: With a thickness of just 3.3mm, it enables integration into slim devices and layered thermal assemblies.
- Industrial-Grade Construction: Built with robust semiconductor materials for reliable, long-term performance in demanding thermal cycling applications.
Out of stock
The TEC1-7108 thermoelectric cooler operates on the Peltier effect, where an electrical current applied across semiconductor junctions creates a heat flux, transferring thermal energy from one side (cold side) to the other (hot side). This solid-state heat pump provides precise, reversible cooling without moving parts, making it ideal for applications requiring stable temperature regulation.
Engineered for integration into active cooling systems, this module requires a suitable heatsink and fan on the hot side to dissipate the absorbed heat plus the input electrical power. Its 8.4V nominal voltage aligns with common DC power rails, while the 8A current demand necessitates a capable driver or MOSFET circuit for proper control and efficiency.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 5 × 5 × 1 cm |
