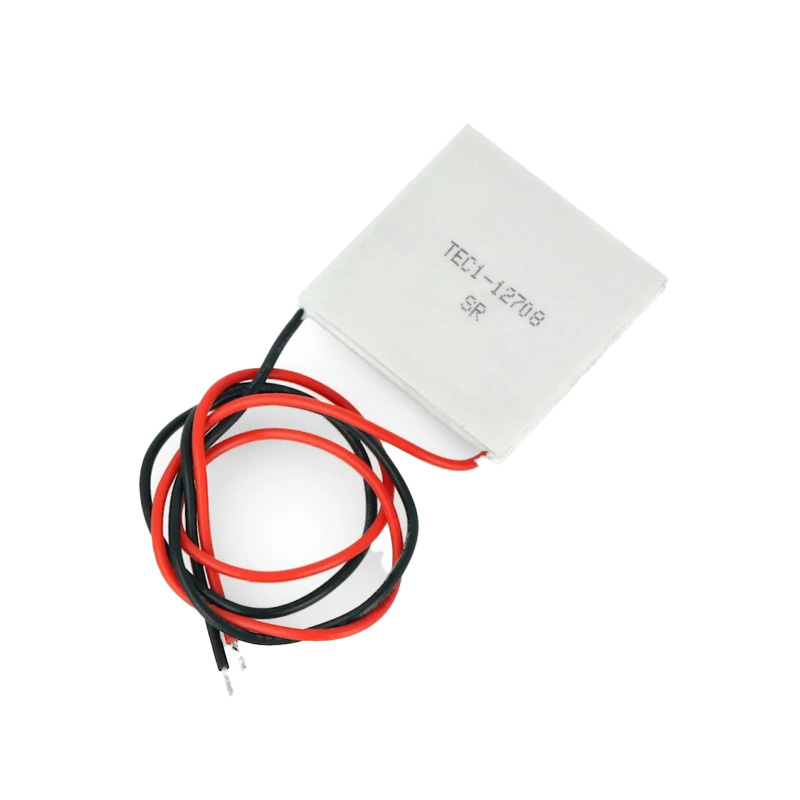

Pro-Range TEC1-12708 50x50mm Thermoelectric Cooler Module - 15.8V, 8A, 69W Cooling
The Pro-Range TEC1-12708 is a 50x50mm Peltier thermoelectric cooler module designed for active heat pumping in electronics cooling, temperature control systems, and small-scale refrigeration. It operates at 15.8V DC with an 8A current draw, delivering up to 69W of cooling capacity for integration into custom thermal management solutions.
Features
- High-performance semiconductor Peltier module with 69W cooling capacity.
- Operates at 15.8V DC with a rated current of 8A for optimal heat transfer.
- Compact 50mm x 50mm footprint with a slim 4.2mm thickness for space-constrained designs.
- Capable of achieving a maximum temperature difference (ΔT) of up to 65°C.
- Industrial-grade construction using bismuth telluride semiconductors for reliable, long-term operation.
Out of stock
The Pro-Range TEC1-12708 utilizes the solid-state Peltier effect to actively pump heat from one ceramic face to the other when DC power is applied. This creates a cold side for heat absorption and a hot side for heat dissipation, enabling precise temperature control without moving parts. The module is built with robust, lead-free solder and alumina ceramic substrates for efficient thermal conductivity and electrical insulation.
Designed for integration into active cooling systems, this thermoelectric cooler requires an appropriate heat sink and fan assembly on the hot side to maintain its rated 69W cooling performance. Its 15.8V/8A electrical characteristics make it compatible with dedicated TEC drivers or high-current DC power supplies, suitable for applications ranging from laboratory equipment to high-power electronics thermal regulation.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 5 × 5 × 1 cm |
