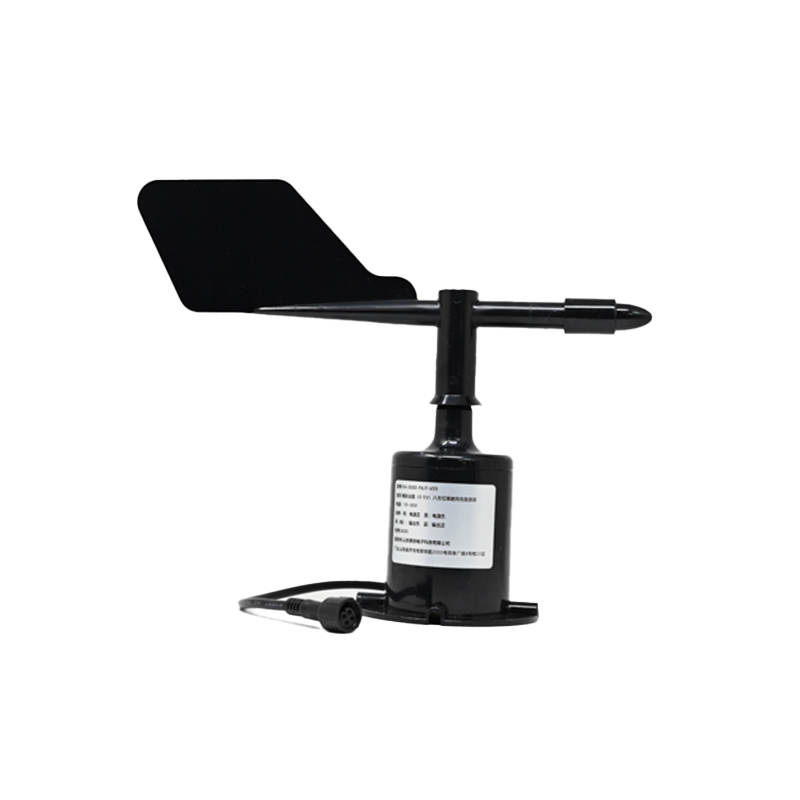

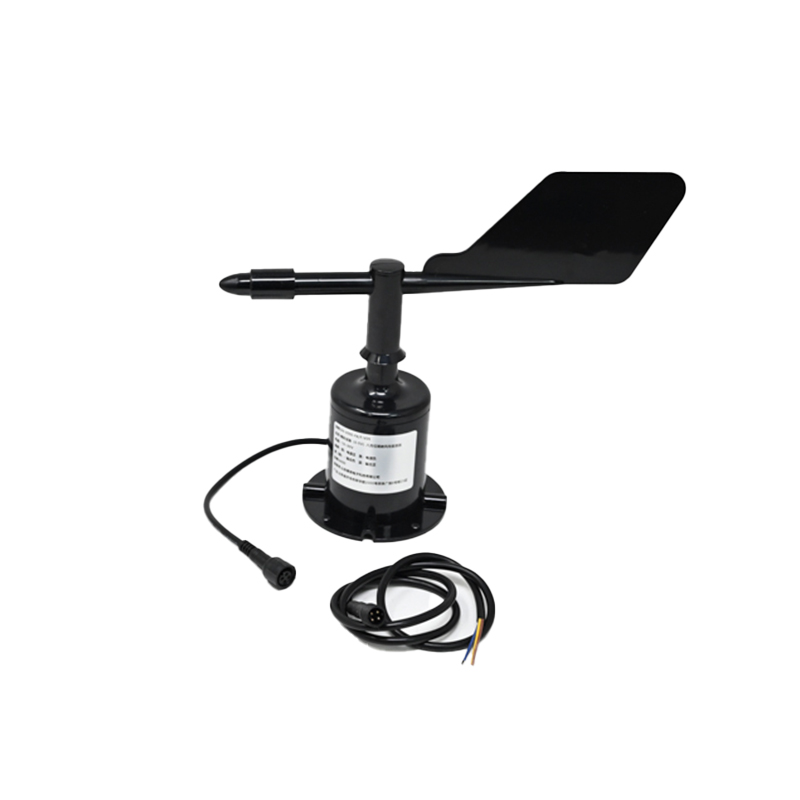

Pro-Range SN-3000-FXJT-V05 Wind Direction Sensor 0-5V Output - Polycarbonate Shell

Name: Pro-Range SN-3000-FXJT-V05 Wind Direction Sensor 0-5V Output - Polycarbonate Shell
Brand: Pro-Range
SKU: SENS-0450
Price: 1799.00 INR
Availability: OutOfStock

₹1,799.00 (Inclusive of all taxes)

Out of Stock

The Pro-Range SN-3000-FXJT-V05 is a 0-5V output wind direction sensor designed for professional weather monitoring and environmental data acquisition systems. Featuring a durable polycarbonate shell and high-precision imported bearings, it provides reliable 8-direction measurement for integration with PLCs, data loggers, and microcontroller platforms like Arduino and Raspberry Pi.

Features

Provides 0-5V analog output signal corresponding to 8 wind direction positions.
Constructed with corrosion-resistant polycarbonate composite shell for long-term outdoor deployment.
Features high-performance imported bearings for low rotational resistance and accurate measurement.
Operates from a 5V DC supply with reverse connection and overvoltage protection.
Designed with low moment of inertia for sensitive and rapid response to wind direction changes.

Out of stock

Get Notified When Available

Description

The SN-3000-FXJT-V05 wind direction sensor utilizes a precision potentiometer coupled to a low-inertia vane assembly. As wind rotates the vane, the internal mechanism produces a corresponding analog voltage output between 0 and 5V, with each voltage range representing a specific 45-degree sector (8 directions). This design ensures straightforward interfacing with most data acquisition systems.

Engineered for harsh environments, the sensor’s housing is made from UV-stabilized polycarbonate composite, offering high impact strength and resistance to corrosion, salt spray, and prolonged sun exposure. The integrated bearing system minimizes friction and stiction, enhancing measurement accuracy and long-term reliability in variable weather conditions from -20°C to +60°C.

Key Features

Robust Polycarbonate Construction: Shell provides excellent mechanical strength, hardness, and corrosion resistance for permanent outdoor installation.
Precision Bearing System: Utilizes imported, high-performance bearings to ensure minimal rotational resistance and consistent, accurate directional data.
Protected Power Interface: 5V DC input includes reverse polarity and overvoltage protection circuits for enhanced system durability.
EMI Shielding: Internal design includes anti-electromagnetic interference processing for stable signal output in electrically noisy environments.
Optimized Mechanical Design: Carefully distributed weight and low moment of inertia enable a sensitive and rapid response to wind shifts.
Flexible Wiring: Supports both three-wire and four-wire connection methods for versatile integration into existing monitoring setups.
Wide Operating Range: Functions reliably across an extended temperature range from -20°C to +60°C.

Applications

Professional meteorological stations and weather monitoring networks for wind direction data logging.
Environmental monitoring systems at ports, shipping lanes, and coastal facilities.
Agricultural and greenhouse climate control systems for optimizing ventilation.
Renewable energy site assessment and wind turbine performance monitoring.
Research and educational projects in environmental science and data acquisition.

Technical Specifications

Manufacturer Part Number	SN-3000-FXJT-V05
Output Signal	0-5V Analog
Wind Direction Resolution	8 Directions (45° sectors)
Supply Voltage	5 V DC
Maximum Power Consumption	0.12 W
Operating Temperature Range	-20°C to +60°C (Extended: -40°C to +60°C)
Housing Material	Polycarbonate Composite
Protection Features	Reverse Polarity Protection, Overvoltage Protection
Bearing Type	High-Performance Imported
Wiring Compatibility	3-Wire or 4-Wire Connection

Frequently Asked Questions

What is the output signal of the SN-3000-FXJT-V05 sensor and how do I interpret it?

The sensor provides a 0-5V analog output voltage. The voltage range is divided into eight segments, each corresponding to a 45-degree wind direction sector (e.g., N, NE, E, etc.). You can connect this output directly to the analog input of a microcontroller (like an Arduino) or a PLC's analog input module and map the measured voltage to the specific cardinal direction.

What power supply is required, and does it have protection features?

The sensor requires a stable 5V DC power supply. It incorporates essential protection circuits, including reverse polarity protection to prevent damage if the power wires are connected incorrectly and overvoltage protection to safeguard the internal electronics from voltage spikes.

Is this sensor suitable for permanent outdoor installation?

Yes, the sensor is designed for long-term outdoor use. Its housing is constructed from UV-stabilized polycarbonate composite, which offers high impact strength and excellent resistance to corrosion, erosion, and prolonged sun exposure. The specified operating temperature range of -20°C to +60°C covers most environmental conditions.

How many directions does this sensor measure, and what is its accuracy?

This model measures wind direction across 8 cardinal points (N, NE, E, SE, etc.). Accuracy is primarily determined by the low-friction, high-performance imported bearing system, which minimizes mechanical resistance and stiction, ensuring the vane responds sensitively and aligns accurately with the wind direction.
