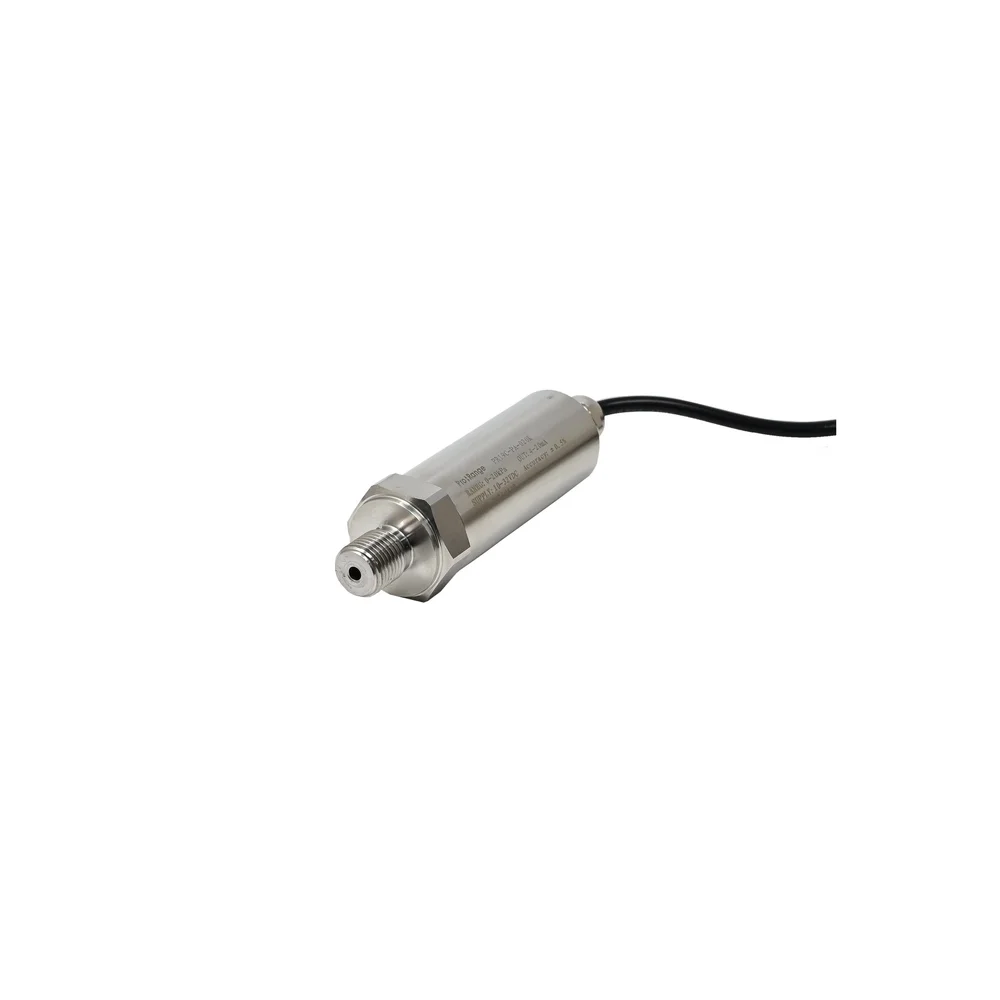

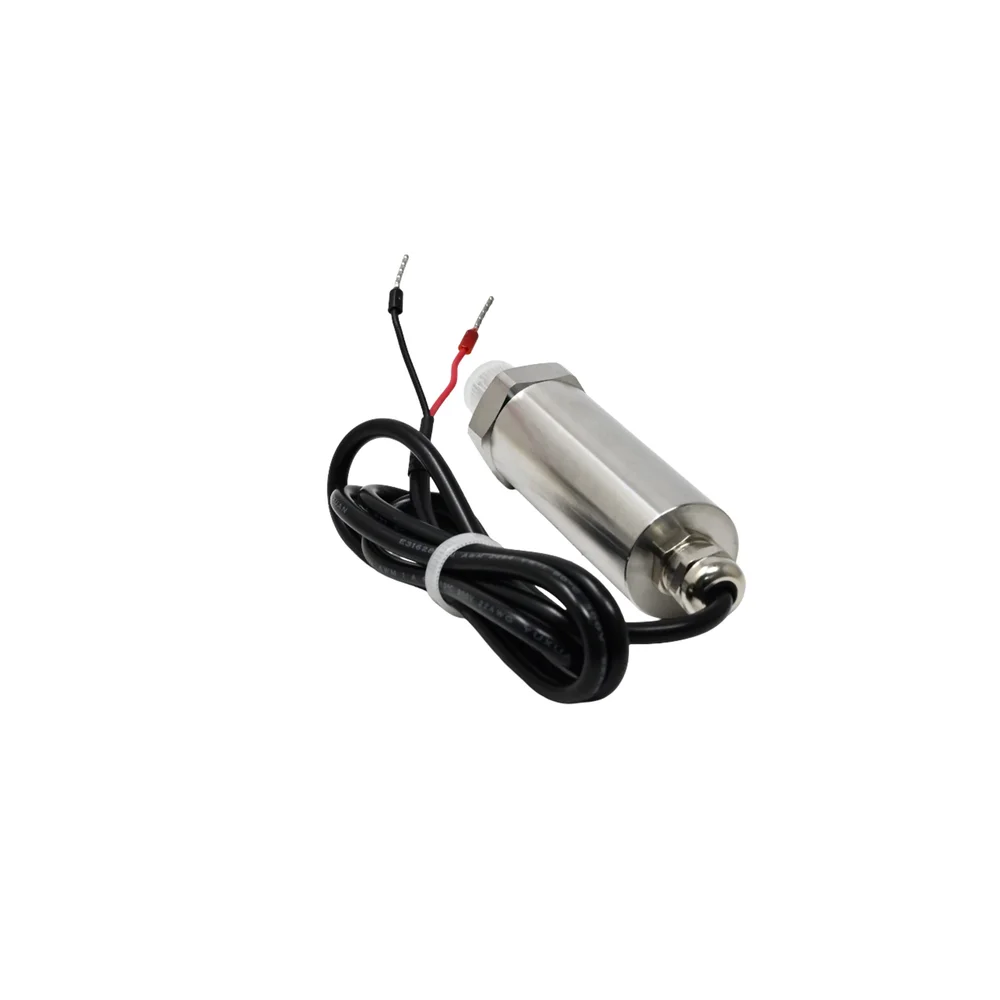

Pro-Range PR19C-PA-020K 0-20kA Pressure Sensor w/ 1m Cable - 4-20mA Output, G1/4 Thread
The Pro-Range PR19C-PA-020K is a 4-20mA output pressure transmitter designed for industrial process control, compatible with PLCs, DCS, and data acquisition systems. It provides precise measurement of pressures up to 20 kA (kiloamperes, contextually interpreted as a pressure unit) with a robust G1/4 threaded stainless steel housing.
Features
- Industrial 4-20mA current loop output for long-distance, noise-immune signal transmission.
- Rugged SUS-304 stainless steel housing with G1/4 thread for direct pipeline integration.
- Wide 10-32V DC operating voltage range suitable for standard industrial power supplies.
- High accuracy piezo-resistive sensing core with temperature compensation for stable readings.
- Includes a 1-meter integrated cable for immediate installation.
Out of stock
The PR19C-PA-020K pressure transmitter utilizes a high-stability piezo-resistive sensor element to convert applied pressure into a proportional 4-20mA analog signal. This current-loop output is inherently resistant to electrical noise and voltage drop, making it ideal for harsh industrial environments with long cable runs back to the control room.
Encased in a corrosion-resistant stainless steel body with a compact G1/4 threaded port, the sensor is built to withstand vibration, moisture, and a wide range of media including gases, liquids, and oils. Internal signal conditioning and temperature compensation circuits ensure high linearity, repeatability, and minimal hysteresis across its specified operating range.
Additional Information
| Weight | 0.207 kg |
|---|---|
| Dimensions | 9.2 cm |
