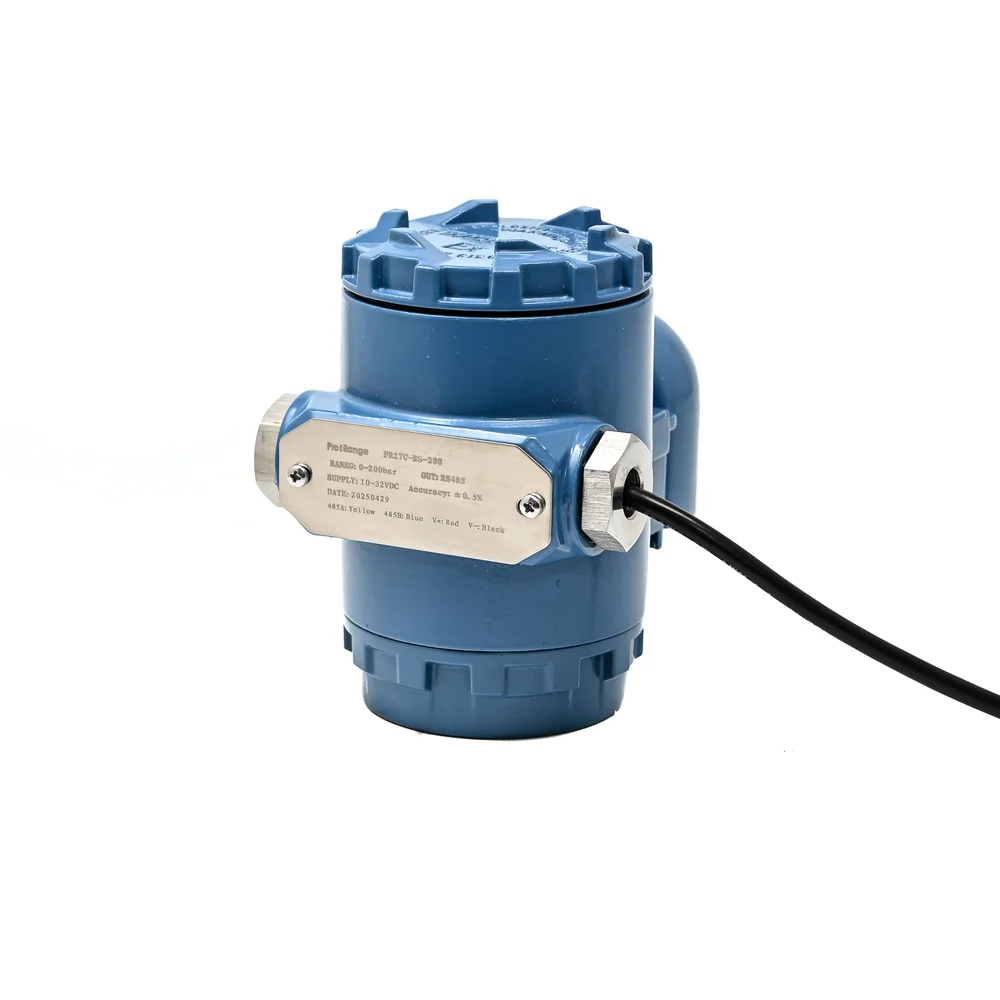

Pro-Range PR17C-RS-200 Pressure Gauge 0-20 MPa, RS485 Modbus, G1/4 Thread, 1m Cable

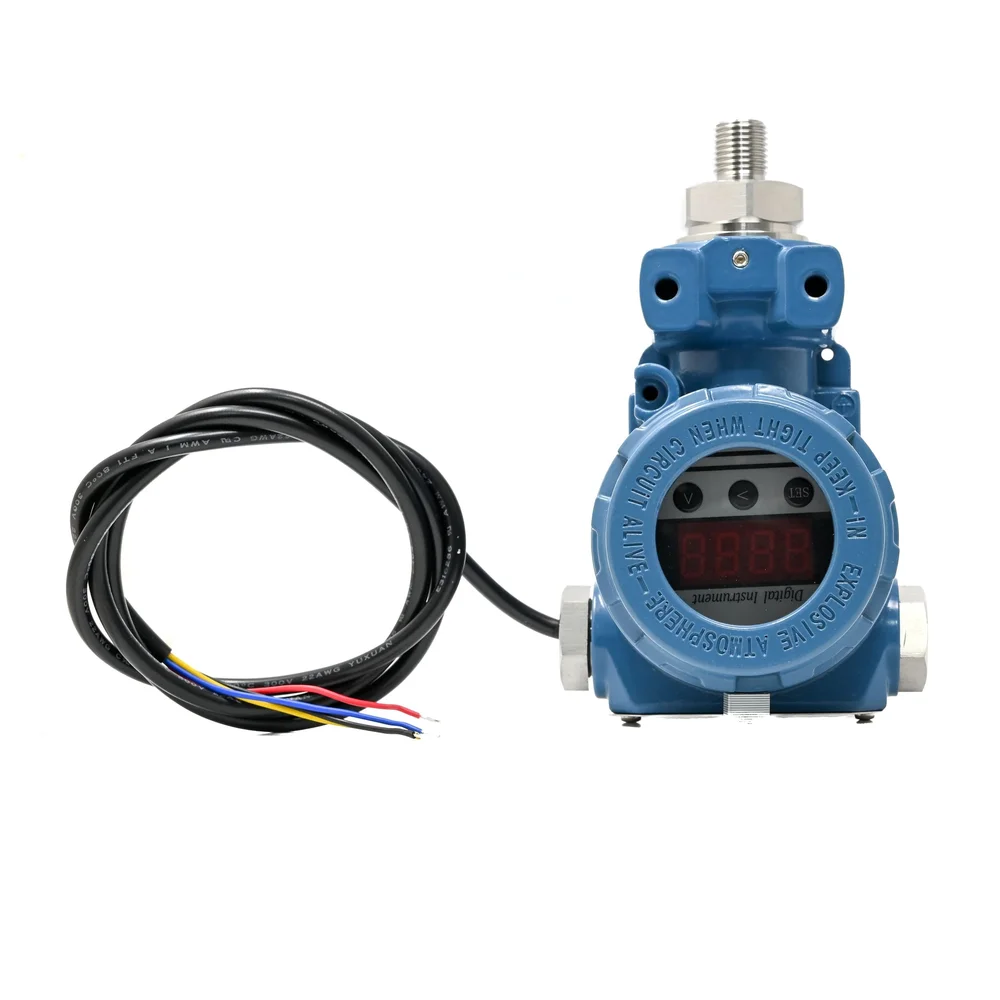

Pro-Range PR17C-RS-200 Pressure Gauge 0-20 MPa, RS485 Modbus, G1/4 Thread, 1m Cable - Image 2

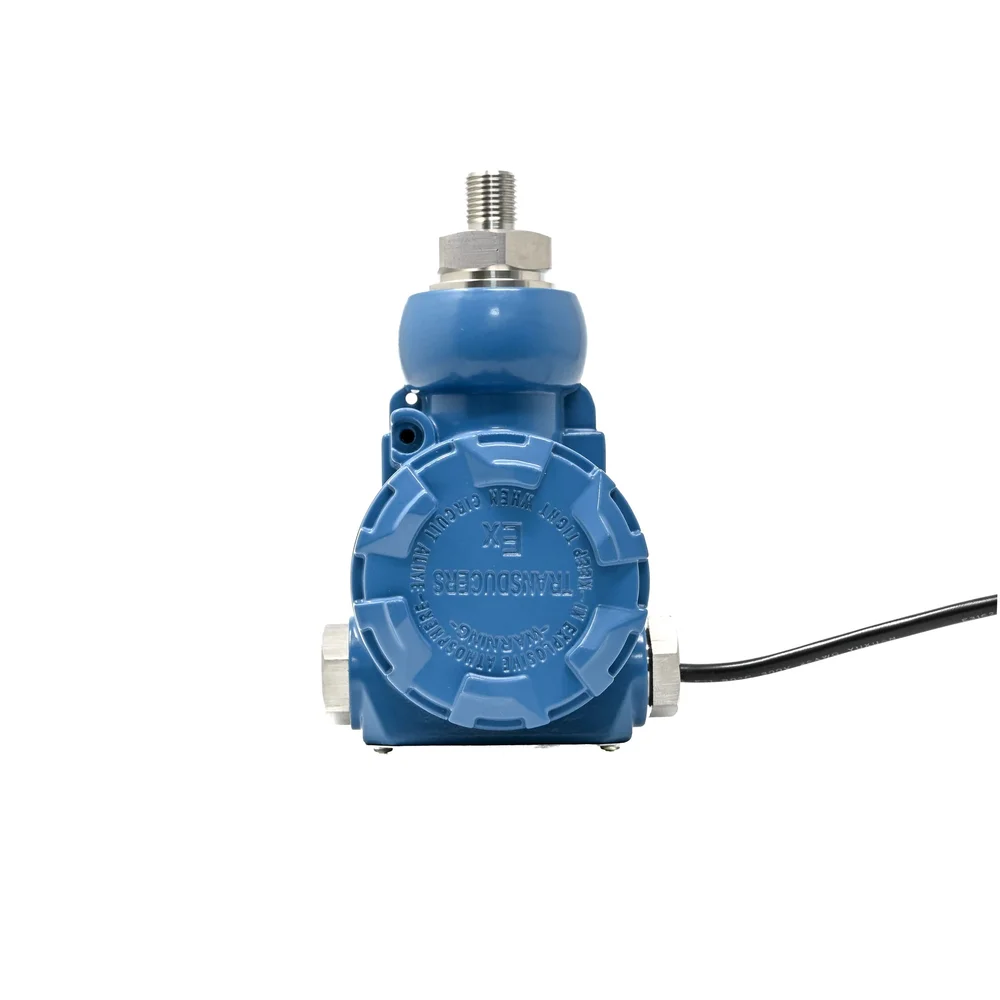

Pro-Range PR17C-RS-200 Pressure Gauge 0-20 MPa, RS485 Modbus, G1/4 Thread, 1m Cable - Image 3

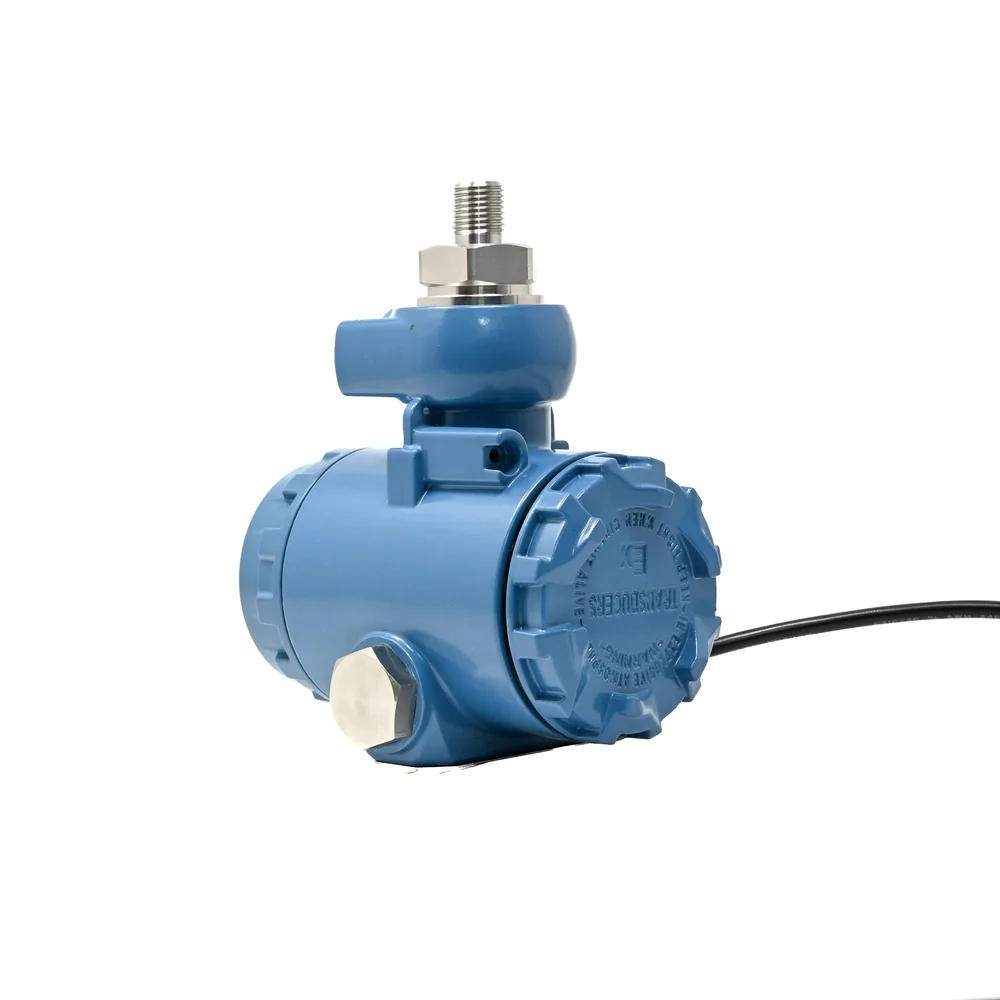

Pro-Range PR17C-RS-200 Pressure Gauge 0-20 MPa, RS485 Modbus, G1/4 Thread, 1m Cable - Image 4

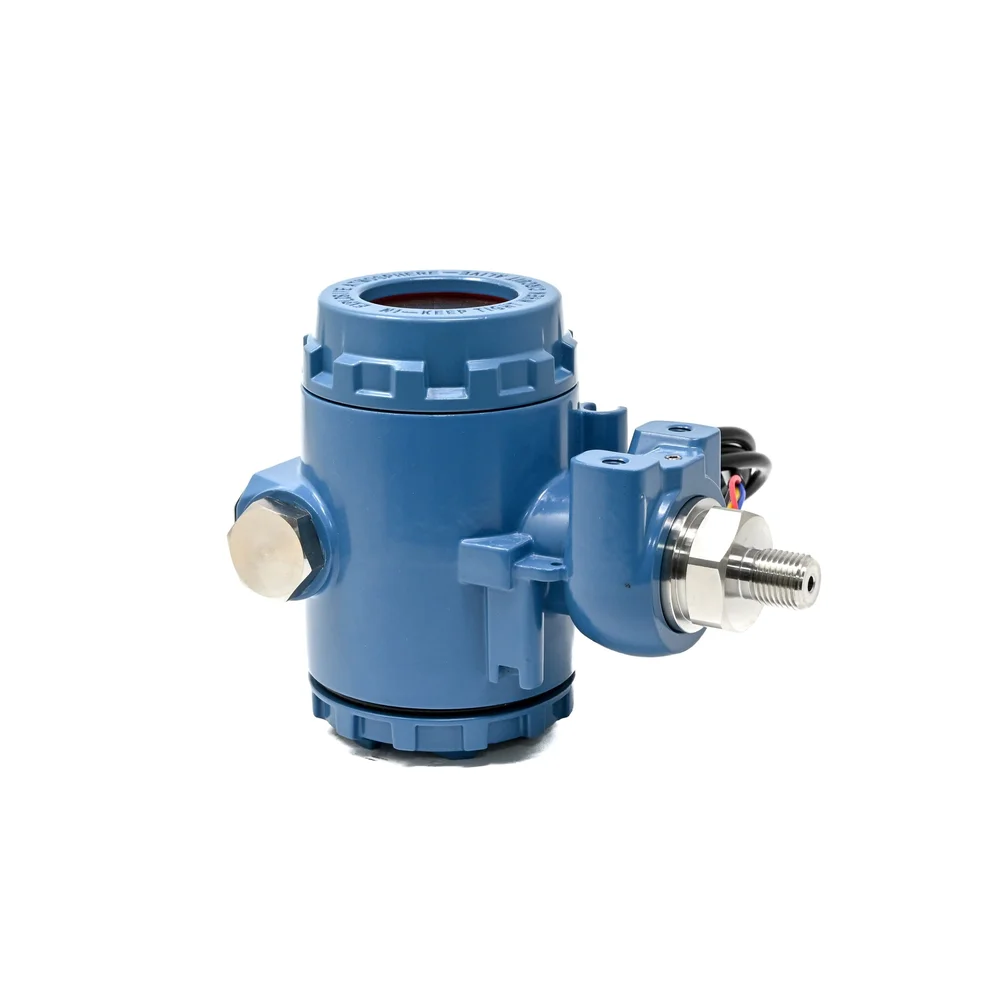

Pro-Range PR17C-RS-200 Pressure Gauge 0-20 MPa, RS485 Modbus, G1/4 Thread, 1m Cable - Image 5

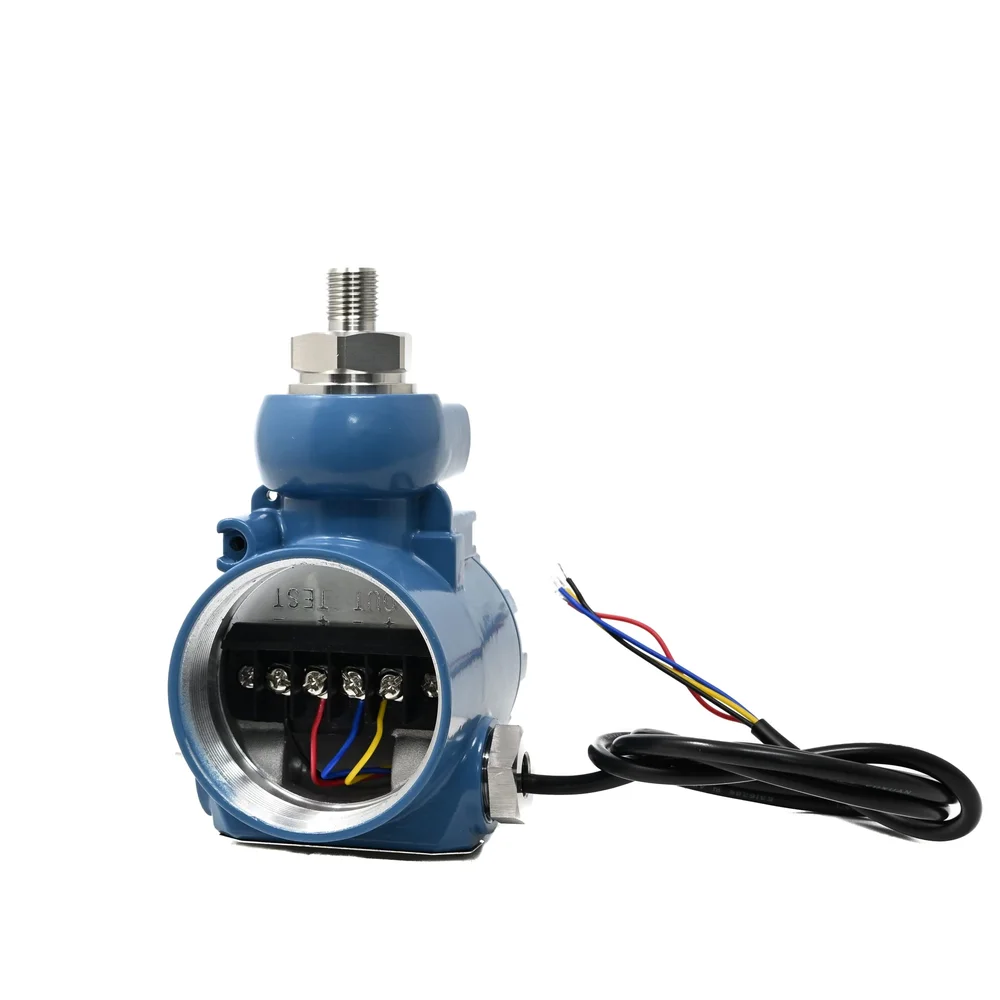

Pro-Range PR17C-RS-200 Pressure Gauge 0-20 MPa, RS485 Modbus, G1/4 Thread, 1m Cable - Image 6

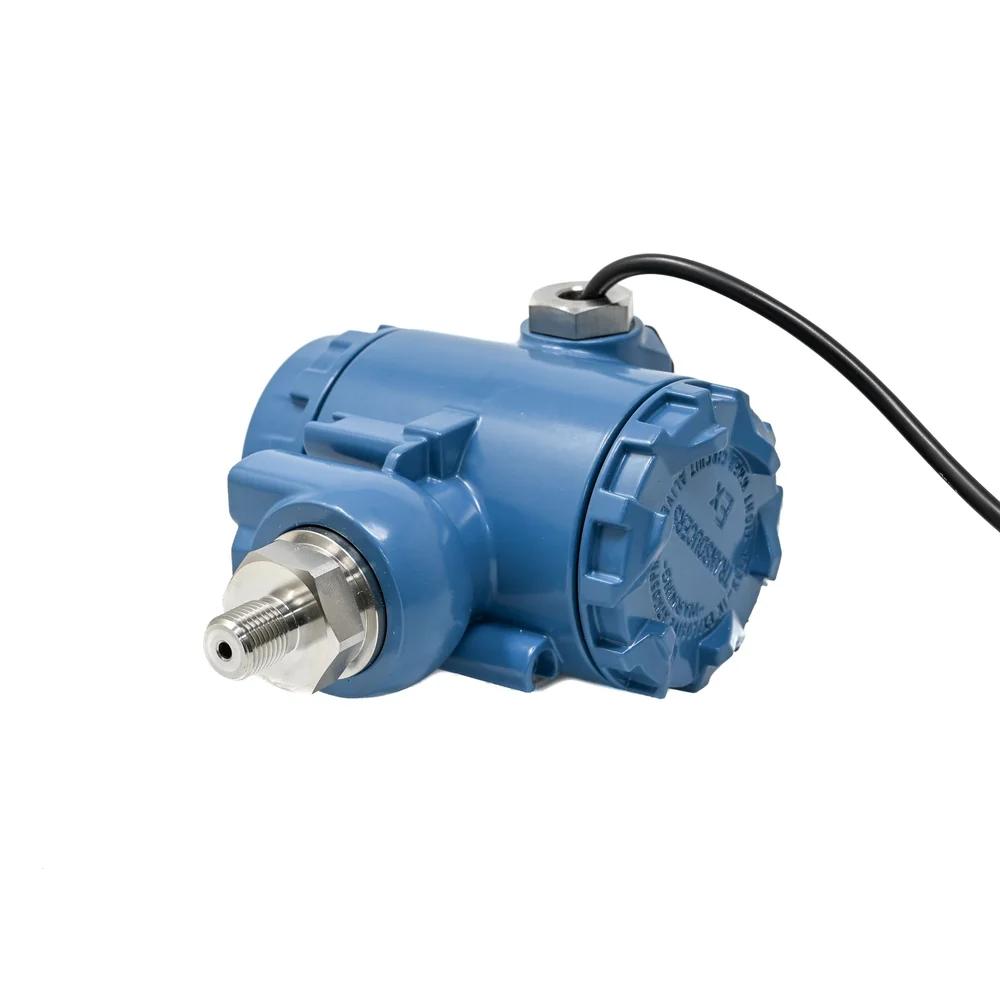

Pro-Range PR17C-RS-200 Pressure Gauge 0-20 MPa, RS485 Modbus, G1/4 Thread, 1m Cable - Image 7

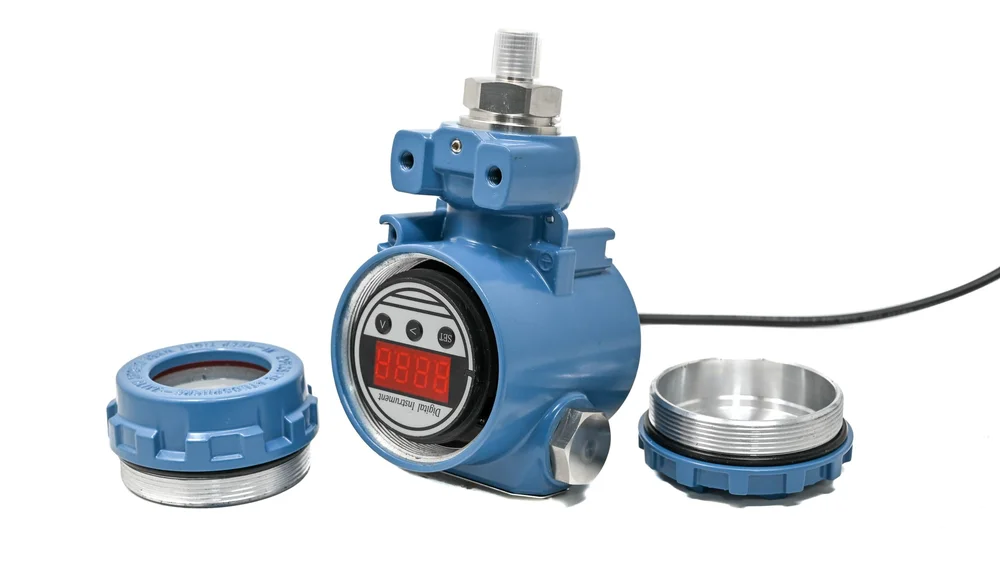

Pro-Range PR17C-RS-200 Pressure Gauge 0-20 MPa, RS485 Modbus, G1/4 Thread, 1m Cable - Image 8
SKU: SENS-2201
📋 GST Invoice Available

Pro-Range PR17C-RS-200 Pressure Gauge 0-20 MPa, RS485 Modbus, G1/4 Thread, 1m Cable

₹4,689.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range PR17C-RS-200 is a high-pressure digital gauge with an RS485 Modbus RTU interface, designed for industrial process control, hydraulic systems, and SCADA integration. It operates on a 12-24V DC supply and delivers precise, stable readings up to 20 MPa.

Features

  • 0-20 MPa measurement range for high-pressure hydraulic and pneumatic systems.
  • RS485 Modbus RTU digital output for reliable, long-distance industrial communication.
  • Durable stainless steel (SS316) housing with G1/4″ threaded connection for harsh environments.
  • Field-programmable via RS485 commands for flexible application setup.
  • Temperature-compensated piezoresistive sensor ensures high accuracy and low hysteresis.

Out of stock

Description

The Pro-Range PR17C-RS-200 employs a precision piezoresistive sensing element, providing excellent long-term stability and thermal compensation for accurate pressure measurement across its full 0-20 MPa range. The sensor’s robust stainless steel construction ensures corrosion resistance and durability in demanding industrial environments.

Its integrated RS485 Modbus RTU interface facilitates seamless integration into industrial networks, PLCs, and SCADA systems, supporting remote monitoring, data logging, and configuration. The included 1-meter cable simplifies installation, while the compact form factor allows for easy mounting in space-constrained applications.

Key Features

  • High-pressure measurement up to 20 MPa (200 bar) with precision accuracy.
  • Industrial-grade RS485 Modbus RTU digital communication protocol.
  • Robust SS316 stainless steel housing for superior corrosion and impact resistance.
  • Integrated EMI/RFI suppression for reliable operation in electrically noisy environments.
  • Field-configurable parameters including baud rate, address, and output format via RS485.
  • Wide operating voltage range of 12-24V DC for flexible power supply compatibility.
  • Temperature-compensated piezoresistive sensor core for minimal thermal drift.
  • Compact G1/4" threaded form factor for straightforward mechanical integration.

Applications

  • High-pressure hydraulic system monitoring and control in industrial machinery.
  • Process pressure measurement and control in chemical, oil, and gas industries.
  • Integration into SCADA and PLC systems for remote pressure monitoring.
  • Pneumatic system pressure regulation and safety monitoring.
  • OEM integration into test stands, pressure calibration benches, and automation equipment.

Technical Specifications

Model NumberPR17C-RS-200
Pressure Range0 - 20 MPa
Output SignalRS485 Modbus RTU
Supply Voltage12 - 24 V DC
Thread SizeG1/4"
Cable Length1 m
Housing MaterialStainless Steel (SS316)
Sensor TypePiezoresistive
Length123 mm
Width120 mm
Weight825 g

Frequently Asked Questions

What is the communication protocol and how do I interface with this pressure gauge?

The PR17C-RS-200 uses the RS485 physical layer with the Modbus RTU protocol. You can connect it to a PLC, industrial controller, or USB-to-RS485 adapter. Standard Modbus commands are used to read pressure values and configure parameters like baud rate and device address.

What is the required power supply and how do I wire the sensor?

The sensor operates on a 12-24V DC supply. The included cable typically provides connections for power (V+, GND) and the RS485 data lines (A, B). Always refer to the product datasheet for the exact pinout and ensure proper termination and shielding for reliable RS485 communication over long distances.

Can this sensor be used with liquids and aggressive media?

Yes, the stainless steel (SS316) housing and wetted parts provide excellent corrosion resistance, making it suitable for a wide range of media including water, oils, and many industrial fluids. For highly aggressive chemicals, verify the material compatibility of SS316 with your specific application.

Is the pressure range or output configurable?

The 0-20 MPa measurement range is fixed by the hardware. However, the digital output via RS485 Modbus is field-configurable. You can set parameters such as the Modbus slave address, baud rate, and data format using specific configuration commands sent over the RS485 interface.

Package Includes

  • 1 x Pro-Range PR17C-RS-200 Pressure Gauge

Additional Information

Weight 0.825 kg
Dimensions 12.3 × 12 cm
