Pro-Range PR15C-PA-200 Pressure Sensor 0-20 MPa - 4-20mA Output, G1/4 Thread, 1m Cable

Name: Pro-Range PR15C-PA-200 Pressure Sensor 0-20 MPa - 4-20mA Output, G1/4 Thread, 1m Cable
Brand: Pro-Range
SKU: SENS-2215
Price: 2969.00 INR
Availability: OutOfStock

₹2,969.00 (Inclusive of all taxes)

Out of Stock

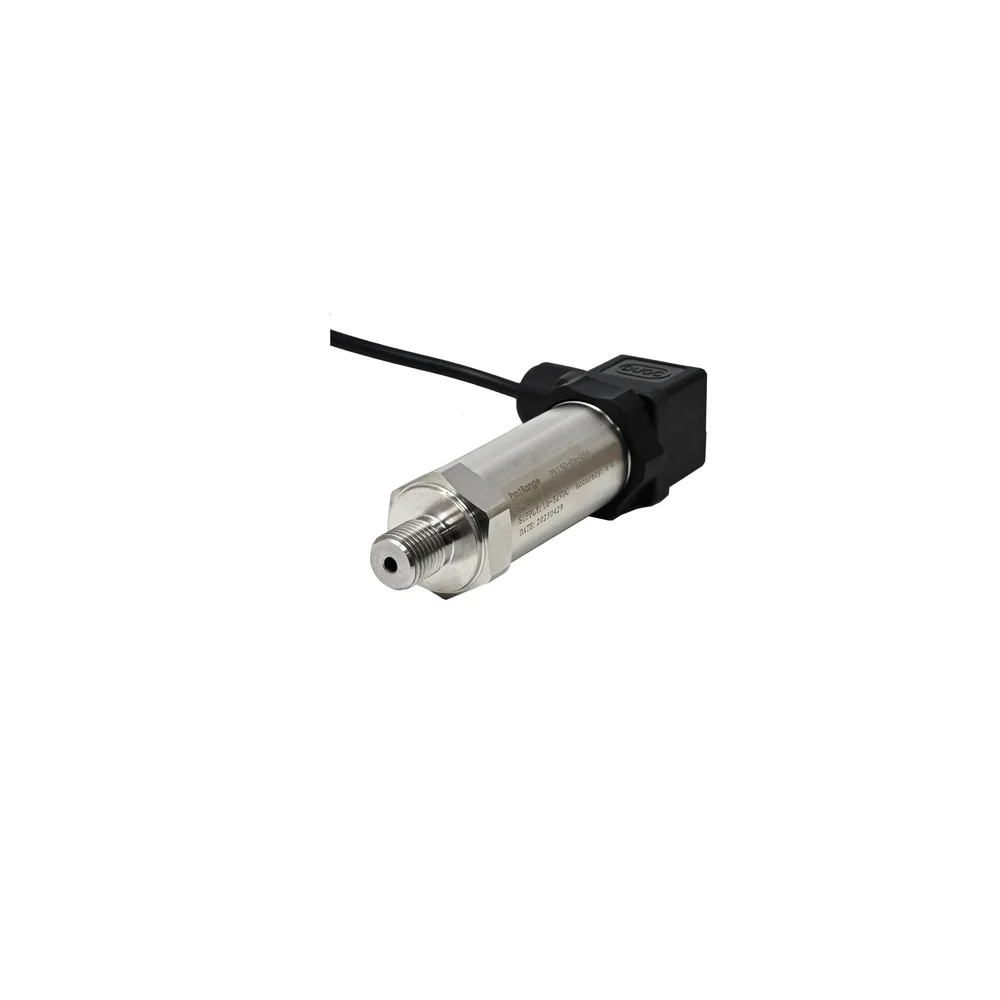

The Pro-Range PR15C-PA-200 is a robust industrial pressure transmitter delivering a 4-20mA analog output signal for pressures up to 20 MPa. Featuring a G1/4 threaded port and a 1-meter pre-wired cable, it is engineered for direct integration into hydraulic, pneumatic, and process control systems requiring reliable, high-pressure monitoring.

Features

High-pressure measurement range of 0 to 20 MPa (0-2900 psi).
Industry-standard 4-20mA two-wire analog output for noise-resistant signal transmission.
Stainless steel construction with G1/4 threaded port for secure, leak-proof installation.

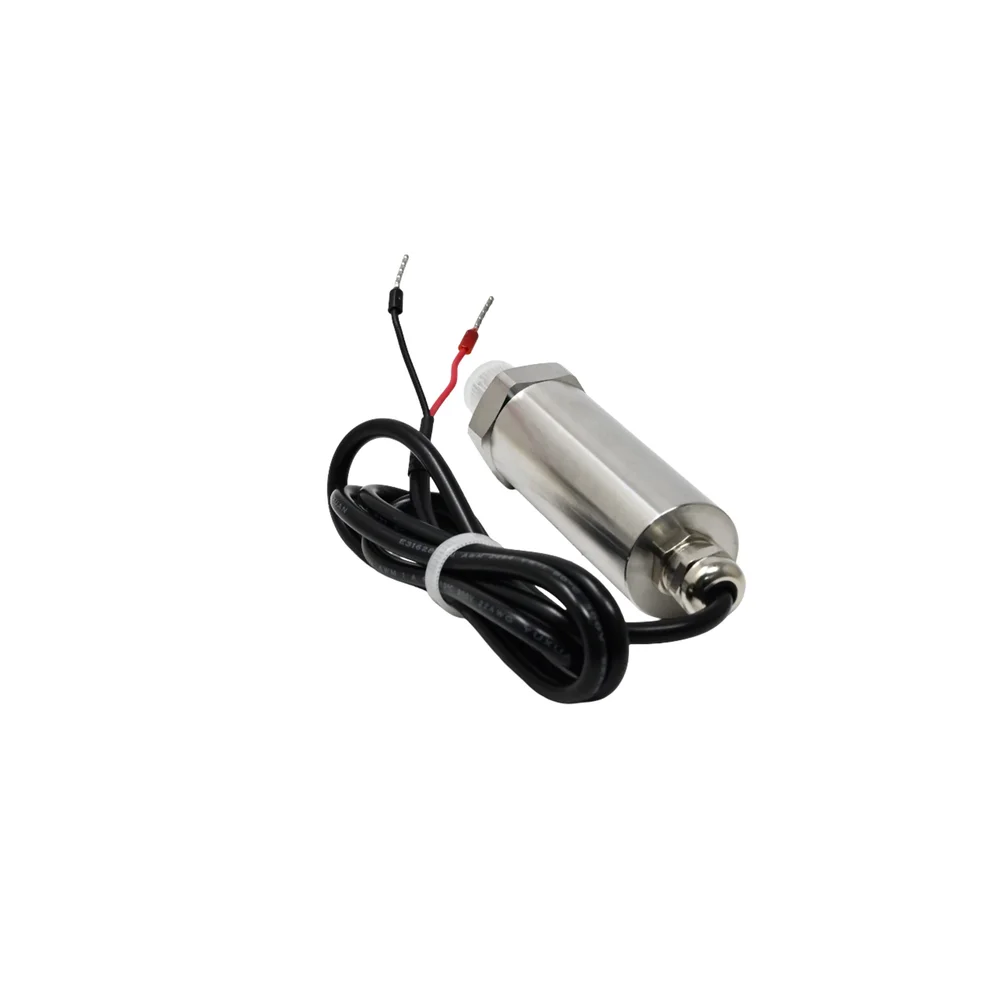

Integrated 1-meter pre-wired cable for simplified field connection and setup.
Wide 10-32 VDC supply voltage range compatible with industrial PLCs and control panels.

Out of stock

Get Notified When Available

Description

The PR15C-PA-200 pressure sensor utilizes a high-stability sensing element, likely a piezoresistive strain gauge, to deliver accurate pressure readings across its full 20 MPa range. The 4-20mA current-loop output provides inherent immunity to electrical noise and voltage drop over long cable runs, making it ideal for industrial environments.

Constructed from corrosion-resistant stainless steel, the sensor body and diaphragm are designed to withstand harsh conditions, including exposure to aggressive media in hydraulic and process applications. Its compact form factor and standard G1/4 thread facilitate straightforward mounting into pipelines, manifolds, or test benches.

Key Features

Robust stainless steel housing ensures durability and corrosion resistance in demanding environments.
High-accuracy 4-20mA current output provides stable, long-distance signal transmission with minimal interference.
Wide operating voltage range (10-32 VDC) offers flexible power supply compatibility for industrial control systems.
Pre-calibrated and pre-wired with a 1-meter cable, reducing installation time and potential wiring errors.
Standard G1/4 industrial thread ensures a secure, pressure-tight seal for high-pressure fluid lines.
Optimized performance-to-cost ratio for reliable pressure monitoring in OEM and system integration projects.

Applications

High-pressure hydraulic system monitoring in machinery and presses.
Process pressure control and monitoring in chemical and water treatment plants.
Pneumatic system pressure regulation in manufacturing and automation lines.
Pressure testing and data acquisition in R&D and quality assurance labs.
Integration into PLC-based industrial control panels for pump and valve management.

Technical Specifications

Model Number	PR15C-PA-200
Pressure Range	0 - 20 MPa
Output Signal	4 - 20 mA (Two-Wire)
Supply Voltage	10 - 32 VDC
Thread Size	G1/4
Cable Length	1 meter
Body Length	116 mm
Body Diameter	30 mm
Housing Material	Stainless Steel
Weight	207 g

Frequently Asked Questions

What is the wiring diagram for the 4-20mA output?

This is a two-wire current loop device. Connect the positive supply wire (10-32 VDC) to the sensor's positive (typically red) cable lead. The sensor's negative (typically black) cable lead connects to the positive input of your 4-20mA receiver (PLC analog input, display, etc.). The receiver's negative terminal then returns to the power supply negative, completing the loop. The sensor modulates the loop current between 4mA (0 pressure) and 20mA (full-scale pressure).

Can this sensor be used with liquids and aggressive media?

Yes, the stainless steel wetted parts and diaphragm provide good corrosion resistance against many common industrial fluids, including water, hydraulic oil, and certain chemicals. For highly aggressive media, please verify the specific stainless steel grade (e.g., 316) compatibility with your application or consult the manufacturer's datasheet for media compatibility details.

What is the accuracy and long-term stability of this pressure sensor?

While the exact accuracy class (e.g., 0.5% FS) should be confirmed via the official datasheet, sensors in this category typically offer good linearity and repeatability suitable for industrial monitoring. The 4-20mA output and robust construction contribute to stable long-term performance with minimal drift, even in environments with vibration and temperature fluctuations.
