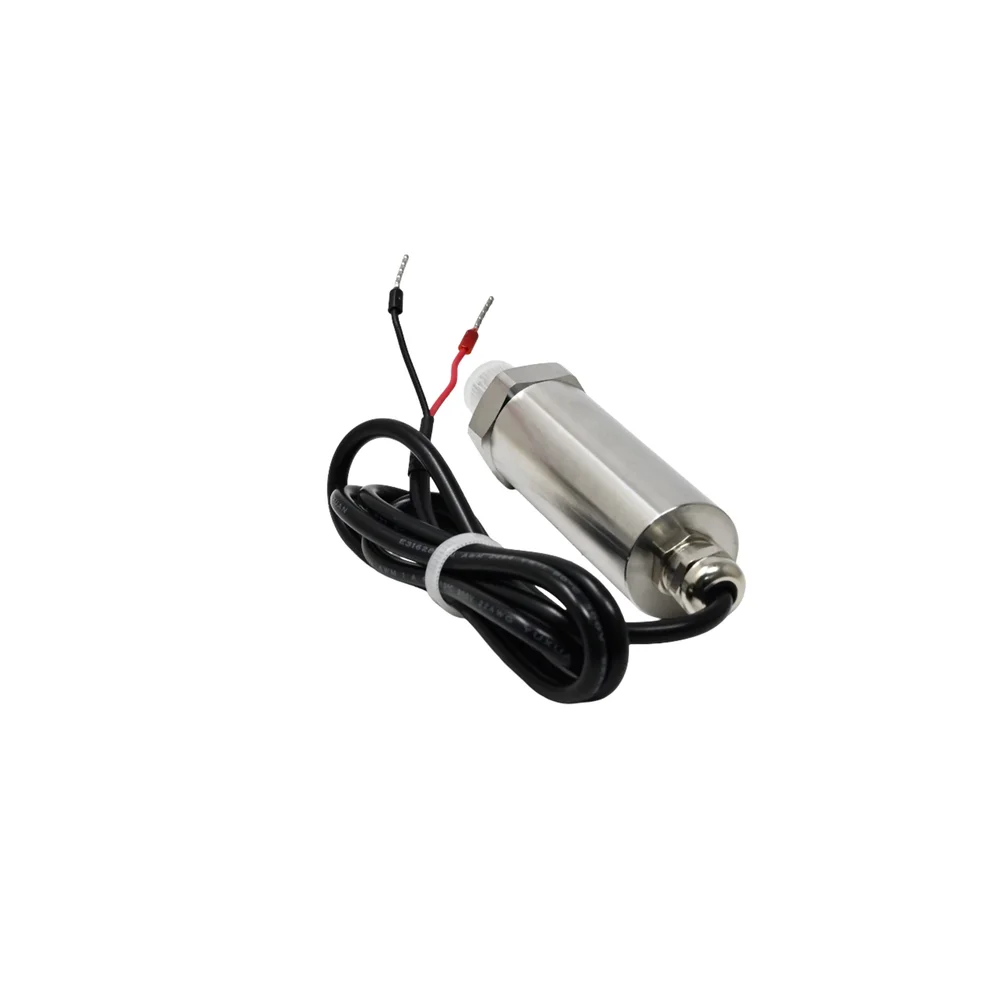

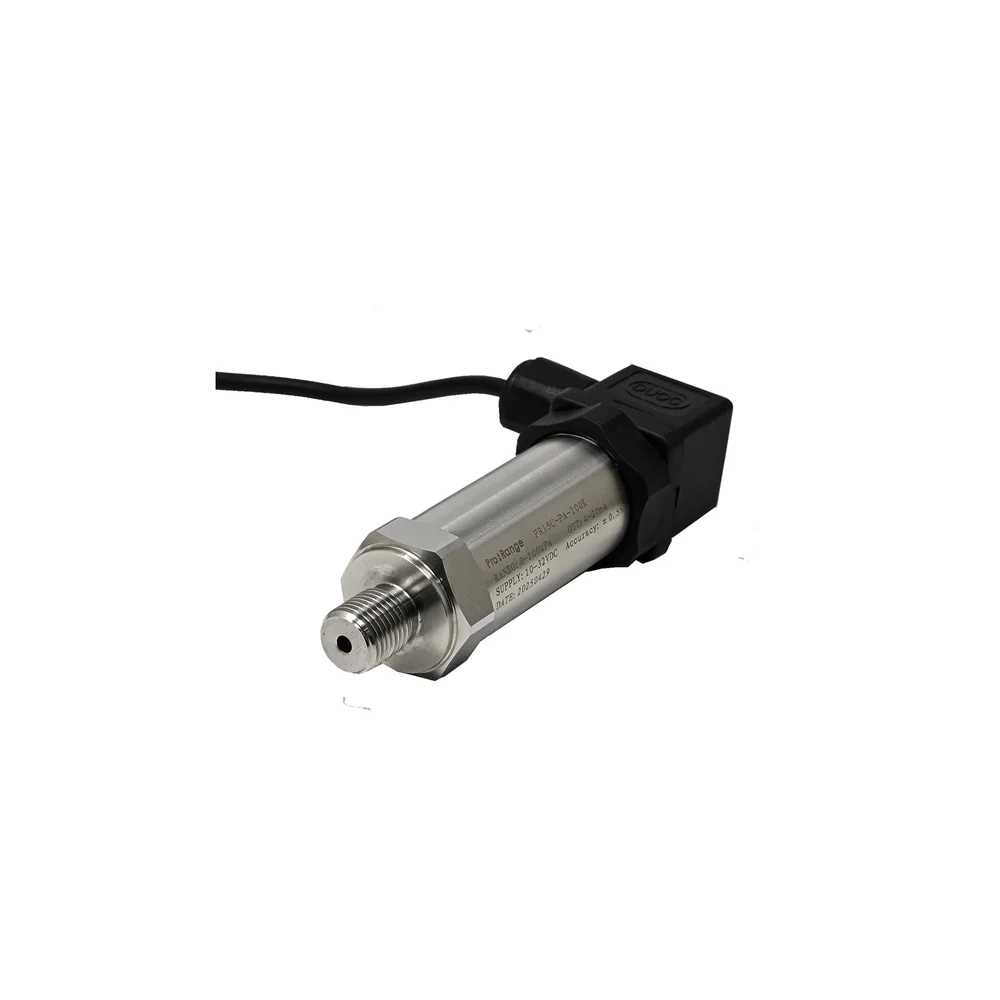

Pro-Range PR15C-PA-100K Pressure Sensor 0-100kPa 4-20mA Output - G1/4 Thread w/ 1m Cable
The Pro-Range PR15C-PA-100K is a 4-20mA industrial pressure transmitter designed for precise measurement of gauge pressure up to 100 kPa. Featuring a G1/4 threaded process connection and a 1-meter integral cable, it provides reliable signal integration with PLCs, DCS, and other industrial control systems operating from a 10-32 VDC loop supply.
Features
- Measures gauge pressure from 0 to 100 kPa with high accuracy and stability.
- Standard 4-20 mA two-wire analog output for robust, noise-resistant signal transmission.
- Corrosion-resistant stainless steel housing with a standard G1/4 male threaded process connection.
- Wide operating voltage range of 10 to 32 VDC for flexible system integration.
- Includes a 1-meter shielded cable for simplified installation and connection.
Out of stock
The PR15C-PA-100K pressure sensor utilizes a high-stability sensing element, typically a piezoresistive silicon MEMS chip, coupled with advanced signal conditioning circuitry. This design ensures accurate conversion of applied pressure into a proportional 4-20 mA current signal, offering excellent long-term stability and temperature compensation for reliable operation in industrial environments.
Built with a durable stainless steel body, the sensor is engineered for longevity in pneumatic, hydraulic, and general process monitoring applications. Its compact form factor (30mm diameter, 116mm length) and standard G1/4 thread allow for straightforward installation directly into pipelines, manifolds, or test equipment.
Additional Information
| Weight | 0.207 kg |
|---|---|
| Dimensions | 11.6 cm |
