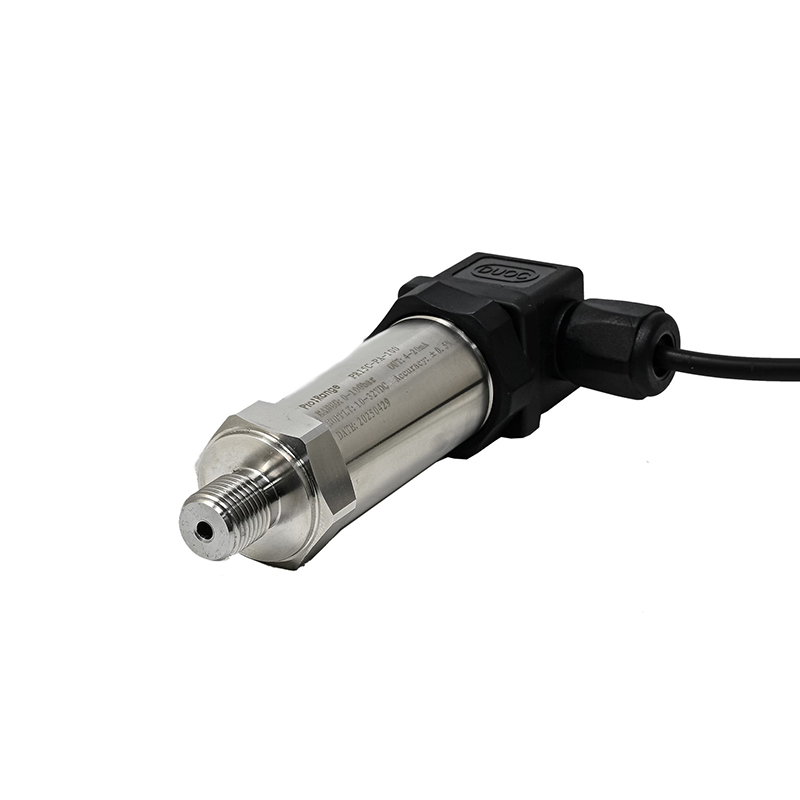

Pro-Range PR15C-PA-100 Pressure Sensor 0-10MPa 4-20mA Output - G1/4 Thread w/ 1m Cable

Name: Pro-Range PR15C-PA-100 Pressure Sensor 0-10MPa 4-20mA Output - G1/4 Thread w/ 1m Cable
Brand: Pro-Range
SKU: SENS-2217
Price: 2739.00 INR
Availability: OutOfStock

₹2,739.00 (Inclusive of all taxes)

Out of Stock

The Pro-Range PR15C-PA-100 is a robust industrial pressure transmitter delivering a stable 4-20mA analog output signal for pressures up to 10MPa. Featuring a G1/4 threaded port and a 1-meter pre-wired cable, it is designed for direct integration with PLCs, DCS, and data acquisition systems requiring reliable hydraulic or pneumatic pressure monitoring.

Features

0-10 MPa (0-1450 psi) pressure measurement range with high accuracy.
Industry-standard 4-20mA two-wire analog output for noise-resistant signal transmission.
Robust stainless steel housing ensures durability in harsh industrial environments.
G1/4 threaded pressure port for secure installation into hydraulic/pneumatic lines.

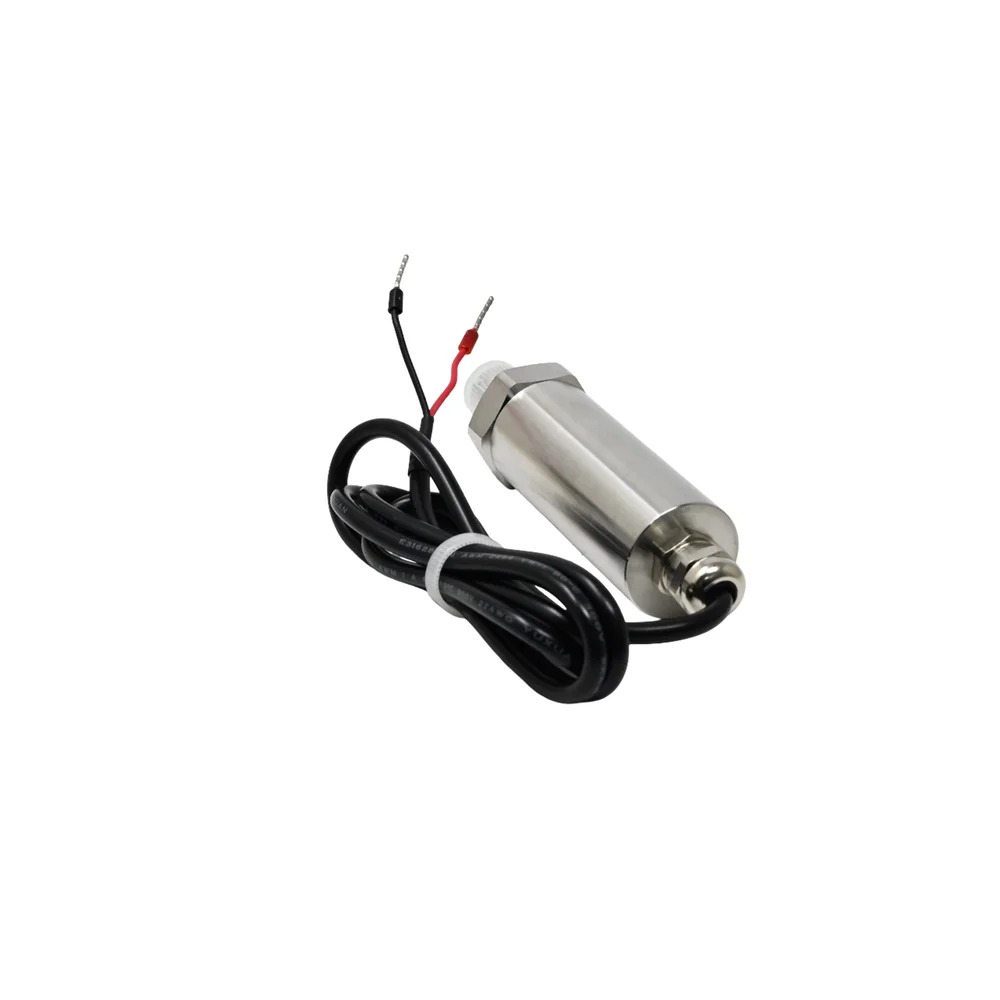

Includes a 1-meter pre-wired cable for simplified connection and setup.

Out of stock

Get Notified When Available

Description

The PR15C-PA-100 pressure sensor operates on the piezoresistive sensing principle, where a stainless steel diaphragm and internal strain gauge bridge convert applied pressure into a precise electrical signal. This signal is conditioned and transmitted as a linear 4-20mA current loop, providing excellent immunity to electrical noise over long cable runs, making it ideal for industrial control panels and remote monitoring stations.

Constructed with a corrosion-resistant stainless steel body, the sensor is built to withstand demanding conditions including vibration, moisture, and exposure to common industrial media. Its wide 10-32V DC supply voltage range ensures compatibility with standard 24V industrial power supplies, while the integrated 1-meter cable facilitates quick deployment without the need for separate field wiring.

Key Features

High-performance piezoresistive sensing element for precise pressure measurement.
Two-wire 4-20mA current loop output ensures stable, long-distance signal integrity.
Wide operating voltage range (10-32V DC) compatible with standard industrial power supplies.
Durable SUS304 or equivalent stainless steel housing for corrosion and impact resistance.
G1/4 international parallel thread (ISO 228) for leak-proof installation into pressure lines.
Pre-calibrated for plug-and-play operation, ensuring minimal setup time.
Excellent long-term stability and repeatability for critical process control applications.
Optimized performance-to-cost ratio for industrial automation and machinery monitoring.

Applications

Hydraulic pressure monitoring in injection molding machines and press brakes.
Pneumatic system pressure regulation and leak detection in factory automation.
Process control and vessel pressure monitoring in chemical and water treatment plants.
Pump and compressor discharge pressure safeguarding in industrial HVAC systems.
Test bench and fluid power system performance validation and data logging.

Technical Specifications

Manufacturer Part Number	PR15C-PA-100
Pressure Range	0 - 10 MPa
Output Signal	4 - 20 mA (Two-Wire)
Supply Voltage	10 - 32 V DC
Thread Connection	G1/4
Cable Length	1 m
Body Material	Stainless Steel
Body Length	116 mm
Body Diameter	30 mm
Operating Temperature	Refer to Datasheet
Accuracy	Refer to Datasheet
IP Rating	Refer to Datasheet

Frequently Asked Questions

What is the wiring diagram for the 4-20mA output?

This is a two-wire current loop sensor. Connect the positive (red) wire to your DC power supply (10-32V) and the negative (black) wire to the positive input of your 4-20mA receiver (PLC, data logger). The same two wires carry both power and signal. Ensure your receiver has a 250-ohm resistor or equivalent input impedance to convert the current to a voltage for measurement.

Is this sensor suitable for use with hydraulic oil?

Yes, the stainless steel wetted parts and G1/4 threaded port are designed for compatibility with common hydraulic fluids, oils, and water. For specific media compatibility or aggressive chemicals, consult the manufacturer's datasheet for the exact seal material specifications to ensure long-term reliability.

Can the pressure range or output signal be customized?

Yes, the Pro-Range series often supports customization. Parameters like pressure range (e.g., 0-25MPa), output signal (RS485 Modbus, 0-5V, 0-10V), and thread size (G1/2, M20x1.5) can typically be specified. Contact the supplier or manufacturer with your specific requirements for a tailored solution.

What is the accuracy and long-term stability of this sensor?

Industrial-grade pressure transmitters like the PR15C-PA-100 typically offer high accuracy (often 0.5% FS or better) and excellent long-term stability due to the piezoresistive sensing technology and robust construction. For the exact accuracy class, temperature compensation range, and long-term drift specifications, please refer to the official product datasheet.
