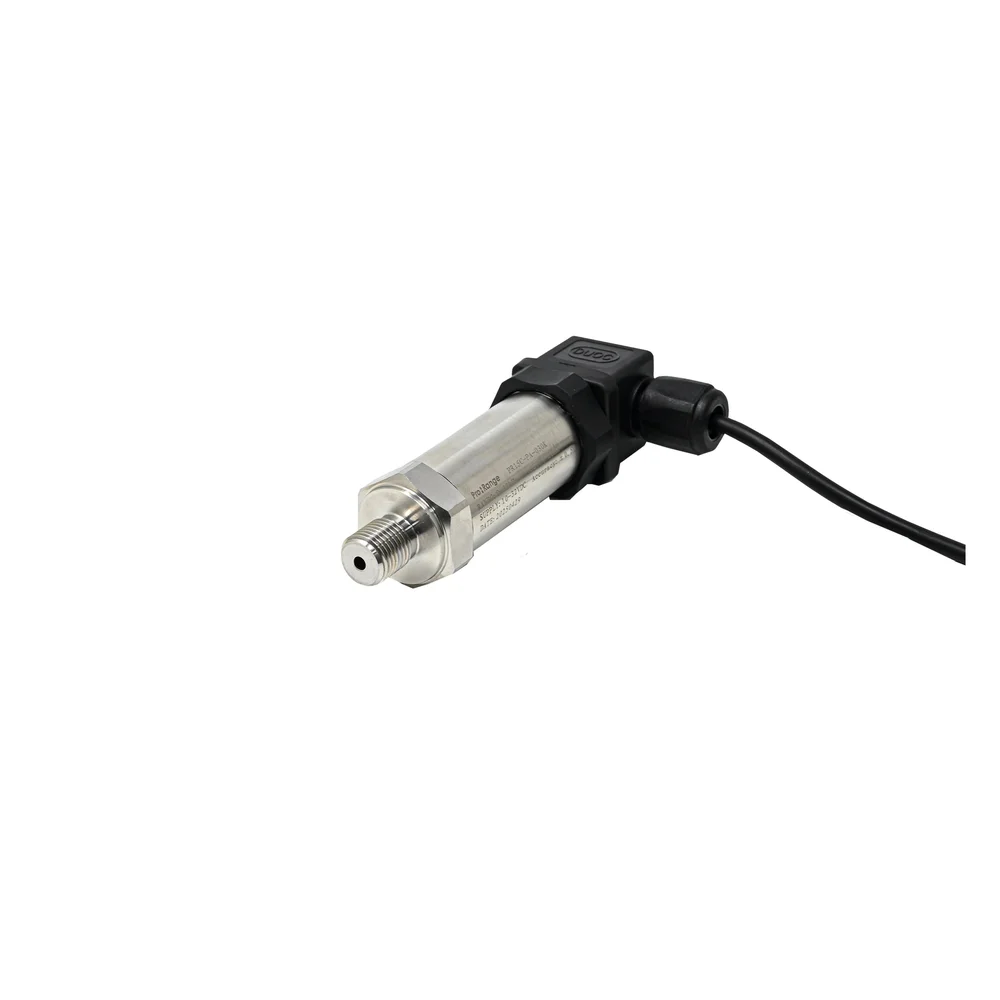

Pro-Range PR15C-PA-030K Pressure Sensor 0-30 kPa, 4-20mA Output, G1/4 Thread, 1m Cable

Name: Pro-Range PR15C-PA-030K Pressure Sensor 0-30 kPa, 4-20mA Output, G1/4 Thread, 1m Cable
Brand: Pro-Range
SKU: SENS-2232
Price: 2349.00 INR
Availability: OutOfStock

₹2,349.00 (Inclusive of all taxes)

Out of Stock

The Pro-Range PR15C-PA-030K is a 4-20mA industrial pressure transmitter designed for precise measurement of low-pressure pneumatic and hydraulic systems up to 30 kPa. Featuring a G1/4 threaded process connection and a 1-meter cable, it integrates directly with PLCs, DCS, and data acquisition systems requiring a standard 2-wire current loop signal.

Features

0 to 30 kPa gauge pressure measurement range for low-pressure monitoring.
Standard 4-20mA two-wire analog output for robust, noise-immune signal transmission over distance.
G1/4″ threaded process connection for secure installation in pneumatic lines and manifolds.
Wide 10-32 VDC supply voltage range compatible with industrial power standards.
Durable stainless steel housing ensures reliable performance in demanding environments.

Out of stock

Get Notified When Available

Description

The PR15C-PA-030K pressure sensor utilizes a high-stability sensing element to convert applied pressure into a proportional 4-20mA electrical signal. This two-wire loop-powered design simplifies wiring and is intrinsically safe for many industrial applications, providing a linear output that is easily scaled within PLC or SCADA software.

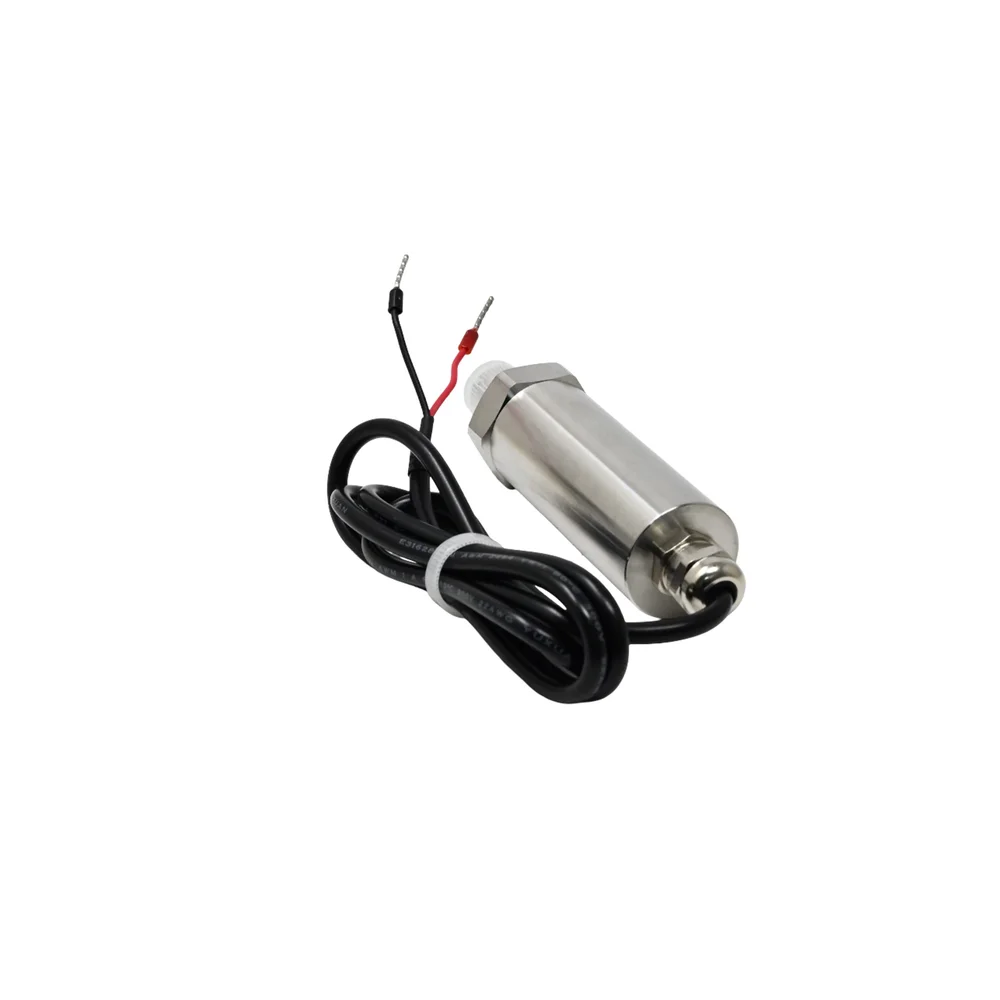

Constructed with a robust stainless steel body, the sensor is built to withstand the vibrations and media compatibility challenges common in industrial settings. The integrated 1-meter cable with flying leads facilitates direct connection to terminal blocks or junction boxes, streamlining the installation process for system integrators and maintenance engineers.

Key Features

Industrial 4-20mA Output: Provides a standardized, long-distance compatible signal with high noise immunity for control systems.
Wide Operating Voltage: Supports a 10 to 32 VDC power range, accommodating typical 12V, 24V, and 30V industrial power supplies.
Precision Low-Pressure Sensing: Accurately measures gauge pressure from 0 up to 30 kilopascals (kPa) for precise system monitoring.
Robust Mechanical Design: Features a durable stainless steel housing and G1/4" threaded port for reliable, leak-free installation.
Integrated Connection: Includes a fixed 1-meter cable for immediate wiring without the need for separate connectors.
Compact Form Factor: Measures 116mm in length with a 30mm diameter, enabling installation in space-constrained locations.

Applications

Monitoring air pressure in pneumatic control systems and actuator lines.
Measuring low-pressure liquid levels in tanks via hydrostatic pressure.
Integrating into HVAC systems for duct pressure and airflow verification.
Providing feedback for pump and compressor control loops in industrial processes.
Testing and monitoring filter clogging or system blockage in fluid networks.

Technical Specifications

Manufacturer Part Number	PR15C-PA-030K
Pressure Range	0 to 30 kPa (Gauge)
Output Signal	4-20 mA (2-Wire)
Supply Voltage	10 to 32 VDC
Process Connection	G1/4 Thread
Cable Length	1 Meter
Housing Material	Stainless Steel
Length	116 mm
Diameter	30 mm
Weight	208 g

Frequently Asked Questions

What is the power supply requirement for this 4-20mA pressure sensor?

The Pro-Range PR15C-PA-030K operates on a wide 10 to 32 VDC supply range. It is a two-wire loop-powered device, meaning the same two wires carry both the power supply and the output current signal. A typical 24V DC industrial power supply is commonly used.

How do I wire the sensor's 4-20mA output to my PLC or data logger?

Connect the sensor's two wires in series with the positive terminal of your DC power supply and the analog input of your PLC or data logger configured for current measurement (usually across a 250-ohm resistor). The output current will vary linearly between 4 mA (at 0 kPa) and 20 mA (at 30 kPa). Ensure polarity is observed.

Is this sensor suitable for measuring liquid pressure?

Yes, the stainless steel construction and G1/4 threaded port make it compatible with many non-corrosive liquids, such as water or hydraulic oils. Ensure the media is compatible with 316 stainless steel. For aggressive chemicals, verify material compatibility or inquire about alternative diaphragm materials.

Can the pressure range or output signal be customized?

Yes, the Pro-Range series often supports customization. Parameters like pressure range (e.g., 0-25 MPa), output signal (RS485 Modbus, 0-5V, 0-10V), thread type (G1/2, M20x1.5), and cable length can potentially be specified. Contact the supplier's sales team with your specific application requirements.
