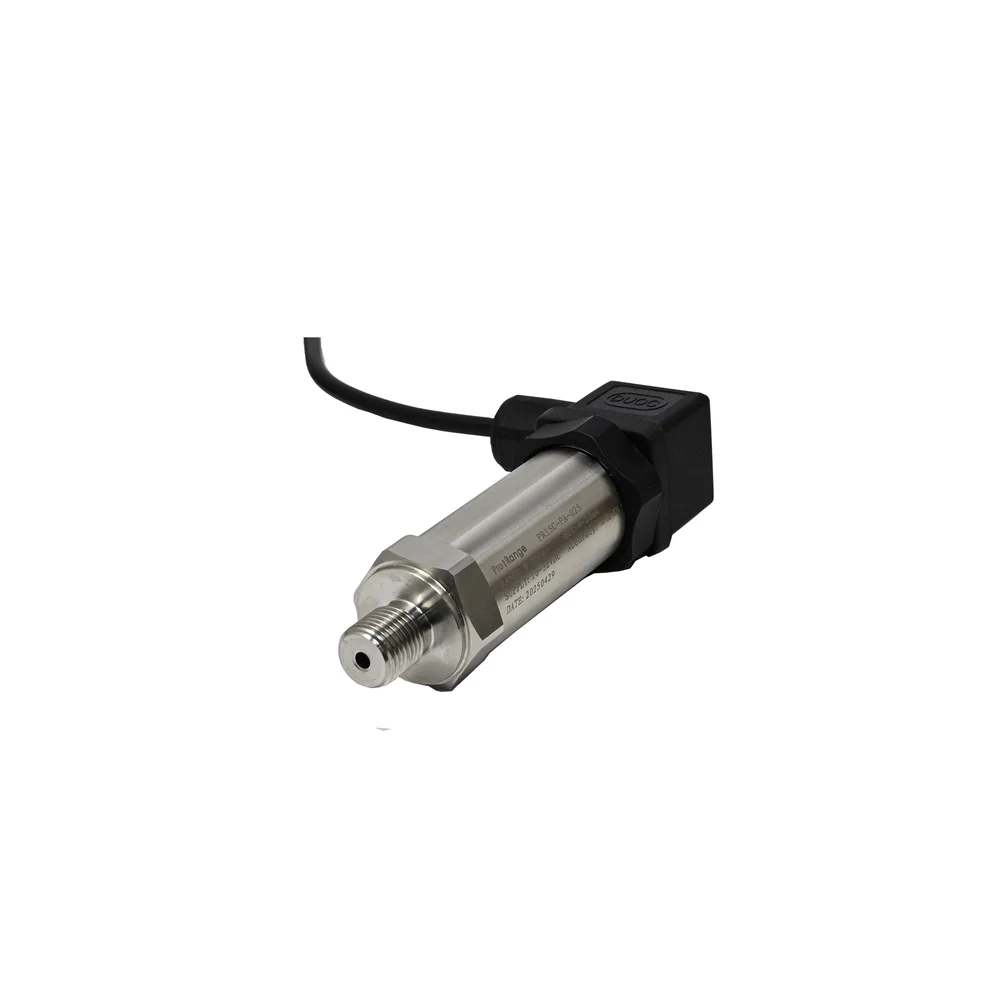

Pro-Range PR15C-PA-025 Pressure Sensor 0-2.5 MPa - 4-20mA Output, G1/4 Thread, 1m Cable

Name: Pro-Range PR15C-PA-025 Pressure Sensor 0-2.5 MPa - 4-20mA Output, G1/4 Thread, 1m Cable
Brand: Pro-Range
SKU: SENS-2219
Price: 2629.00 INR
Availability: OutOfStock

₹2,629.00 (Inclusive of all taxes)

Out of Stock

The Pro-Range PR15C-PA-025 is a robust industrial pressure transmitter delivering a stable 4-20mA analog output signal for pressures up to 2.5 MPa. Featuring a G1/4 threaded stainless steel housing and a 1-meter pre-wired cable, it is engineered for direct integration with PLCs, DCS, and industrial control systems in demanding hydraulic and pneumatic applications.

Features

High-performance pressure sensing up to 2.5 MPa (362.5 psi) with reliable 4-20mA analog output.
Robust SUS-304 stainless steel housing ensures durability in harsh, wet, and chemically aggressive environments.
Standard G1/4 threaded connection and 1-meter pre-wired cable for simplified, tool-free installation.
Wide 10-32V DC operating voltage range compatible with standard industrial power supplies.
Engineered for hydraulic systems, pneumatic equipment, and industrial process control monitoring.

Out of stock

Get Notified When Available

Description

The Pro-Range PR15C-PA-025 is a piezoresistive pressure transmitter designed for precision measurement in industrial automation. It converts applied pressure into a highly stable, noise-resistant 4-20mA current loop signal, ensuring accurate data transmission over long distances to PLCs and data acquisition systems without signal degradation.

Constructed with a solid stainless steel body and sealed electronics, the sensor is built to withstand vibration, moisture, and exposure to common industrial fluids. Its compact form factor, with a 30mm diameter and 116mm length, allows for installation in confined spaces. The integrated 1-meter cable terminates in flying leads for direct wiring to control panels, streamlining the deployment process in critical monitoring points.

Key Features

Industrial-grade 4-20mA two-wire current loop output for superior noise immunity.
High-accuracy piezoresistive sensing core with excellent long-term stability and repeatability.
Wide operating voltage range (10-32V DC) for flexible integration into 12V or 24V control systems.
Durable SUS-304 stainless steel pressure port and housing with IP67-equivalent sealing.
Standard G1/4 female thread for secure mounting into hydraulic test points, manifolds, or pipelines.
Pre-attached 1-meter shielded cable simplifies wiring and reduces installation time.
Optimized performance-to-cost ratio for OEM and high-volume industrial applications.

Applications

Hydraulic system pressure monitoring and safety cutoff control in machinery.
Pneumatic line pressure regulation and monitoring in factory automation.
Process control and fluid pressure measurement in chemical and water treatment plants.
Compressed air system performance monitoring and leak detection.
Test bench and calibration rig instrumentation for pressure-dependent parameters.

Technical Specifications

Manufacturer Part Number	PR15C-PA-025
Pressure Range	0 - 2.5 MPa
Output Signal	4 - 20 mA (Two-Wire)
Operating Voltage	10 - 32 V DC
Thread Size	G1/4
Cable Length	1 m
Housing Material	Stainless Steel (SUS-304)
Body Diameter	30 mm
Body Length	116 mm
Weight	207 g

Frequently Asked Questions

What is the wiring diagram for the 4-20mA output?

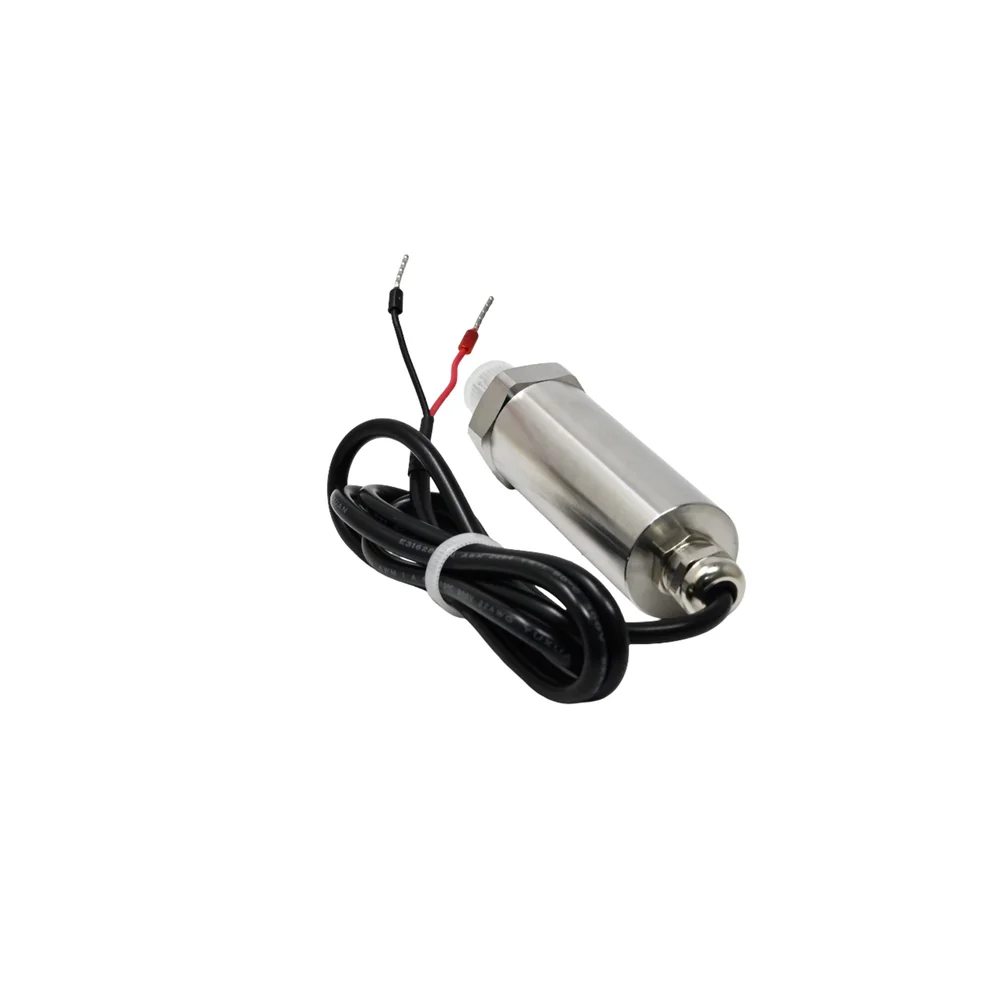

This is a two-wire 4-20mA loop-powered sensor. Connect the positive (red) wire to your DC power supply (10-32V) and the negative (black) wire to your PLC analog input or current readout device. The sensor draws current proportional to the measured pressure, completing the loop through the same two wires.

Can this sensor be used with liquids and aggressive media?

Yes, the stainless steel (SUS-304) pressure port is compatible with water, hydraulic oil, air, and many non-corrosive gases and liquids. For highly aggressive chemicals, verify the media compatibility of SUS-304 stainless steel or consult the manufacturer for optional diaphragm materials.

What is the accuracy and long-term stability of this sensor?

The sensor utilizes a high-stability piezoresistive sensing element. Typical accuracy is within ±0.5% Full Scale (FS), including nonlinearity, hysteresis, and repeatability. It is designed for minimal zero and span drift over time, ensuring reliable performance in continuous industrial monitoring applications.

Is the cable removable or replaceable?

No, the 1-meter cable is permanently attached and sealed to the sensor housing to maintain its environmental protection rating. For installations requiring a different cable length or connector, it is recommended to splice into the provided cable inside a suitable junction box.
