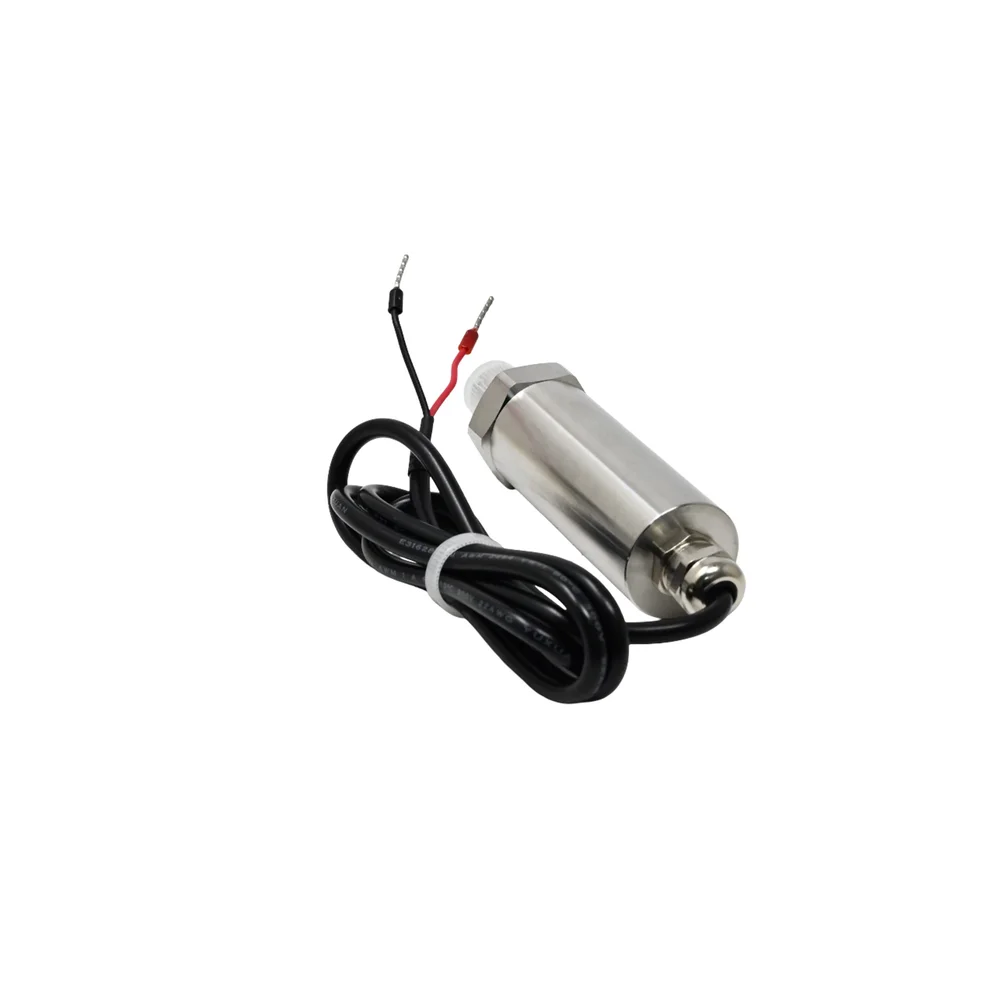

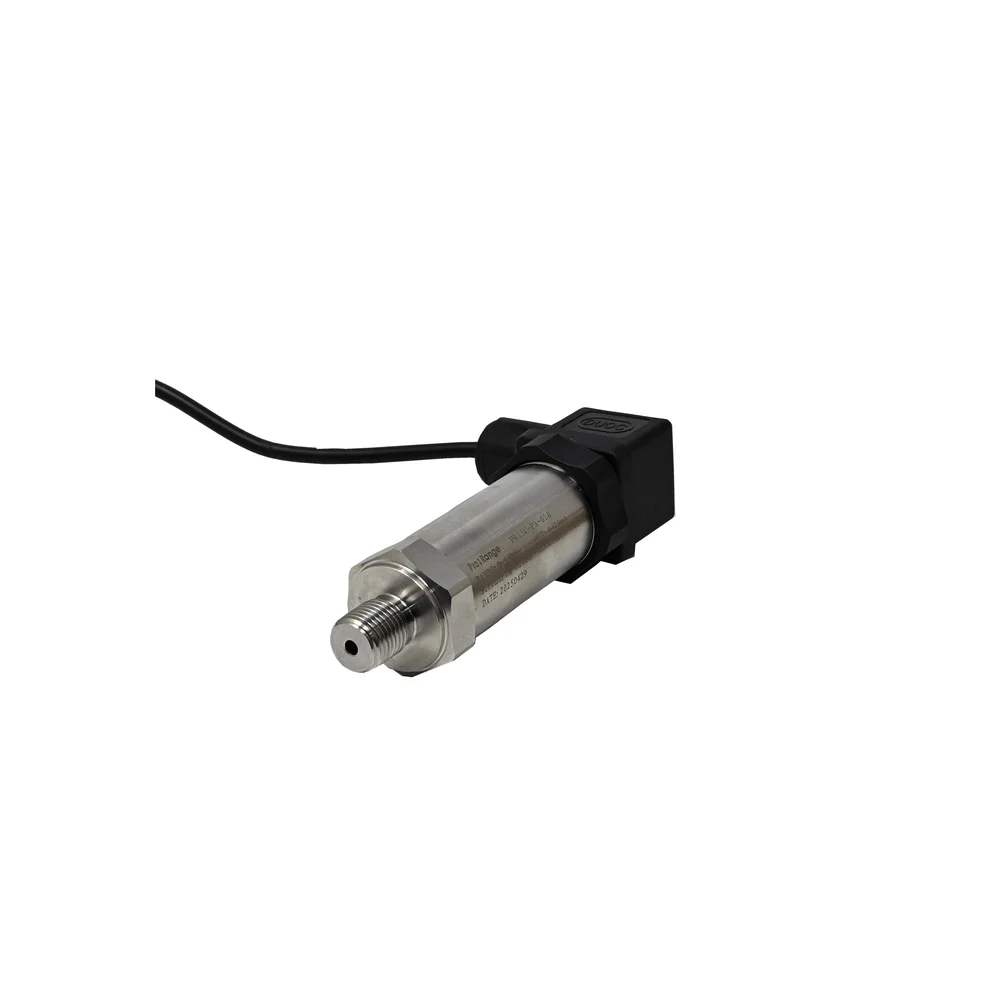

Pro-Range PR15C-PA-010 Pressure Sensor 0-1 MPa, 4-20mA Output, G1/4 Thread, 1m Cable

Name: Pro-Range PR15C-PA-010 Pressure Sensor 0-1 MPa, 4-20mA Output, G1/4 Thread, 1m Cable
Brand: Pro-Range
SKU: SENS-2221
Price: 2349.00 INR
Availability: OutOfStock

₹2,349.00 (Inclusive of all taxes)

Out of Stock

The Pro-Range PR15C-PA-010 is a 4-20mA output pressure transmitter designed for industrial PLC and control system integration. Featuring a G1/4 threaded stainless steel housing and a 1-meter pre-wired cable, it provides reliable 0-1 MPa pressure monitoring in hydraulic, pneumatic, and automation environments.

Features

4-20mA analog output for stable, long-distance signal transmission to PLCs.
Stainless steel construction with G1/4 thread for robust industrial durability.
Wide 10-32 VDC supply voltage range for flexible system integration.
Precision measurement across a 0 to 1 MPa (0-145 psi) pressure range.
Includes a 1-meter pre-wired cable for simplified installation.

Out of stock

Get Notified When Available

Description

The PR15C-PA-010 pressure sensor operates on a piezoresistive sensing principle, providing a highly linear 4-20mA current output proportional to the applied pressure. This two-wire loop-powered design ensures excellent noise immunity and signal stability over extended cable runs, making it suitable for integration into industrial distributed control systems (DCS) and programmable logic controllers (PLCs).

Encased in a durable stainless steel body with a G1/4 process connection, the sensor is engineered for long-term reliability in demanding environments, including hydraulic power units, pneumatic control circuits, and fluid processing systems. Its compact form factor and pre-attached cable facilitate straightforward mounting and connection.

Key Features

Industrial-grade 4-20mA two-wire current loop output.
High-accuracy piezoresistive sensing element with stable performance.
Robust SUS-304 stainless steel housing and pressure port.
Wide operating voltage range from 10 to 32 VDC.
G1/4 female threaded connection for secure process integration.
Pre-wired with a 1-meter shielded cable for immediate installation.
Optimized performance-to-cost ratio for industrial automation.
Designed for hydraulic, pneumatic, and general industrial pressure monitoring.

Applications

Industrial hydraulic system pressure monitoring and control.
Pneumatic circuit pressure regulation in automation machinery.
Fluid pressure measurement in water treatment and process control systems.
Compressed air line monitoring for energy management and leak detection.
Integration with PLCs and SCADA systems for industrial data acquisition.

Technical Specifications

Manufacturer Part Number	PR15C-PA-010
Pressure Range	0 - 1 MPa
Output Signal	4 - 20 mA (Analog)
Supply Voltage	10 - 32 VDC
Process Connection	G1/4 Thread
Cable Length	1 Meter
Housing Material	Stainless Steel
Body Length	116 mm
Body Diameter	30 mm
Weight	207 g

Frequently Asked Questions

What is the operating voltage range for this 4-20mA pressure sensor?

The Pro-Range PR15C-PA-010 pressure transmitter operates on a two-wire, loop-powered 4-20mA circuit with a supply voltage range of 10 to 32 VDC. This wide range ensures compatibility with most industrial power supplies and PLC analog input modules.

How do I wire the sensor's 4-20mA output to my PLC or data logger?

Connect the positive (red) wire of the sensor's 1-meter cable to your positive DC power supply (10-32V). Connect the negative (black) wire to the positive input of your PLC's analog current input channel. Finally, connect the negative terminal of your PLC's channel to the negative side of the same DC power supply, completing the loop.

Can this sensor be used with liquids and gases?

Yes, the stainless steel G1/4 threaded port and robust housing make this sensor suitable for use with compatible, non-corrosive liquids and gases within its 0-1 MPa pressure rating. Ensure the media is compatible with stainless steel to prevent damage or corrosion.

Is the 1-meter cable length fixed, or can it be extended?

The cable is pre-wired and fixed at 1 meter. For longer runs, you can splice and extend the cable using proper shielded industrial cable and waterproof connectors, taking care to maintain signal integrity and loop resistance within the 4-20mA system limits.
