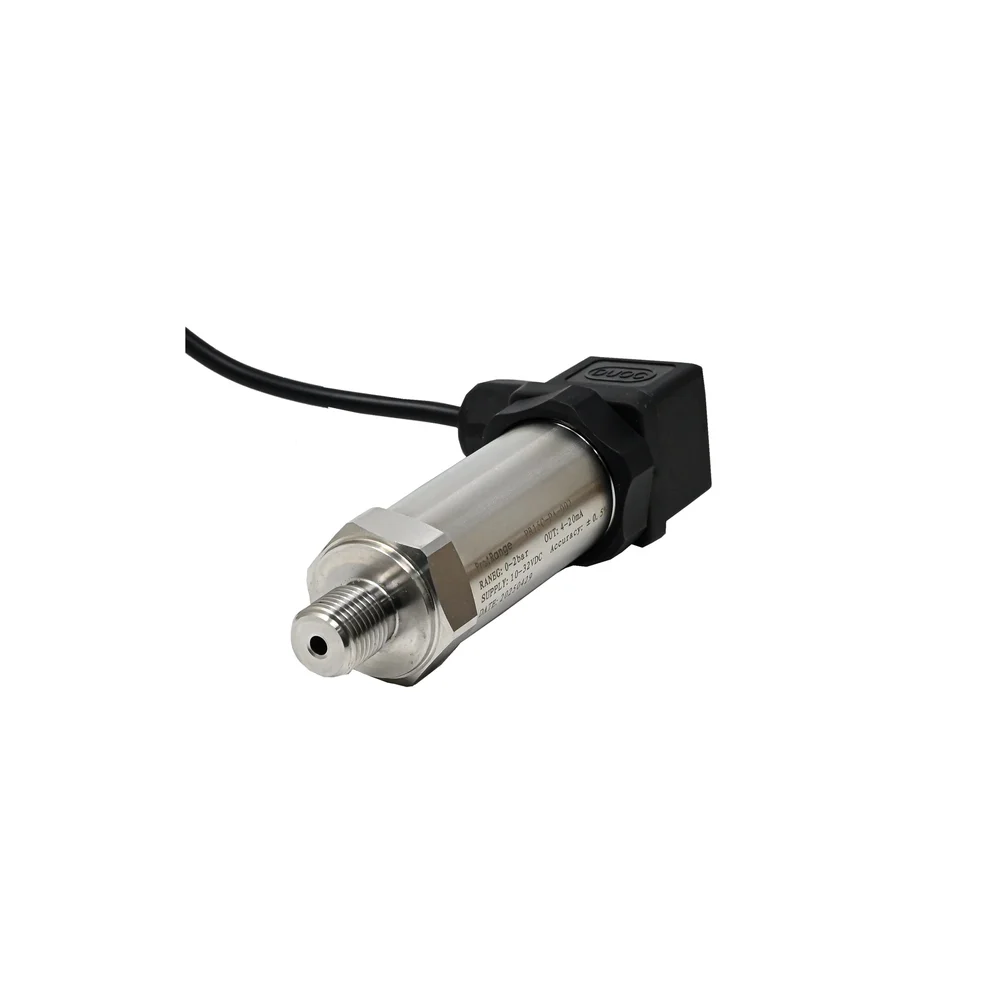

Pro-Range PR15C-PA-002 Pressure Sensor 0-0.2 MPa, 4-20mA Output, G1/4 Thread, 1m Cable

Name: Pro-Range PR15C-PA-002 Pressure Sensor 0-0.2 MPa, 4-20mA Output, G1/4 Thread, 1m Cable
Brand: Pro-Range
SKU: SENS-2223
Price: 2349.00 INR
Availability: OutOfStock

₹2,349.00 (Inclusive of all taxes)

Out of Stock

The Pro-Range PR15C-PA-002 is a 4-20mA output pressure transmitter designed for low-pressure industrial monitoring. Featuring a G1/4 threaded stainless steel housing and a 1-meter pre-wired cable, it provides a robust and reliable interface for PLCs, DCS, and other industrial control systems requiring precise 0-0.2 MPa measurement.

Features

0 to 0.2 MPa (0 to 2 bar) pressure measurement range
Standard 4-20mA two-wire analog output for long-distance, noise-resistant signal transmission
Durable SUS-304 stainless steel body with G1/4 male threaded process connection
Wide 10-32 VDC loop power supply compatibility
Includes 1-meter integral cable for simplified installation

Out of stock

Get Notified When Available

Description

The PR15C-PA-002 is a piezoresistive pressure transmitter engineered for demanding industrial environments. It converts applied pressure into a proportional 4-20mA current signal, providing inherent noise immunity and compatibility with standard process control instrumentation over extended cable runs. The sensor’s stainless steel construction and robust sealing ensure reliable performance in hydraulic, pneumatic, and general process monitoring applications.

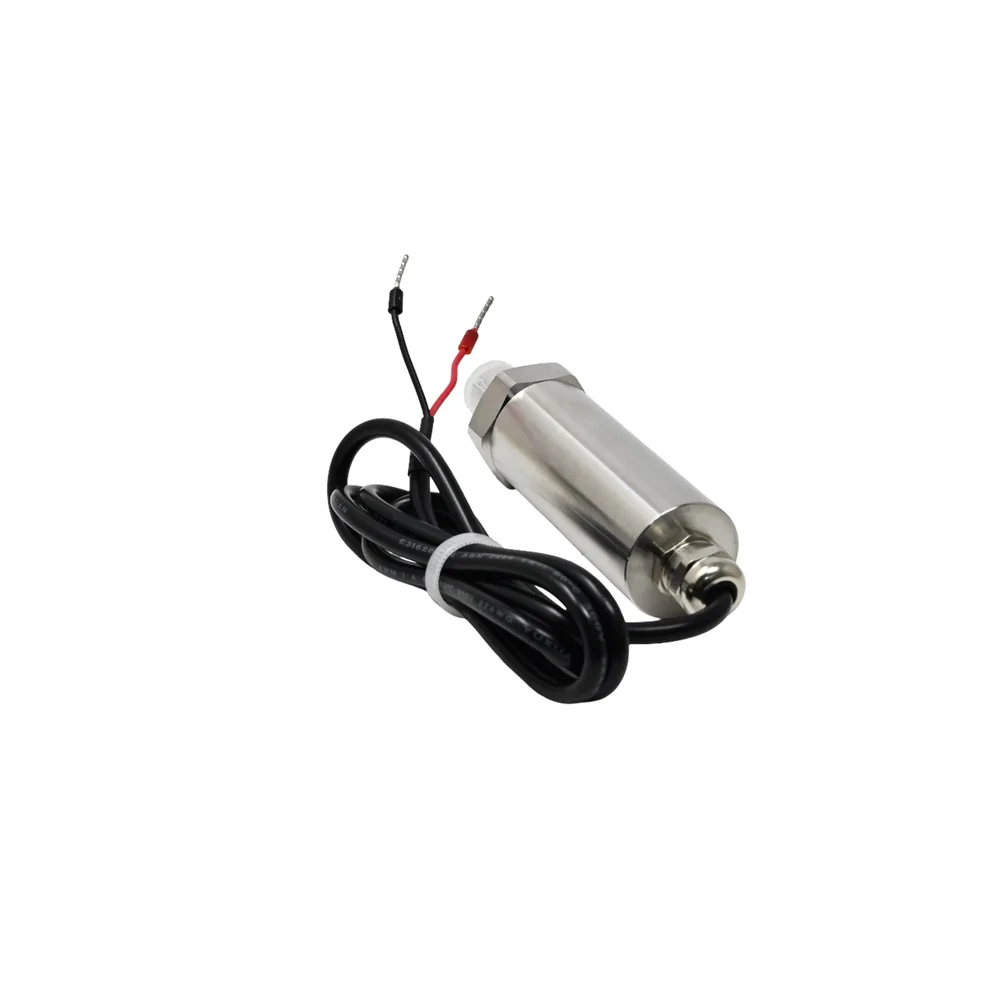

This unit is supplied with a 1-meter pre-attached cable, minimizing installation time and potential wiring errors. Its compact form factor (30mm diameter, 116mm length) allows for integration into space-constrained systems. The transmitter operates on a standard two-wire loop, where the same pair carries both the power supply (10-32VDC) and the output signal, simplifying system design.

Key Features

Industrial-Grade Sensing: Delivers high-accuracy, stable pressure measurement with excellent long-term repeatability.
Robust Mechanical Design: SUS-304 stainless steel housing and diaphragm provide corrosion resistance and durability in harsh environments.
Standard Process Interface: G1/4 male thread ensures secure, leak-free installation into standard ports and manifolds.
Simplified Wiring: Integrated 1-meter cable eliminates the need for separate field wiring terminations, reducing installation cost and complexity.
Wide Supply Voltage Range: Supports 10 to 32 VDC loop power, compatible with a broad array of industrial power supplies and PLC analog input modules.
Linear Current Output: 4-20mA output provides a linear representation of the 0-0.2 MPa pressure range, with 4mA corresponding to 0 MPa and 20mA to 0.2 MPa.

Applications

Hydraulic system pressure monitoring and control
Pneumatic line and compressor outlet pressure regulation
HVAC system duct static pressure and fan control
Industrial process control and fluid handling systems
Pump and valve performance monitoring

Technical Specifications

Manufacturer Part Number	PR15C-PA-002
Pressure Range	0 to 0.2 MPa (0 to 2 bar)
Output Signal	4-20 mA (2-wire)
Supply Voltage	10 to 32 VDC
Process Connection	G1/4 Male Thread
Cable Length	1 meter
Body Material	Stainless Steel (SUS-304)
Length (Body)	116 mm
Diameter (Body)	30 mm
Weight	207 g

Frequently Asked Questions

What is the wiring diagram for this 4-20mA pressure sensor?

This is a standard two-wire transmitter. Connect the positive (+) supply wire (10-32VDC) to the sensor's red wire, and connect the sensor's black wire to your PLC or receiver's analog input positive terminal. The receiver's input negative terminal connects back to the power supply negative to complete the loop. The 4-20mA signal is measured across the receiver's input terminals.

Can I use this sensor with a 24V PLC analog input module?

Yes. The sensor's 10-32 VDC supply range is fully compatible with standard 24V industrial PLC systems. Ensure your PLC's analog input channel is configured to accept a 4-20mA current signal. The sensor will draw its operating power from the loop, and the current will vary linearly with pressure from 4mA (0 MPa) to 20mA (0.2 MPa).

Is the G1/4 thread compatible with NPT fittings?

No, G1/4 (BSPP) and 1/4" NPT are different thread standards and are not directly compatible. Using them together may cause leaks or damage. You will need a suitable adapter (e.g., G1/4 male to 1/4" NPT female) for proper connection to NPT ports. Ensure the adapter is rated for the system's pressure.

What is the media compatibility of this pressure sensor?

The sensor utilizes a stainless steel (SUS-304) wetted diaphragm and housing, making it compatible with a wide range of media including water, oils, hydraulic fluids, and inert gases. It is not recommended for use with highly corrosive or oxidizing media without consulting the manufacturer for specific material compatibility data.
