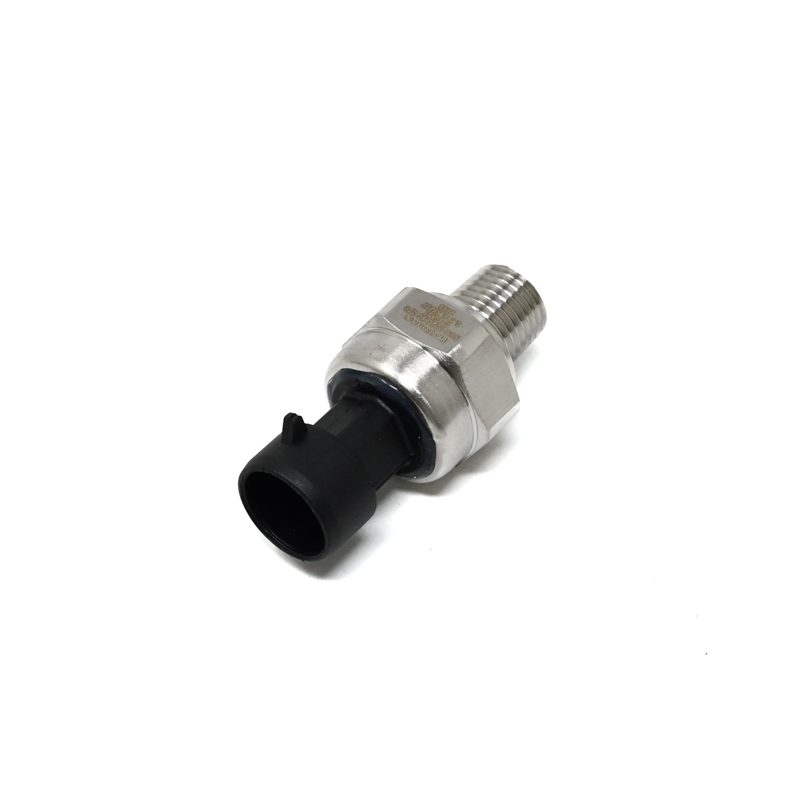

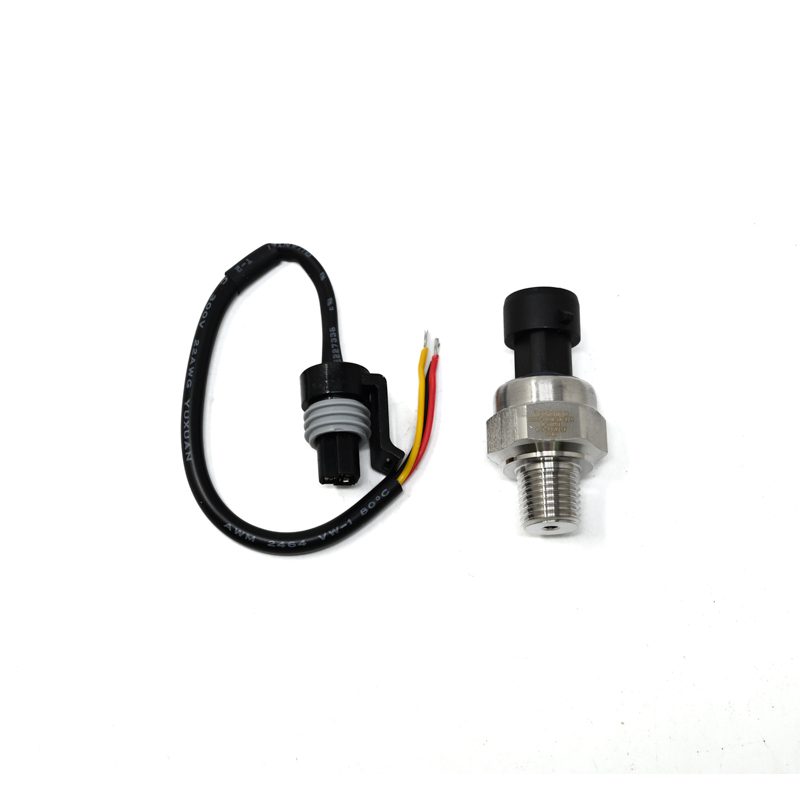

Pro-Range PR12-P120 Pressure Transducer 0-60psi, 0.5-4.5V Output, NPT1/4 Thread
The Pro-Range PR12-P120-60-1/4 is a compact pressure transducer delivering a 0.5-4.5V analog output for 0-60 psi pressure measurement, compatible with 5V logic systems like Arduino, Raspberry Pi, and industrial PLCs for fluid and pneumatic system monitoring.
Features
- 0 to 60 psi pressure measurement range with high accuracy and stability.
- 0.5 to 4.5V ratiometric analog output signal (requires 5V DC supply).
- NPT 1/4″ male thread for secure installation in pneumatic and hydraulic lines.
- Compact, space-saving design suitable for tight integration into control systems.
- Fast response time for real-time pressure monitoring and feedback loops.
Out of stock
The Pro-Range PR12-P120 pressure transducer utilizes a robust internal strain gauge sensing element to convert applied pressure into a precise linear voltage signal. Its ratiometric 0.5-4.5V output provides a reliable interface for microcontrollers and data acquisition systems, scaling directly with the supply voltage for improved noise immunity.
Engineered for durability in industrial environments, the sensor features a stainless steel housing and sensing diaphragm capable of withstanding typical media like air, water, and compatible oils. Its NPT 1/4″ threaded port ensures a leak-proof connection for integration into pipelines, manifolds, and test benches.
Additional Information
| Weight | 0.098 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
