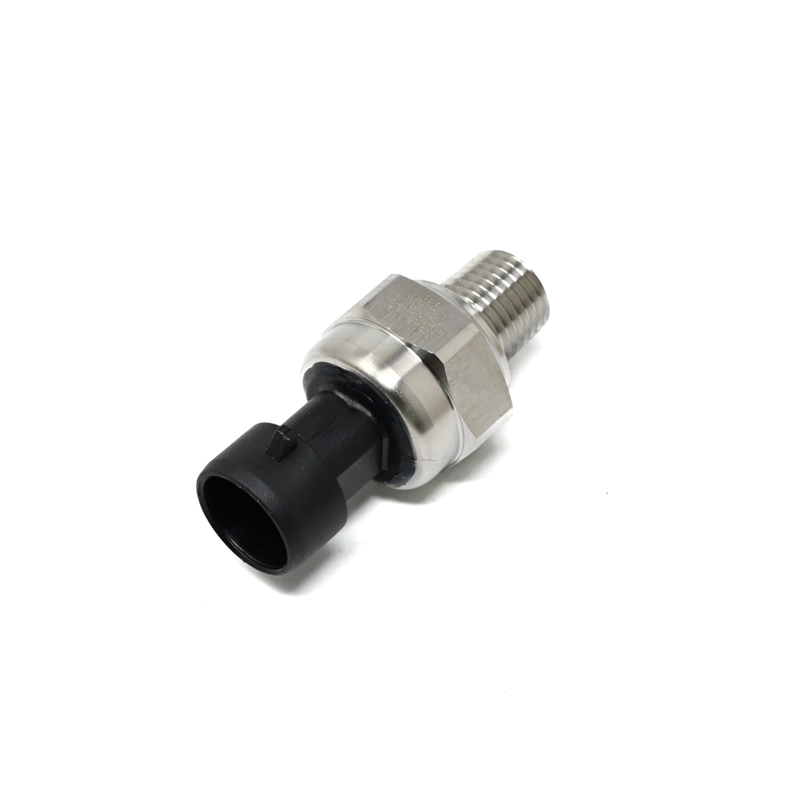

Pro-Range PR12-P120 Pressure Transducer 0-150 psi, 0.5-4.5V Output, NPT1/4 Thread

Name: Pro-Range PR12-P120 Pressure Transducer 0-150 psi, 0.5-4.5V Output, NPT1/4 Thread
Brand: Pro-Range
SKU: SENS-2270
Price: 929.00 INR
Availability: OutOfStock

₹929.00 (Inclusive of all taxes)

Out of Stock

The Pro-Range PR12-P120 is a compact pressure transducer delivering a 0.5–4.5V ratiometric output signal for precise measurement of pressures up to 150 psi. Featuring an NPT1/4 threaded port, it is engineered for direct integration into pneumatic systems, industrial automation, and test & measurement setups requiring reliable low-to-mid pressure monitoring.

Features

0–150 psi Measurement Range: Accurately monitors low-to-mid pressure levels in pneumatic and hydraulic systems.
0.5–4.5V Ratiometric Output: Provides a linear voltage signal proportional to applied pressure with a standard 5V DC supply.
NPT1/4 Threaded Port: Ensures a secure, leak-resistant connection for industrial piping and manifold installations.
Compact & Durable Housing: Space-saving stainless steel construction built for reliable performance in demanding environments.
High Accuracy & Fast Response: Delivers precise readings with minimal lag for real-time system control and monitoring.

Out of stock

Get Notified When Available

Description

The PR12-P120 pressure transducer utilizes a high-stability sensing element to convert applied pressure into a precise analog voltage signal. Its ratiometric 0.5–4.5V output simplifies interfacing with microcontrollers, PLC analog inputs, and data acquisition systems, requiring only a stable 5V DC excitation voltage.

Engineered with a robust stainless steel body and an NPT1/4 male threaded port, the sensor is designed for direct installation into pressurized systems with a standard sealant. Its compact form factor and reliable performance make it suitable for continuous operation in industrial automation, HVAC pressure monitoring, fluid power systems, and automotive testing applications.

Key Features

Wide Pressure Sensing Range: Measures from 0 up to 150 psi (approximately 10.3 bar) with high linearity.
Ratiometric Voltage Output: Generates a linear 0.5V (at zero pressure) to 4.5V (at full scale) signal when powered by 5V DC.
Industrial-Grade Threaded Connection: Features a standard NPT 1/4-inch male thread for secure, leak-proof system integration.
Robust Stainless Steel Construction: The housing provides excellent durability and resistance to vibration and corrosion.
High Overpressure Capability: Built to withstand pressure spikes beyond its rated range for enhanced system safety.
Fast Dynamic Response: Low internal damping ensures quick tracking of pressure changes for real-time control.
Temperature Compensated: Internal compensation minimizes output drift across a specified operating temperature range.
Optimized Performance-to-Cost Ratio: Delivers reliable industrial-grade measurement in a compact, high-value package.

Applications

Industrial Pneumatic System Monitoring: Precise pressure feedback for air compressors, actuators, and control valves.
HVAC Duct Static Pressure Measurement: Monitoring airflow and filter status in heating, ventilation, and air conditioning systems.
Hydraulic Test Benches & Power Units: Providing accurate pressure readings for fluid power system development and maintenance.
Automotive Brake Line & Tire Pressure Testing: Integration into diagnostic equipment and performance monitoring setups.
Process Control & Automation: Real-time pressure sensing in manufacturing lines, packaging machinery, and liquid dispensing systems.

Technical Specifications

Manufacturer Part Number	PR12-P120-150-1/4
Pressure Range	0 – 150 psi
Output Signal	0.5 – 4.5 V (Ratiometric, 5V Supply)

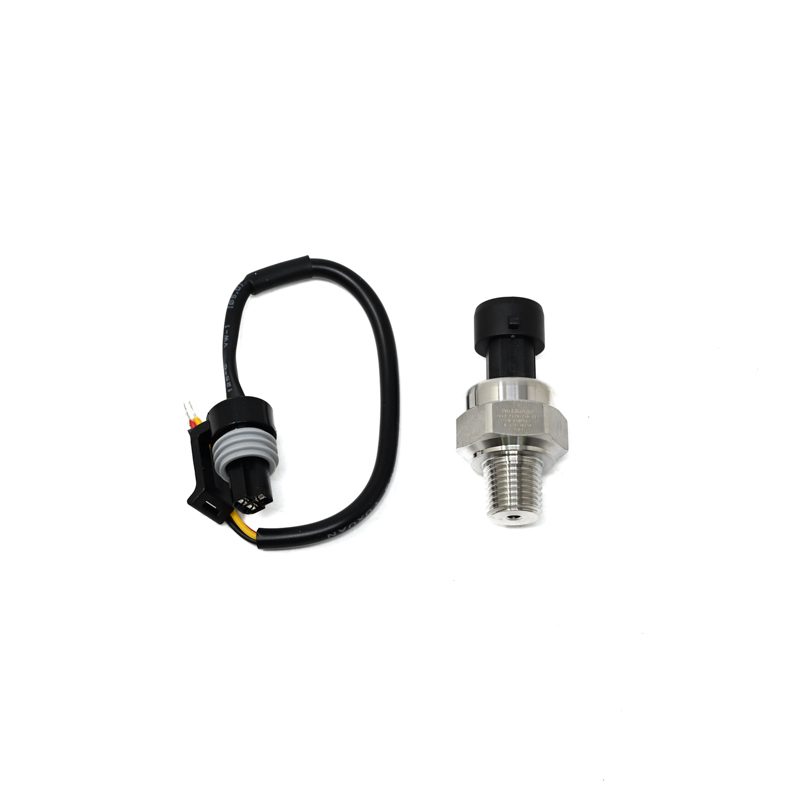

Electrical Connection	3-pin wire lead (Vcc, GND, Signal)
Supply Voltage	5 V DC (±0.25V typical)
Thread Type	NPT 1/4" Male
Body Material	Stainless Steel
Accuracy	±0.5% F.S. (typical)
Operating Temperature	-20°C to +85°C (typical)
Media Compatibility	Air, non-corrosive gases, water, hydraulic fluids
Response Time	< 5 ms
Shipping Weight	0.098 kg
Shipping Dimensions	8 × 4 × 4 cm

Frequently Asked Questions

What is the required supply voltage for the 0.5–4.5V output signal?

The transducer's ratiometric output is designed for a stable 5V DC supply. The output voltage will scale linearly from 0.5V at zero pressure to 4.5V at the full 150 psi pressure. Ensure your power source provides a clean, regulated 5V (±0.25V) for accurate readings.

How do I interface this transducer with an Arduino or PLC?

Connect the sensor's Vcc and GND wires to a stable 5V power source. The signal wire outputs an analog voltage (0.5–4.5V) which can be read directly by an Arduino's analog input pin (A0-A5) or a PLC's 0-5V analog input module. Use the map() function in code to convert the ADC reading to pressure units.

Is the NPT1/4 thread suitable for liquid pressure measurement?

Yes, the stainless steel construction and NPT1/4 port are compatible with water and non-corrosive hydraulic fluids. For installation, apply a suitable thread sealant (e.g., PTFE tape or liquid thread sealant) to the male threads to ensure a leak-proof connection. Ensure the media is within the sensor's specified compatibility range.

What is the accuracy and response time of this pressure transducer?

The PR12-P120 offers a typical accuracy of ±0.5% of full scale (150 psi) and a fast response time of less than 5 milliseconds. This combination provides precise, real-time pressure feedback suitable for dynamic system control, process monitoring, and data logging applications.
