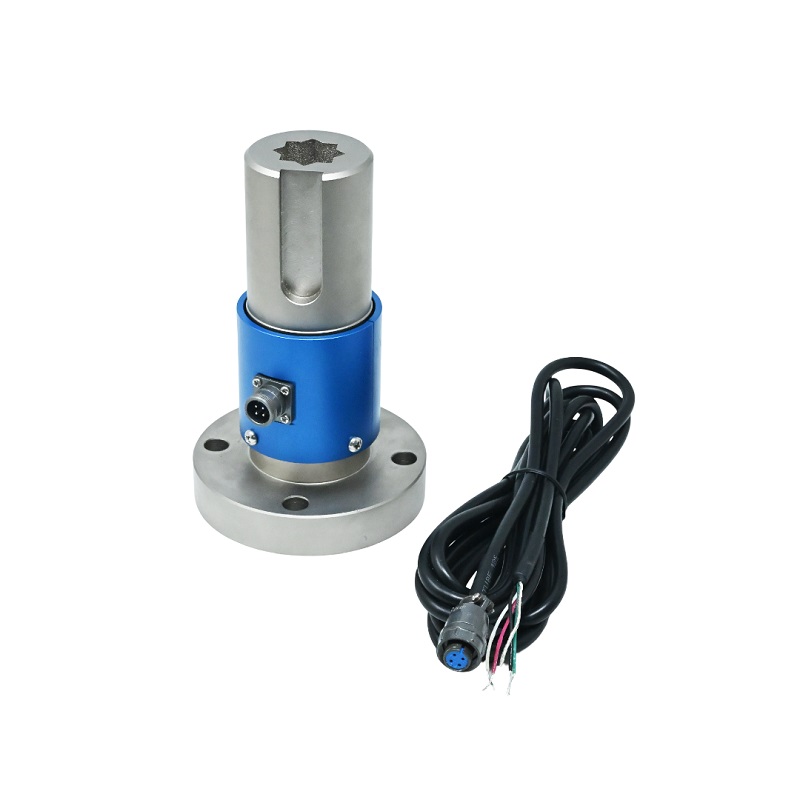

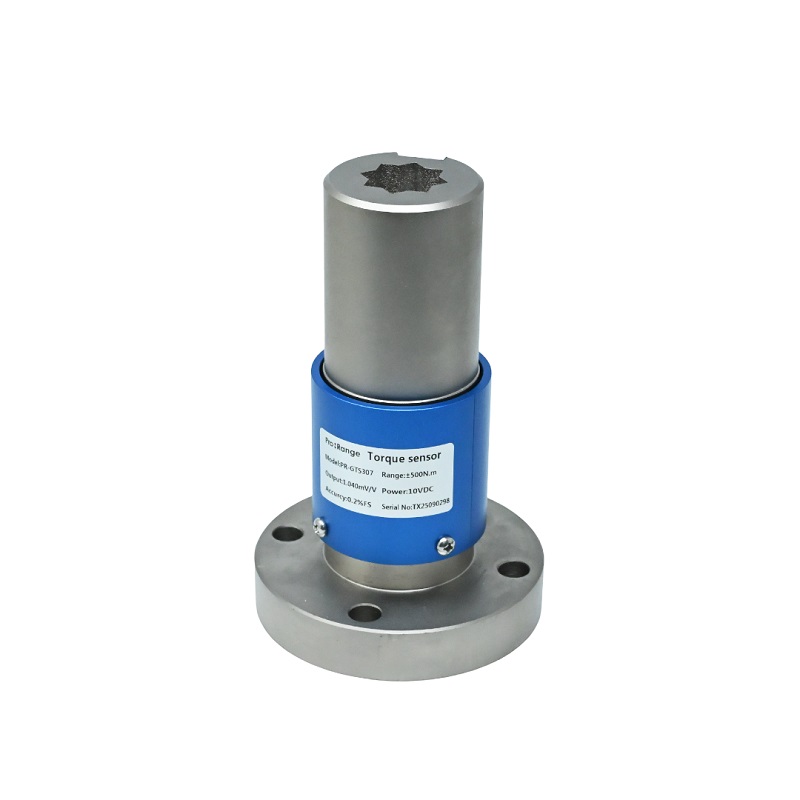

Pro-Range GTS307 0.5kN Static Torque Sensor, ±0.2%F.S, 1.5±0.1mV/V, 10VDC

Name: Pro-Range GTS307 0.5kN Static Torque Sensor, ±0.2%F.S, 1.5±0.1mV/V, 10VDC
Brand: Pro-Range
SKU: SENS-3978
Price: 22289.00 INR
Availability: OutOfStock

₹22,289.00 (Inclusive of all taxes)

Out of Stock

The Pro-Range GTS307 is a high-precision static torque sensor designed for accurate measurement up to 0.5 kN·m. It features a robust stainless steel and aluminum alloy construction with IP65 protection, delivering a stable 1.5±0.1mV/V analog output signal for seamless integration into industrial automation, test benches, and laboratory calibration systems.

Features

High-precision static torque measurement with ±0.2% F.S. accuracy
Rugged stainless steel and aluminum alloy body with IP65 environmental protection
Standardized 1.5±0.1mV/V analog output for easy signal conditioning
Wide operating temperature range from -20°C to +75°C
Flange and keyed shaft connections for secure mechanical installation

Out of stock

Get Notified When Available

Description

The GTS307 static torque sensor utilizes precision strain gauge technology bonded to a high-strength alloy structure to provide accurate and repeatable torque measurements in static or low-speed rotational applications. Its robust design ensures excellent long-term stability and resistance to mechanical overload.

Featuring IP65 ingress protection, the sensor is shielded against dust and water jets, making it suitable for demanding industrial environments. The integrated signal conditioning provides a low-noise, ratiometric mV/V output proportional to the applied torque, which can be easily interfaced with standard data acquisition systems, PLCs, or instrumentation amplifiers.

Key Features

High-accuracy torque measurement up to 0.5 kN·m with ±0.2% F.S. full-scale accuracy.
Engineered with stainless steel and aluminum alloy for superior strength and long-term measurement stability.
IP65-rated housing provides reliable protection against dust ingress and water jets.
Provides a standardized 1.5±0.1mV/V analog output signal for straightforward system integration.
Wide operating temperature range from -20°C to +75°C ensures performance in varied climates.
Excellent repeatability of ±0.1% F.S. for consistent measurement results.
Flange and keyed shaft mechanical interface allows for secure and precise installation.
Optimized performance-to-cost ratio for industrial testing and calibration applications.

Applications

Motor and servo drive calibration and performance testing.
Static torque verification in assembly line tools and robotic end-effectors.
Laboratory research and development for mechanical power transmission systems.
Quality control testing for pumps, gearboxes, and rotary actuators.
Integration into industrial test benches and dynamometers.

Technical Specifications

Model Number	GTS307
Measurement Type	Static Torque Sensor
Rated Torque Capacity	0.5 kN·m
Full-Scale Accuracy	±0.2% F.S.
Repeatability	±0.1% F.S.
Sensitivity (Rated Output)	1.5 ± 0.1 mV/V
Excitation Voltage	5 to 10 V DC
Input Resistance	350 Ω ± 20 Ω
Output Resistance	350 Ω ± 10 Ω
Response Time	100 µs
Operating Temperature	-20°C to +75°C
Ingress Protection (IP)	IP65
Housing Material	Stainless Steel & Aluminum Alloy
Sensor Length	155 mm
Sensor Width	80 mm
Weight	2873 g

Frequently Asked Questions

What is the excitation voltage range for the GTS307 torque sensor?

The GTS307 requires a DC excitation voltage between 5V and 10V. The output signal is ratiometric, meaning the mV/V sensitivity (1.5±0.1mV/V) is proportional to this supply voltage, so a stable, low-noise power source is recommended for optimal accuracy.

How do I interface the sensor's mV/V output with a data acquisition system?

The sensor provides a low-level analog output of 1.5mV per volt of excitation. To read this signal, you will need a precision instrumentation amplifier or a data acquisition module with a high-resolution analog input capable of measuring small millivolt signals. Ensure your system can handle differential measurements if noise is a concern.

Is this sensor suitable for dynamic or high-speed rotational applications?

No, the GTS307 is specifically designed for static torque measurement or very low-speed rotational applications. Its 100 µs response time is optimized for detecting steady-state torque, not rapid fluctuations. For dynamic torque measurement, a rotary torque sensor with slip rings or wireless telemetry would be required.

What mounting method does the GTS307 use?

The sensor features a flange and keyed shaft connection for secure mechanical installation. This design ensures precise alignment and prevents slippage under load, making it ideal for integration into motor couplings, drive shafts, or test fixtures where reliable torque transfer is critical.
