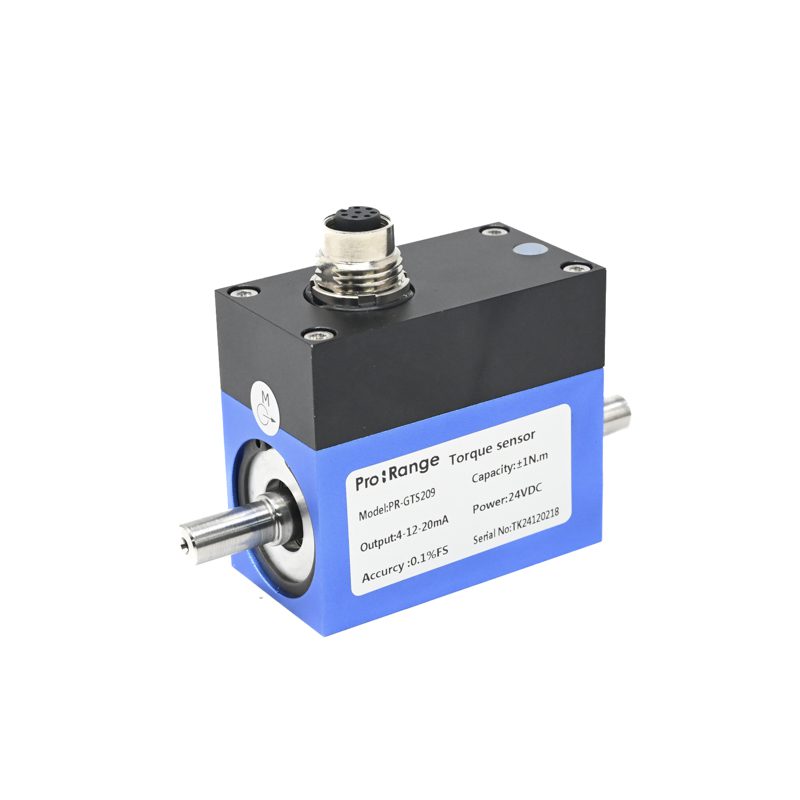

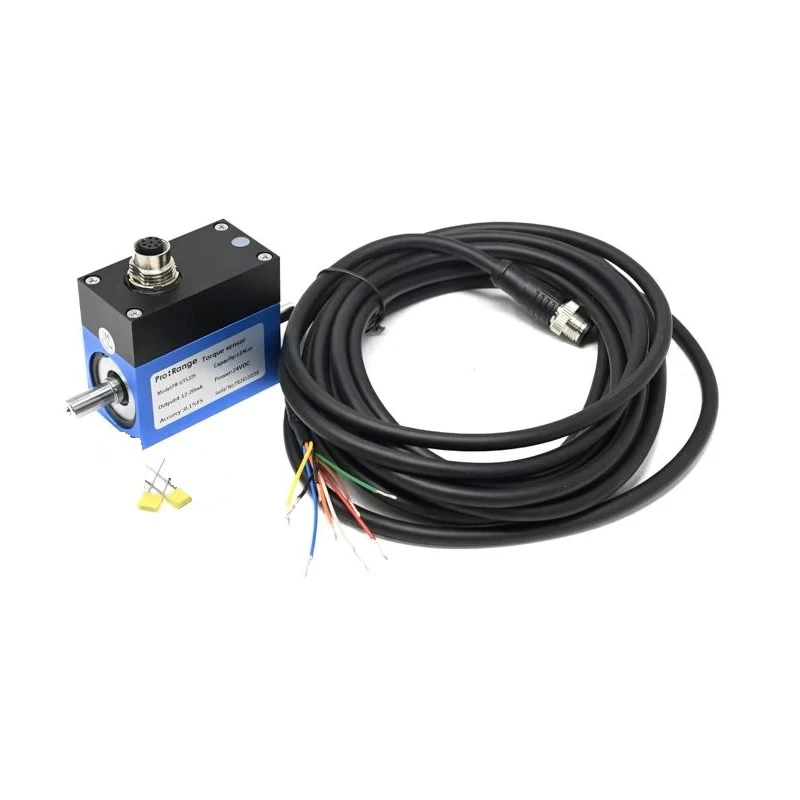

Pro-Range GTS209 Dynamic Torque Sensor 1Nm 16000RPM ±0.2% F.S - 4-20mA Output
The Pro-Range GTS209 is a high-precision, non-contact dynamic torque sensor designed for industrial monitoring and control systems. It provides accurate measurement of torque and rotational speed up to 1 Nm and 16,000 RPM, with a standard 4-20mA analog output compatible with PLCs, DAQs, and process controllers.
Features
- Non-contact optical measurement principle for zero mechanical wear and long-term reliability.
- Measures dynamic torque up to 1 Nm with a high rotational speed capability of 16,000 RPM.
- High accuracy of ±0.2% of Full Scale (F.S.) for precise process monitoring.
- Standard 4-20mA current loop output for robust industrial signal transmission.
- Constructed with a 17-4PH stainless steel optical shaft and aluminum alloy housing for durability.
Out of stock
The GTS209 dynamic torque sensor utilizes a non-contact optical sensing mechanism to measure torque and rotational speed in both forward and reverse directions. This design eliminates mechanical wear, ensuring consistent performance and a long operational lifespan. The sensor is engineered for integration into motor test stands, powertrain analysis systems, and industrial automation where precise torque monitoring is critical.
Operating from a 12-24V DC supply, it delivers a stable 4-20mA analog output signal proportional to the measured torque. The robust construction, featuring a hardened 17-4PH stainless steel shaft and an aluminum alloy shell, provides excellent resistance to environmental factors and mechanical stress, supporting reliable operation in demanding industrial settings.
Additional Information
| Weight | 0.916 kg |
|---|---|
| Dimensions | 22 × 19 × 10 cm |
