Pro-Range GML642 Force Washer Sensor 50kN ±0.5% F.S. - 1.5±5% mV/V Output

Name: Pro-Range GML642 Force Washer Sensor 50kN ±0.5% F.S. - 1.5±5% mV/V Output
Brand: Pro-Range
SKU: SENS-3999
Price: 20879.00 INR
Availability: OutOfStock

₹20,879.00 (Inclusive of all taxes)

Out of Stock

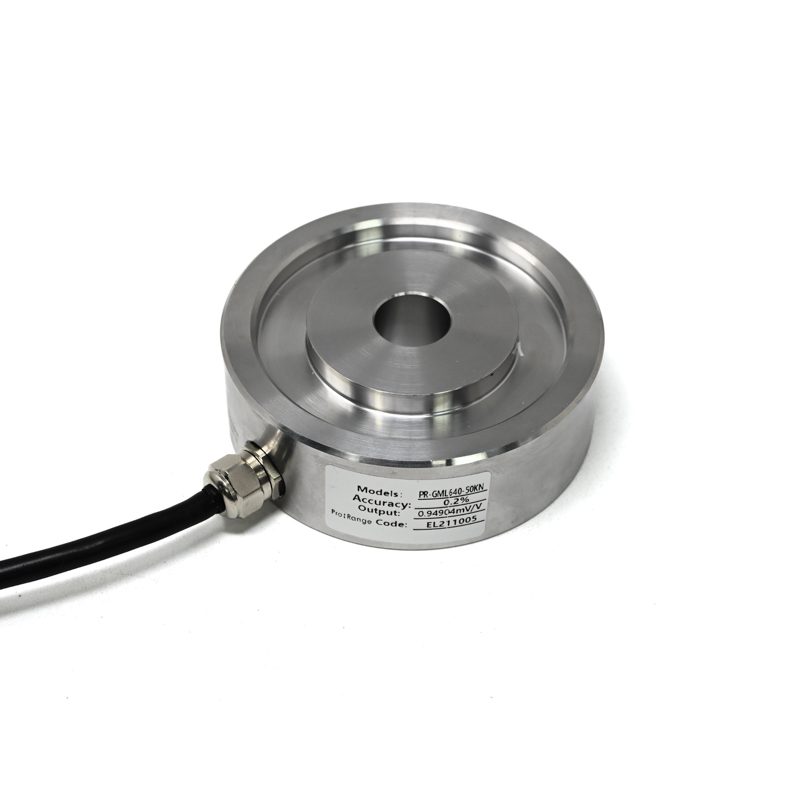

The Pro-Range GML642 is a high-precision stainless steel force washer sensor (load cell) rated for 50kN, featuring a compact circular design for confined-space installations. It provides a 1.5±5% mV/V analog output compatible with standard instrumentation amplifiers and data acquisition systems for industrial force measurement and control.

Features

High-capacity 50kN (approx. 11,240 lbf) force measurement with ±0.5% F.S. accuracy.
Robust SUS-304 stainless steel construction ensures long-term durability and overload resistance.
Compact circular washer design facilitates installation in tight spaces and custom assemblies.
IP66-rated enclosure provides reliable protection against dust and water jets.
Wide compensated operating temperature range from -20°C to +80°C.

Out of stock

Get Notified When Available

Description

The GML642 force washer sensor utilizes a precision strain gauge circuit bonded to a high-strength stainless steel body. When force is applied, the resulting strain produces a millivolt-per-volt (mV/V) output signal proportional to the load. This analog output is stable and linear across the specified temperature range, making it suitable for integration into PLCs, industrial scales, and test stands.

Engineered for demanding environments, its IP66 rating ensures reliable operation where dust and directed water sprays are present. The sensor’s through-hole design allows for straightforward mounting via bolts or studs, making it an ideal component for force monitoring in structural testing, bolt tensioning, and heavy machinery load monitoring applications.

Key Features

High-precision strain gauge technology with ±0.5% F.S. non-linearity, hysteresis, and repeatability error.
Rated output of 1.5 mV/V ±5% for consistent signal scaling with 9-15 VDC excitation.
All-welded SUS-304 stainless steel housing provides excellent corrosion resistance and mechanical strength.
IP66 protection rating safeguards internal electronics from dust ingress and powerful water jets.
Wide operating temperature range of -20°C to +80°C with internal temperature compensation.
High overload capacity (typically 150% of rated load) for enhanced durability in dynamic applications.
Compact and space-saving circular form factor with a customizable inner hole diameter.
Low-profile design is ideal for integration into presses, bolted joints, and force-limited assemblies.

Applications

Industrial bolt tension monitoring and pre-load measurement in structural engineering.
Force feedback and overload protection in hydraulic presses and material testing machines.
Load monitoring for heavy machinery, crane hooks, and hoist safety systems.
Process control and weighing systems in manufacturing and assembly lines.
Research and development applications requiring precise static and dynamic force measurement.

Technical Specifications

Manufacturer Part Number	GML642
Item Type	Force Washer Sensor / Load Cell
Rated Load Capacity	50 kN
Accuracy (Error)	≤ ±0.5% of Full Scale (F.S.)
Rated Output	1.5 mV/V ±5%
Recommended Excitation Voltage	9 - 15 VDC
Zero Balance	±1% F.S.
Input Resistance	350 Ω ±3.5 Ω (Typical)
Output Resistance	350 Ω ±3.5 Ω (Typical)
Insulation Resistance	≥ 2000 MΩ (50 VDC)
Operating Temperature Range	-20°C to +80°C
Compensated Temperature Range	-10°C to +60°C
Safe Overload	150% of Rated Load
Ultimate Overload	200% of Rated Load
Ingress Protection (IP) Rating	IP66
Housing Material	SUS-304 Stainless Steel
Cable / Connector	4-wire shielded cable (standard length typically 3M)

Frequently Asked Questions

What is the excitation voltage requirement for the GML642 force sensor?

The GML642 force washer sensor requires a DC excitation voltage between 9 and 15 volts. Operating within this range ensures the rated output of 1.5 mV/V and maintains specified accuracy. A stable, regulated power supply is recommended for optimal performance.

How is the sensor's output signal interpreted?

The sensor provides a millivolt-per-volt (mV/V) analog output. With a 10 VDC excitation and a 50kN load, the output voltage will be approximately 15 mV. This signal must be connected to a compatible instrumentation amplifier, signal conditioner, or data acquisition module with a high-impedance differential input for accurate measurement.

Can this sensor be used for dynamic or impact force measurements?

While primarily designed for static and quasi-static force measurement, its robust construction and high overload capacity allow it to handle some dynamic loads. For high-frequency impact measurements, consult the sensor's natural frequency specifications and consider using a sensor specifically rated for dynamic applications.

What mounting considerations are important for accurate measurement?

Ensure the mounting surfaces are flat, parallel, and clean to avoid bending moments or side loads that can induce measurement error. The force must be applied axially through the sensor's center. Use appropriate washers and follow recommended torque values for mounting bolts to prevent damage.

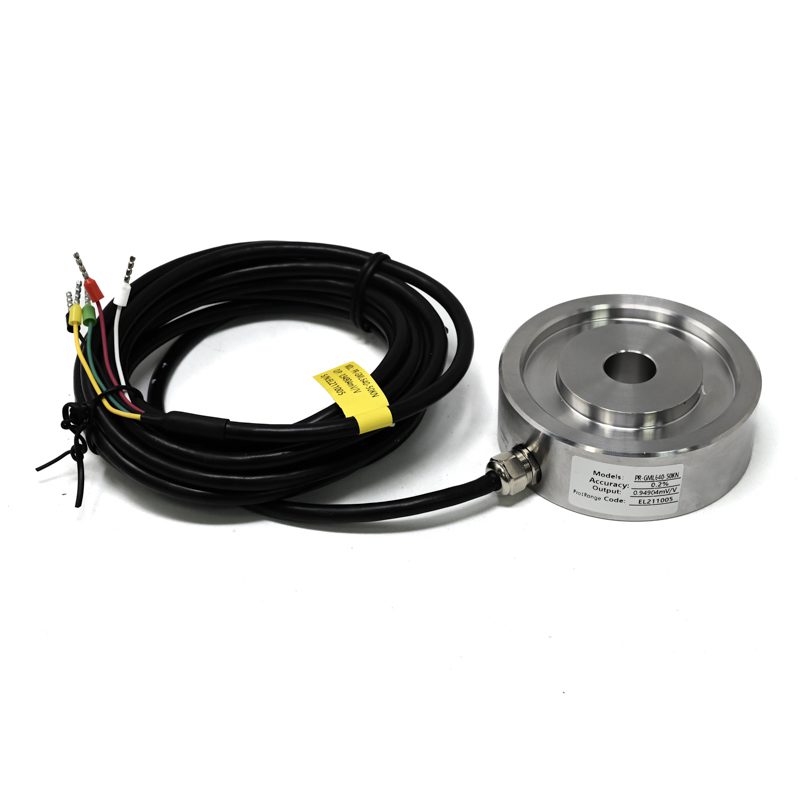

Is the cable included, and what is its length?

Yes, the sensor includes an integral, shielded 4-wire cable. The standard cable length is typically 3 meters, providing flexibility for installation. The cable wires are color-coded (Red: Excitation+, Black: Excitation-, Green: Signal+, White: Signal-) for straightforward connection to signal conditioners.
