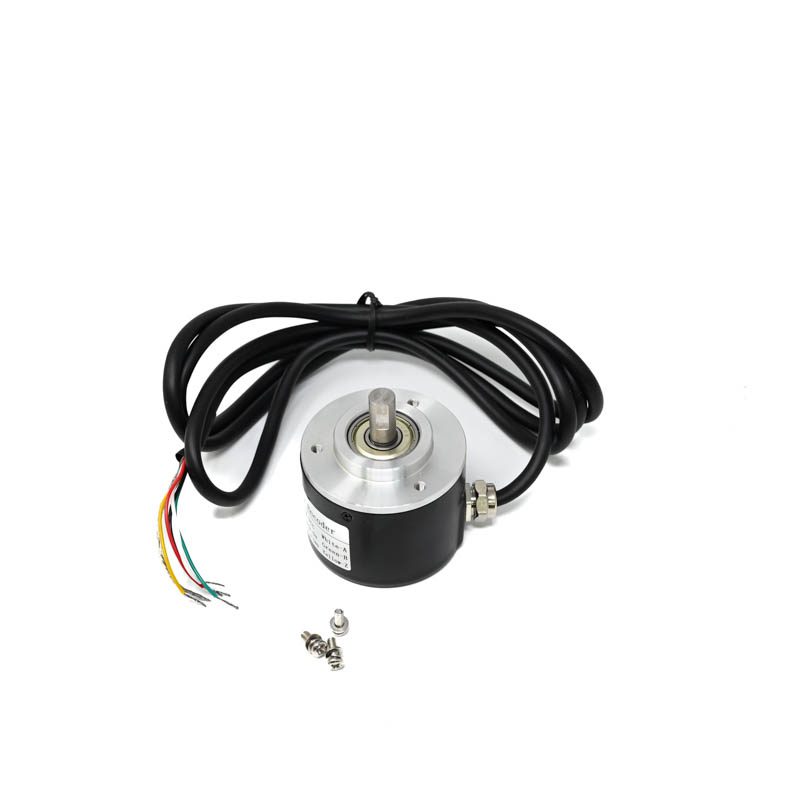

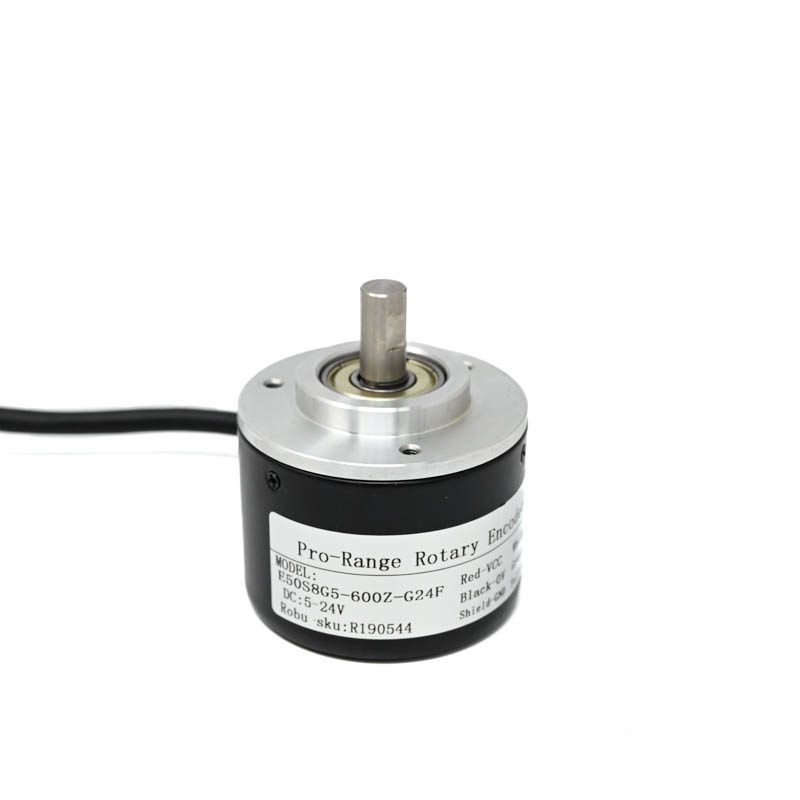

Pro-Range E50S8G5-600Z-G24F Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 600 PPR
The Pro-Range E50S8G5-600Z-G24F is a 50mm diameter photoelectric incremental encoder delivering 600 pulses per revolution (PPR) via ABZ three-channel output. It operates from 5-24V DC, making it compatible with a wide range of industrial PLCs, motor drives, and motion control systems for precise position and speed feedback.
Features
- 600 PPR resolution for accurate angular position and speed measurement.
- ABZ three-channel (A, B, Z) quadrature output with index pulse for reliable signal integrity.
- Wide 5-24V DC operating voltage range for flexible integration into 5V, 12V, or 24V logic systems.
- Compact 50mm diameter housing with a 6mm x 15mm shaft for straightforward mechanical mounting.
- Photoelectric sensing principle ensures high accuracy and long-term reliability with minimal mechanical wear.
Out of stock
The Pro-Range E50S8G5-600Z-G24F encoder utilizes a photoelectric sensing mechanism, where a light source and photodetector read a patterned disk to generate precise digital pulses. This method provides high-resolution feedback with excellent repeatability and resistance to environmental factors like dust and vibration when properly sealed.
Featuring ABZ three-channel output, the encoder provides two 90-degree phase-shifted square waves (A and B) for direction detection and a once-per-revolution index pulse (Z) for homing. The wide 5-24V supply range allows direct interface with microcontroller ADCs, industrial PLC digital inputs, and dedicated encoder counters without additional signal conditioning in many applications.
Additional Information
| Weight | 0.214 kg |
|---|---|
| Dimensions | 9 × 9 × 6 cm |
